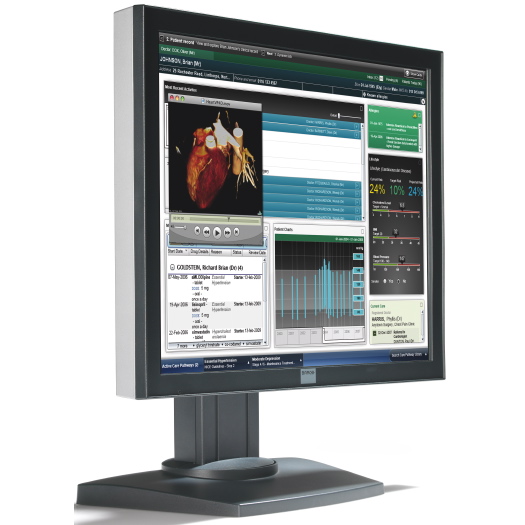

1MP Barco Color DICOM Clinical Review Display – MDRC-1119 / K9301800A
The MDRC-1119 is a 1 MegaPixel clinical review display for hospital-wide viewing of clinical data and images. Building on Barco’s know-how and experience in healthcare imaging, the multi-purpose 19-inch display brings reliable, DICOM-compliant images to a broad palette of imaging applications, including the EMR system.
Call for Replacement Option
MASTER DISTRIBUTOR
24X7 SUPPORT
COMPETITIVE PRICING
SAME DAY SHIPPING
VALUABLE CONSULTATION
Consistent DICOM images, anywhere, anytime
The MDRC-1119’s high-quality LCD panel presents medical images with better contrast, higher brightness and a wider viewing angle than conventional computer monitors. Advanced BLOS technology ensures fast power-up and continuous LCD backlight stability, resulting in long-term image consistency. And thanks to the integrated DICOM Part 14 Look-Up Table, the MDRC-1119 is DICOM-compliant “out-of-the-box”.
Professional LCD quality
Presents medical images and patient data with more accurate grayscales, better contrast (up to 1300:1) and a wider viewing angle than conventional computer monitors.
Approved for medical use
Complies with international medical safety and emission standards (such as CE, UL, etc.), qualifying the display for use in every area of the hospital.
10-bit DICOM Look-Up Table
Turns the display into an accurate display monitor for viewing medical images.
Backlight Output Stabilization
Ensures fast power-up and continuous LCD backlight stability, resulting in long-term image consistency.
User-friendly Quality Assurance
Accurate DICOM-calibration and Quality Assurance thanks to the Medical QAWeb solution.
Multi-lingual OSD interface
Makes it easy to change the display’s settings in your own language (English, French, German, Spanish, Italian, Dutch, Simplified & Traditional Chinese, Korean, Japanese).
Landscape & portrait orientation
Allows for a desktop organization that best fits your application (clinical images, reports, patient files,…)
Power Saving Mode
Automatically switches the display to ‘sleep mode’ when not being used. This results in markedly reduced energy consumption and increased lifetime of the LCD backlights.
Optional protective front cover
Protects the valuable LCD panel against damage from intensive use and allows safe and easy cleaning.
Optional touch screen interface
Allows the display to be used in as a user-friendly input or control device.
Calibration and QA Software
K5400238 MediCal QAWeb Supplied
Specification
Specifications
| Technology | TFT color LCD |
| Native image resolution | 1280 x 1024 |
| Active screen diagonal | 19″ (483 mm) |
| Active screen area | 14.80″ x 11.85″ (376 x 301 mm) |
| Pixel pitch | 0.294 x 0.294 mm |
| Luminance | 300 cd/m² (max) 180 cd/m² (DICOM calibrated) |
| Contrast ratio | 1300:1 |
| Aspect Ratio | 5:4 |
| Viewing angle | 178°/178° |
| Look up table | 10 bit |
| Response time | (G -G) 8 ms |
| Display functions | Gamma, DICOM |
| Colors | 16.8 million |
| Video Input | DVI, VGA (DB15) |
| USB | 1 upstream, 2 downstream |
| Image stabilization | BLOS (backlight sensor) |
| Touch screen | optional |
| EMC / IEC | EN 60601-1-2; FCC-B; ICES-001; VCCI; KETI; CCC; BSMI |
| Safety | CE EN60601-1; UL 60601-1; c-UL; CCC; KETI; PSE; BSMI |
| Dimensions (physical) | 16.46″ x 13.62″ x 2.76″ (418 x 346 x 70 mm), W x H x D, landscape without pedestal |
| Weight | with stand: 8.5 kg (18.74 lbs) / without stand: 5.5 kg (12.13 lbs) |
| Mounting | VESA 100 |
| Power supply | External DC power supply 90V – 264V (50Hz – 60 Hz) |
| Power consumption | 50 W |
| Operating temperature | 0° – 35°C (32° to 95°F) |
| Humidity | 5% – 90% (no condensation) |
Brochures
White papers:
- 10 reasons to use a medical display system
- Quality assurance of medical displays through an online service
- The DICOM standard
- Why is Softcopy QA important
Options:
CALIBRATION KIT – BARCO LCD SENSOR MKII
Handheld photosensor MKII for LED and CCFL LCDs. B4100035
List Price $599.00 Your price $495.00
What You Get
What You Get:
K9301800A 1MP Color Barco DICOM Clinical Review Display MDRC-1119
