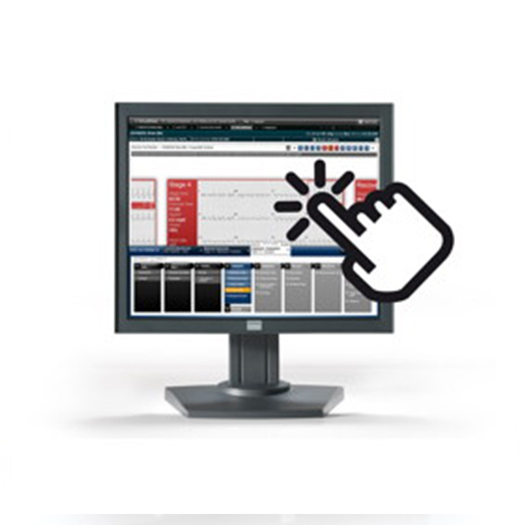

1MP Barco Color DICOM Clinical Review Touch Screen


The MDRC-1119 TS is a 1 MegaPixel clinical review display with touch screen interface. The 19-inch display brings reliable, DICOM-compliant images to a broad palette of imaging applications, including the EMR system.

Consistent DICOM images, anywhere, anytime

The high-quality LCD panel of the MDRC-1119 TS presents medical images with better contrast, higher brightness and a wider viewing angle than conventional computer monitors.

Call for Replacement Option

Advanced Backlight Output Stabilization (BLOS) technology ensures fast power-up and continuous LCD backlight stability, resulting in long-term image consistency.

And thanks to the integrated DICOM Part 14 Look-Up Table, the MDRC-1119 TS is DICOM-compliant “out-of-the-box”.

Touch screen interface
Allows the display to be used in as a user-friendly input or control device.

Professional LCD quality
Presents medical images and patient data with more accurate grayscales, better contrast (up to 1300:1) and a wider viewing angle than conventional computer monitors.

Approved for medical use
Complies with international medical safety and emission standards (such as CE, UL, etc.), qualifying the display for use in every area of the hospital.

10-bit DICOM Look-Up Table
Turns the display into an accurate display monitor for viewing medical images.

Backlight Output Stabilization
Ensures fast power-up and continuous LCD backlight stability, resulting in long-term image consistency.

User-friendly Quality Assurance
Accurate DICOM-calibration and Quality Assurance thanks to the Medical QAWeb solution.

Multi-lingual OSD interface
Makes it easy to change the display’s settings in your own language (English, French, German, Spanish, Italian, Dutch, Simplified & Traditional Chinese, Korean, Japanese).

Landscape & portrait orientation
Allows for a desktop organization that best fits your application (clinical images, reports, patient files,…)

Power Saving Mode
Automatically switches the display to ‘sleep mode’ when not being used. This results in markedly reduced energy consumption and increased lifetime of the LCD backlights.


Screen technology TFT Color LCD
Active screen size (diagonal) 483 mm (19.0″)
Active screen size (H x V) 301 x 376 mm (11.9 x 14.8″)
Aspect ratio (H:V) 5:4
Resolution 1MP (1280 x 1024)
Pixel pitch 0.2940 mm
Color imaging Yes
Gray imaging No
Color support 16.8 million
Viewing angle (H, V) 178°
Uniform Luminance Technology (ULT) No
Per Pixel Uniformity (PPU) No
Ambient Light Compensation (ALC) No
Backlight Output Stabilization (BLOS) Yes
I-Guard No
Maximum luminance 300 cd/m²
DICOM calibrated luminance 180 cd/m²
Contrast ratio 1300:1
Response time (Tr + Tf) 10 ms
Scanning frequency (H; V) 31.5-79.95 kHz; 50-75 Hz
Housing color Dark gray
Video input signals DVI-D Single Link
VGA (DB15)
Video inout terminals Separate H&V sync
Composite sync on H
Sync on Green supported
USB ports 1 upstream, 2 downstream
USB standard 1.1
Power requirements (nominal) 100-250V
Power consumption (nominal) 45W
Power save mode Yes
Power management DVI-DMPM states supported
Power On state
Active-Off state
DPMS states supported
Dot clock 165 MHz
OSD languages English, French, German, Spanish, Italian, Dutch, Simplified Chinese, Taditional Chinese, Japanese, Korean
Dimensions with stand (W x H x D) Landscape: 418 x 535~425 x 223 mm
Dimensions w/o stand (W x H x D) Portrait: 346 x 418 x 70 mm
Landscape: 418 x 346 x 70 mm
Dimensions packaged (W x H x D) 502 x 494 x 294 mm
Net weight with stand 8.7 kg
Net weight w/o stand 6.0 kg
Net weight packaged with stand 11.7 kg
Net weight packaged w/o stand 9.0 kg
Height adjustment range 120 mm
Tilt -0° / +10°
Swivel -45° / +45°
Pivot 90°
Mounting standard VESA (100 mm)
Screen protection NA
Recommended modalities CT, MR, US, DR, CR, NM, Film
Certifications EN 60601-1-2 (2001),EN 55011 (Class B),IEC 61000-3-2,IEC 61000-3-3,IEC 61000-4-2,IEC 61000-4-3,IEC 61000-4-4,IEC 61000-4-5,IEC 61000-4-11,IEC 61000-4-6,IEC 61000-4-8,CE,EN 60601-1 Medical Part 1,FCC B,c-ul,PSE,BSMII,VCCI ,CCC,KCC,CSA c22.2No601.1, UL50501-1
Supplied accessories User manual
Video cables (DVI Single Link, Analog)
Main cables (UK, European (CEBEC/KEMA), USA (UL/CSA; adaptor plug NEMA 5-15P), Chinese (CCC))
USB cable
External power supply
Optional accessories Barco External Medical LCD Display Sensor
QA software MediCal QAWeb
Units per pallet 24
Pallet dimensions (W x H) 800 x 1200 mm
Warranty 3 years




Handheld photosensor MKII for LED and CCFL LCDs. B4100035

List Price $599.00   Your price $495.00


What You Get:

CLINICAL REVIEW DISPLAY 1MP COLOR LCD with TOUCHSCREEN: 1 X MDRC-1119-TS; 1 X Medical QAWeb Agent Software; ALL cables, drivers and accessories; Individual pedestal

SKU: MDRC-1119 TS / K9301801A Categories: , ,
