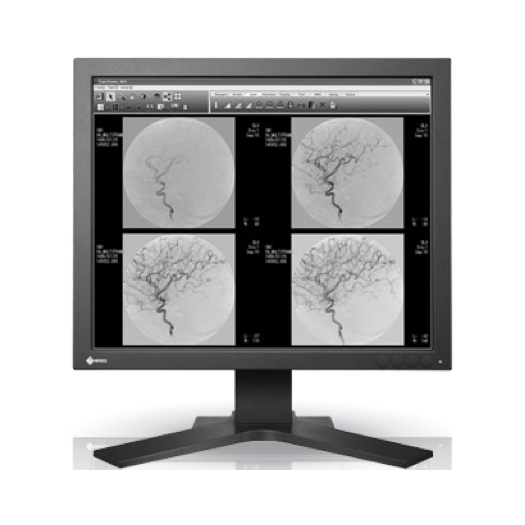

1MP EIZO 19” RadiForce Grayscale Display – SMD 19102 D
1MP 48cm (19″) MONOCHROME LCD MONITOR
This one megapixel monochrome monitor accepts a wide range of current and legacy video, digital and RGB inputs. Its high brightness and contrast, combined with a cost effective design, create the perfect fit for many grayscale modalities and imaging environments.
Call for Replacement Option
MASTER DISTRIBUTOR
24X7 SUPPORT
COMPETITIVE PRICING
SAME DAY SHIPPING
VALUABLE CONSULTATION
Diagnostic Precision with DICOM Part 14 Factory Adjustment
To ensure the most accurate and consistent shadings possible, EIZO carefully measures and sets every grayscale tones on the production line to produce a monitor compliant with DICOM Part 14.
Quick Brightness Stabilization for Instant Viewing
At startup or upon wakeup, the EIZO patented drift correction function quickly stabilizes the brightness level. In addition, a sensor measures the backlight brightness and compensates for brightness fluctuations caused by the ambient temperature and the passage of time.
Wide Range of Input Support
Multiple input signal support, including DVI-I, BNC, D-Sub mini 15 pin, and S-Video, allows for connecting with any legacy or state-of-the-art modality
BNC DVI-I
Customer Assurance with Medical Standards
Meets the strictest medical, safety, and EMC emission standards.
Consistency with DICOM Part 14 Calibration
Calibration compliant with DICOM Part 14 to ensure the most accurate and consistent shadings possible over time.
Mode Selection for Optimum Viewing
Selectable with the front panel buttons, the CAL Switch function allows for various imaging modes of different modalities such as CR, CT, and endoscope images. Furthermore, auto mode settings can be made with the Auto CAL Switch function.
Wide Viewing Angles for Multiple People Use
Wide Viewing angles with minimal color shift when viewed from the side.
Last Image Hold
SMD 19102 DL with a Last Image Hold (LIH) function is specially designed for connecting to legacy radiography systems that do not have an LIH function. The function reduces radiation exposure for patients and radiologists.
Versatile Positioning for Improved Operability
EIZO’s highly versatile stand offers tilt, swivel and a wide height adjustment range enabling you to use the monitor with greater comfort.
Warranty with Safety and Trust
EIZO and its authorized distributors offer a five-year limited warranty.
Specification
| Model Variations | SMD 19102 D: With Stand SMD 19102 DL: With Stand, with Last Image Hold function SMD 19102 C: Without Stand SMD 19102 CP: Without Stand, with Panel Protector |
|---|---|
| Cabinet Color | Anthracite Gray |
| Panel | |
| Type | TFT Monochrome LCD Panel |
| Backlight | CCFL |
| Size | 48 cm / 19″ (481 mm diagonal) |
| Native Resolution | 1280 × 1024 (5:4 aspect ratio) |
| Display Size (H x V) | 376.0 × 301.0 mm |
| Pixel Pitch | 0.294 × 0.294 mm |
| Grayscale Tones | 256 tones |
| Viewing Angles (H / V, typical) | 170°, 170° |
| Brightness (typical) | 1,000 cd/m2 |
| Recommended Brightness for Calibration | 400 cd/m2 |
| Contrast Ratio (typical) | 900:1 |
| Response Time (typical) | 25 ms (On/Off) |
| Video Signals | |
| Input Terminals | DVI-I x 1, D-Sub mini 15 pin x 1, BNC x 4, S-Video x 1 |
| Output Terminals (Loop Through) | BNC (SoG) x 1 |
| Digital Scanning Frequency (H / V) | 31 – 100 kHz / 48 – 85 Hz |
| Analog Scanning Frequency (H / V) | 24 – 100 kHz / 50 -100 Hz |
| Sync Formats | Separate, Composite, Sync-on-Green |
| Power | |
| Power Requirements | AC 100 – 120 V, 200 – 240 V: 50 / 60 Hz |
| Maximum Power Consumption | 58 W |
| Typical Power Consumption | 26 W |
| Power Save Mode | Less than 8 W |
| Power Management | Digital: DVI DMPM, Analog: VESA DPM |
| Sensor | Backlight Sensor |
| Features & Functions | |
| Brightness Stabilization | Yes |
| OSD Languages | English, German |
| Physical Specifications | |
| Net Weight | SMD 19102 D, SMD 19102 DL: 10.7 kg SMD 19102 C: 6.4 kg SMD 19102 CP: 7.0 kg |
| Hole Spacing (VESA Standard) | 100 x 100 mm |
| Environmental Requirements | |
| Degree of Protection | SMD 19102 D, SMD 19102 DL, SMD 19102 C: IP20 SMD 19102 CP: IP22 for front, IP20 |
| Certifications & Standards (Please contact the EIZO group company or distributor in your country for the latest information.) | CE (Medical Device Directive), EN60601-1, UL60601-1, CSA C22.2 No. 601-1, IEC60601-1, FCC-A, RoHS, China RoHS, WEEE, CCC, GOST-R |
| Supplied Accessories | AC power cord, signal cable (DVI-D – DVI-D), Utility Disk (user’s manual) |
| Warranty | Five Years |
Brochures
Brochures
 |
RadiForce G&R-Series 7.67 MB  |
|
SMD 19102 356 KB |
|
RadiForce L&E-Series 8.9 MB |
Manuals
Please note that you must be a registered user to download RadiForce relevant files. If you have not registered, please continue on to our registration page. If you have forgotten your User ID or Password, please send us an e-mail.
| Document | Language | Size | Download |
|---|---|---|---|
| SMD 19102 (English) | English | 2.13 MB | |
| SCD 19102 (English) User’s manual | English | 2.21 MB | |
| ScreenSlicer Ver.1.1.2 Software manual (English) | English | 1.75 MB | |
| SMD 19102 DL User’s manual | English | 2.17 MB | |
EIZO Quality Control supports Macintosh Computers!
EIZO is the only company with built-in QC support for Macintosh computers and workstations. In addition to supporting MS Windows OS, EIZO QC software supports OS X Mountain Lion (10.8), OS X Mavericks (10.9) and OS X Yosemite (10.10) will continue to support the Macintosh platform in the future. See the calibration kit information below.
Options:
Video Cards.
EIZO offers the largest selection of manufacturer support video cards. Nvidia, AMD/ATI or Matrox video cards can be ordered with any EIZO diagnostic monitor. Please ask us if you do not see them listed of a particular display.
Calibration kit
Calibration Kit – Model RadiCS UX1 . American College of Radiology guidelines still recommends the periodic use of a calibration kit to insure that diagnostic integrity is maintained over the life of the monitor. Some states now require the use and documentation of a calibration kit. Do not confuse this device with the front sensors on most diagnostic medical displays. They are not the same.
What You Get
What You Get:
RadiForce 1MP (1280 x 1024),19″ Grayscale LCD Radiology Display, blue tint, adjustable stand, High Brightness 1000 cd/m², High Contrast 900:1, Five (5) Embedded User Defined 10-Bit LUTs, 20,000 hour brightness guarantee to 400 cd/m², Multiple signal inputs (DVI-D,RGB, G,H,V, SoG, Y/C, CVBS), connectivity (DVI, 15 pin-SubD, 4pin-MiniDIN, 3xBNC, 1xBNC), many stored timings, force mode
