Dual Head 3MP Barco Nio High Bright Color including MXRT-6700 - MDNC-3421 / K9602989
Barco Coronis Fusion MDCC-6530 6MP Color LED - MDCC-6530 / K9602943
Single Head Barco 2MP Coronis Color
Barco Coronis MDCC-6530 6MP Color LED Fusion with MXRT-6700 Video Card - MDCC-6530 / K9602978
EIZO 1MP Curator 19" High Brightness LCD Color - EX190-S

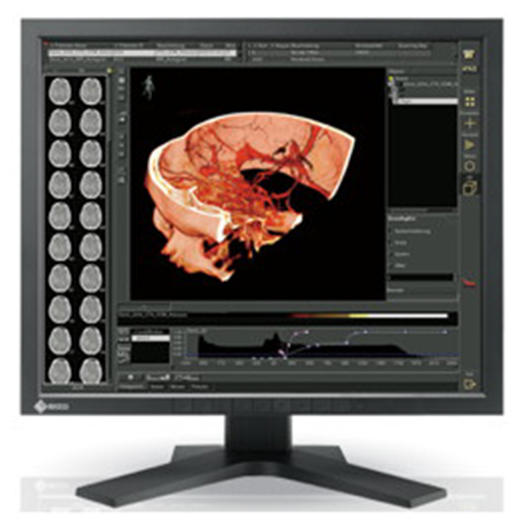

1MP EIZO RadiForce 19” Color Display
Diagnostic Precision with DICOM Part 14 Factory Adjustment
To ensure the most accurate and consistent shadings possible, EIZO carefully measures and sets every grayscale tones on the production line to produce a monitor compliant with DICOM Part 14.
ToneCurve Tuning Utility
ToneCurve Tuning Utility uses the monitor’s 10-bit look-up tables (LUT) for adjustment of grayscale and color tones to the desired values.
Input values into the table or manipulate control points on the graph (number of control points are user selectable â€• 3, 5, 9, 16, 24, 33, or 256).
Wide Viewing Angles for Multiple People Use
Wide Viewing angles with minimal color shift when viewed from the side.
Versatile Positioning for Improved Operability
EIZO’s highly versatile stand offers tilt, swivel and a wide height adjustment range enabling you to use the monitor with greater comfort.
Customer Assurance with Medical Standards
Meets the strictest medical, safety, and EMC emission standards.
Warranty with Safety and Trust
EIZO and its authorized distributors offer a five-year limited warranty.
Consistency with DICOM Part 14 Calibration
With the bundled RadiCS LE quality control software, a simplified calibration compliant with the DICOM Part 14 standard can be performed to correct the brightness and grayscale tones of the monitor ensuring the most accurate and consistent shadings possible over time.
Mode Selection for Optimum Viewing
Selectable with the front panel buttons, the CAL Switch function allows for various imaging modes of different modalities such as CR, CT, and endoscope images. Furthermore, auto mode settings can be made with the Auto CAL Switch function.
Quick Brightness Stabilization for Instant Viewing
At startup or upon wakeup, the EIZO patented drift correction function quickly stabilizes the brightness level. In addition, a sensor measures the backlight brightness and compensates for brightness fluctuations caused by the ambient temperature and the passage of time.
Brightness Stability Within Usage Time Guaranteed
EIZO’s confidence in its product quality extends to brightness stability which is also covered during the usage time specified in the warranty.
|Type||TFT Color LCD Panel (IPS)|
|Size||48 cm / 19″ (481 mm diagonal)|
|Native Resolution||1280 × 1024|
|Display Size (H x V)||376.3 x 301.0 mm|
|Pixel Pitch||0.294 x 0.294 mm|
|Display Colors||8-bit colors: 16.77 million from a palette of 1.06 billion colors|
|Viewing Angles (H / V, typical)||176°, 176°|
|Brightness (typical)||290 cd/m2|
|Recommended Brightness for Calibration||170 cd/m2|
|Contrast Ratio (typical)||800:1|
|Response Time (typical)||20 ms (On/Off)|
|Input Terminals||DVI-I x 1, D-Sub mini 15 pin x 1|
|Digital Scanning Frequency (H / V)||30 – 65 kHz / 59 – 61 Hz (VGA Text: 69 – 71 Hz)|
|Analog Scanning Frequency (H / V)|| 30 – 82 kHz / 49 – 86 Hz (1280 x 1024: 49 – 76 Hz)
Frame synchronous mode: 57.5 – 62 Hz
|Sync Formats||Separate, Composite, Sync-on-Green|
|Function||1 upstream, 2 downstream|
|Power Requirements||AC 100 – 120 V, 200 – 240 V: 50 / 60 Hz|
|Maximum Power Consumption||55 W|
|Typical Power Consumption||31 W|
|Power Save Mode||Less than 1.3 W|
|Power Management||Digital: DVI DMPM, Analog: VESA DPM|
|Features & Functions|
|Digital Uniformity Equalizer||Yes|
|OSD Languages|| English, German, French, Italian, Japanese, Simplified
Chinese, Spanish, Swedish, Traditional Chinese
|Net Weight||7.2 kg|
|Net Weight (Without Stand)||5.3 kg|
|Hole Spacing (VESA Standard)||100 x 100 mm|
|Certifications & Standards (Please contact the EIZO group company or distributor in your country for the latest information.)||CE (Medical Device Directive), EN60601-1, UL60601-1, CSA C22.2 No. 601-1, IEC60601-1, VCCI-B, FCC-B, Canadian ICES-003-B, C-tick, RoHS, China RoHS, WEEE, CCC, GOST-R|
|FDA 510(k) Clearance||Yes (for General Radiography)|
|Supplied Accessories||AC power cord, signal cables (DVI-D – DVI-D), USB cable, Utility Disk (RadiCS LE, ScreenManager Pro for Medical), ToneCurve Tuning Utility, user’s manual, warranty card|
Please note that you must be a registered user to download RadiForce relevant files. If you have not registered, please continue on to our registration page. If you have forgotten your User ID or Password, please send us an e-mail.
|RadiForce RS110 (English)||English||1.88 MB|
|ScreenSlicer Ver.1.1.2 Software manual (English)||English||1.75 MB|
EIZO offers the largest selection of manufacturer support video cards. Nvidia, AMD/ATI or Matrox video cards can be ordered with any EIZO diagnostic monitor. Please ask us if you do not see them listed of a particular display.
Dual Head 3MP Totoku 21.3″ LED Display – MS35i2-DH-K2000DRead more
Super High Resolution Display for Mammography.
As imaging technology advances, modality devices are reproducing such high resolution that even current 3MP displays are unable to reproduce, creating a bottleneck in softcopy diagnostic environment. TOTOKU introduces “MS35i2″ equipped with Independent Sub pixel Drive technology to accept higher resolution output from modality devices as a major breakthrough.
Calibration Kit for All EIZO MonitorsRead more
RadiCS-UX1 provides total support for the quality maintenance and control of client monitors, covering everything from calibration to acceptance and constancy tests, calibration history and asset management. Complying with AAPM, DIN, JESRA, IEC and other standards, RadiCS-UX1 enables precise QC with easy-to- follow procedures.
Eizo calibration kit for RadiFoce color and mono displays, includes UX1 sensor and RadiCS software
Single Head 5MP JVC/Totoku 21.3” Color – CCL550i2-SH-M2000Read more
The first FDA cleared 5M color display for digital mammography.
All in one solution for multi modality visualization.
Totoku CCL550i2 Features
The First FDA Cleared 5M Mammography Color Display
CCL550i2 ensures confidence in reading digital mammography without compromising brightness and contrast. Ultrasound, CT, MRI images can also be displayed on single screen for an effective diagnostic practice.
Call for Replacement Option
5MP JVC/Totoku 21.3 High Bright Mammo Display – MS55i2 PlusRead more
The MS55i2 Plus comes with 1,000 cd/m2 calibration to make it the best solution for breast tomosynthesis imaging. The brighter screen dramatically increases the number of perceptual grayscale steps to improve visibility of microcalcifications, tumors and structures. Mamography diagnostic reading will be much more efficient.
Thanks to the new energy saving LED backlight LCD, MS55i2 Plus provides more stability in image quality for a long period of time. Also the new function of DICOM conformance self-test function comes with this newly upgraded digital mammography display. In addition to the advanced features of the current TOTOKU’s products, MS55i2 Plus is equipped with some new technologies to deliver higher performance in diagnostic reading. By adopting new generation IPS LCD with LED backlight, MS55i2 Plus has achieved high contrast ratio of 1400:1, providing brighter and crisper images ever.
