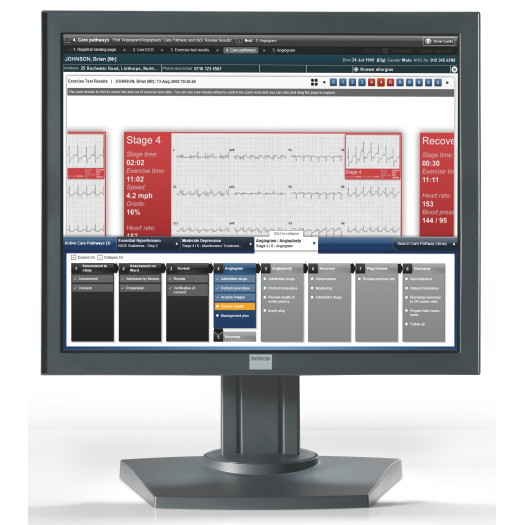

2MP Barco Color DICOM Clinical Review Display – MDRC-2120 / K9301900A


The MDRC-2120 is a 2 MegaPixel clinical review display for hospital-wide viewing of clinical data and images. Building on Barco’s know-how and experience in healthcare imaging, the multi-purpose 20-inch display brings reliable, DICOM-compliant images to a broad palette of imaging applications, including the EMR system.


Replaced with New Product



Consistent DICOM images, anywhere, anytime
The MDRC-2120’s high-quality LCD panel presents medical images with better contrast, higher brightness and a wider viewing angle than conventional computer monitors. Advanced BLOS technology ensures fast power-up and continuous LCD backlight stability, resulting in long-term image consistency. And thanks to the integrated DICOM Part 14 Look-Up Table, the MDRC-2120 is DICOM-compliant “out-of-the-box”.

Professional LCD quality
Presents medical images and patient data with more accurate grayscales, better contrast (up to 1300:1) and a wider viewing angle than conventional computer monitors.

Approved for medical use
Complies with international medical safety and emission standards (such as CE, UL, etc.), qualifying the display for use in every area of the hospital.

10-bit DICOM Look-Up Table
Turns the display into an accurate display monitor for viewing medical images.

Backlight Output Stabilization
Ensures fast power-up and continuous LCD backlight stability, resulting in long-term image consistency.

User-friendly Quality Assurance
Accurate DICOM-calibration and Quality Assurance thanks to the Medical QAWeb solution.

Multi-lingual OSD interface
Makes it easy to change the display’s settings in your own language (English, French, German, Spanish, Italian, Dutch, Simplified & Traditional Chinese, Korean, Japanese).

Landscape & portrait orientation
Allows for a desktop organization that best fits your application (clinical images, reports, patient files,…)

Power Saving Mode
Automatically switches the display to ‘sleep mode’ when not being used. This results in markedly reduced energy consumption and increased lifetime of the LCD backlights.

Optional protective front cover
Protects the valuable LCD panel against damage from intensive use and allows safe and easy cleaning.



Technology TFT color LCD (IPS)
Native resolution 1600 x 1200
Active screen diagonal 20.1″ (510 mm)
Active screen area 16.06″ x 12.05″ (408 x 306 mm)
Pixel pitch 0.255 x 0.255 mm
Luminance 300 cd/m² (max) 180 cd/m² (DICOM calibrated)
Contrast ratio 700:1
Aspect Ratio 4:3
Viewing angle 178° / 178°
Look up table 10 bit
Response time (G – G) 12 ms
Display functions Gamma, DICOM
Colors 16.8 million
Video inputs DVI, VGA (DB15)
USB 1 upstream, 2 downstream
Image stabilization BLOS (backlight sensor)
Calibration and stability MediCal QAWeb solution included



White Papers:

Read the press release about this new line of products – Click Here

3 year warranty.

2MP Color Barco DICOM Clinical Review Display Model MDRC-2120 / Product K9301900A

SKU: MDRC-2120 / K9301900A Categories: ,
