Barco Coronis MDCC-6530 6MP Color LED Fusion with MXRT-6700 Video Card - MDCC-6530 / K9602978
EIZO 1MP Curator 19" High Brightness LCD Color - EX190-S
Barco Coronis MDCC-6530 6MP Dual Head Color LED Fusion with MXRT-6700 Video Card - MDCC-6530 / K9602981
NEW! EIZO MS236WT 2MP 23'' Multitouch
Barco Single Head Nio 5MP LED - MDNG-5221 / K9602730

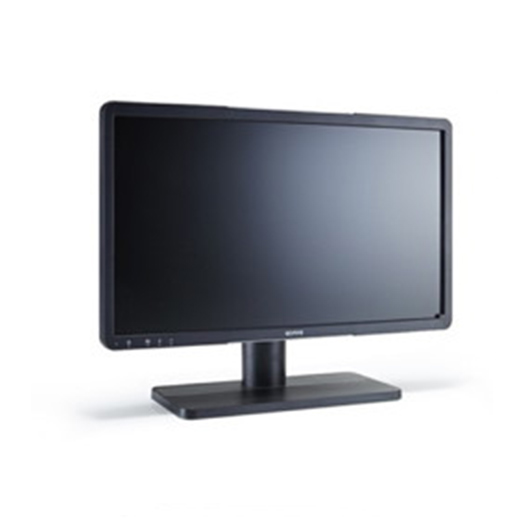

2MP Barco Eonis Color LCD Clinical Display
The Eonis is a 22” display built with healthcare specialists in mind. It combines consistent, high image quality and an attractive, versatile design with networked quality assurance. When utmost precision is a must, the black version of the Eonis display is the best choice.
Call for Best Price! Volume Discounts.
High image quality
The high-quality Eonis display presents sharp, bright images with high contrast. The display’s unique front sensor automatically aligns the image quality every time the display is switched on. The image consistency makes collaboration between specialists easier. They can discuss images with colleagues at multiple locations, with absolute confidence that everyone is seeing identical images.
Centralized quality assurance
The Eonis display comes complete with Barco’s cloud-based MediCal QAWeb software, Barco’s online service for automated calibration, Quality Assurance and asset management. Praised in hospitals around the world, MediCal QAWeb allows healthcare IT and PACS administrators to centrally and remotely manage image quality across the healthcare organization, at the click of a button. This helps them save precious time.
Smart design, fit for purpose
Barco’s Eonis display features an integrated cable management system, making it safe to use in a clinical environment. The multiple mounting options and connections further add to the smart design typical of Barco’s Eonis display.
- Front sensor automatically aligns image quality
- IPS panel ensures wide viewing angle
- MediCal QAWeb suite for networked quality assurance, calibration and asset management all add to the exceptional, consistent image quality of the Eonis
- Covered cables
- Medical-grade certifications
- Socket for Kensington lock makes the Eonis safe for use in clinical environments
- Flexible VESA mount for easy arm, wall or cart mounting
- Top connections for easy and secure connections
- Multiple inputs (HDMI, USB, etc.) ensure the display’s flexible deployment
|Screen technology||TFT Color LCD IPS|
|Active screen size (diagonal)||21.5″ (542mm)(diagonal)
10.52” x 18.71” (267,3 mm x 475,2 mm)(HxV)
|Resolution||2MP (1920 x 1080)|
|Color support||10 bit; 16,7 million colors|
|Viewing angle||178° (IPS)|
|Ambient Light Compensation (ALC)||Yes, preset values in OSD|
|Maximum luminance||250 cd/m²|
|DICOM calibrated luminance||180 cd/m²|
|Contrast ratio||1000:1 typical|
|Response time (Tr + Tf)||14 ms|
|Housing color||Black + Silver|
|Video input signals||VGA, DisplayPort, HDMI|
|USB ports||1 upstream, 2 downstream|
|Power requirements (nominal)||100-240 V|
|Power consumption (nominal)||40 W (<0,5 W in stand-by)|
|Power save mode||Yes|
|Dot clock||165 MHz|
|OSD languages||English, French, German, Spanish, Italian, Dutch, Japanese, Traditional Chinese, Simplified Chinese, Korean|
|Dimensions with stand (W x H x D)||507 x 377–457x 166 mm|
|Dimensions w/o stand (W x H x D)||507 x 306 x 57 mm|
|Dimensions packaged (W x H x D)||610 x 505 x 230 mm|
|Net weight with stand||6.0 kg|
|Net weight w/o stand||3.6 kg|
|Net weight packaged with stand||9.6 kg|
|Height adjustment range||80 mm|
|Tilt||0° / +20°|
|Swivel||-30° / +30°|
|Mounting standard||VESA (75 mm)|
|Certifications||CE (MDD 93/42/EEC class I product), CE – 2004/ 108/EC, IEC 60950-1:2005 + A1:2009 (2ND EDITION), IEC 60601-1 2ND ED:1988 + A1:1991 + A2:1995, UL 60601-1 1ST EDITION, CAN/CSA-C22.2 NO. 601.1-M90:2005, IEC 60601-1:2005 + A1:2012, ANSI/AAMI ES 60601-1:2005 + C1:2009 + A1:2012, CAN/CSAC22.2 No. 60601-1-08:2008, DEMKO – EN 60601- 1:2006, EN 60601-1-2:2007, CCC – GB9254-2008 + GB4943-2001 + GB17625.1-2003, KC, VCCI, FCC class B, ICES-001 Level B, FDA Class I device, RoHS|
|Supplied accessories||User Guide
Cable routing strap
Video cables (1 x VGA + 1 x HDMI)
Main cables (UK, European (CEBEC/KEMA) or USA (UL/ CSA; adaptor plug NEMA 5-15P) or Chinese (CCC))
USB 2.0 cable
External power supply (model: BridgePower Corp. BPM060S12F15; Input: 100-240 V AC, 50-60 Hz, 1.5 A; Output: +12V DC, 5.0 A)
|QA software||QAWeb Enterprise & QAWeb Private Practice|
MXRT-7600 VIDEO CARD
MXRT-7600 Graphics Board: PCIe x16, 4 GB Display Memory. 4 Display-Port Outputs. Includes 2 single- link dongles. K9306037
CALIBRATION KIT – BARCO LCD SENSOR MKII
Handheld photosensor MKII for LED and CCFL LCDs. B4100035
Eonis Clinical Specialty Display 2MP 22″ Black; 2MP Color Display MDRC-2122 BL; 1 x QAWeb Enterprise & QAWeb Private Practice Software; VGA,HDMI,USB and power supply cables included. 3 year warranty.
Basic 2MP Radiology WorkstationRead more
Diagnostic interpretation of MRI, CT, US, DR and NM images are a basic need for many medical professionals, the Basic2™ system provides superior performance in a mini-tower package with a medical grade, 2MP DICOM grayscale LCD single or dual head display. With an administrative 19” color LCD included with the system, multi-tasking is easy. The system includes 3 years of “hot swap” coverage for the monitor and 3 years of Next Business Day Parts and Labor On-Site Response Service and 3 Years of GOLD TECH Support on the workstation.
Single Head Barco Nio 2MP LED High-Bright Color – MDNC-2221Read more
Nio Color 2MP LED is a 2 MegaPixel color display system with LED backlights, providing excellent image quality for confident diagnoses. Nio Color 2MP LED provides an effective display solution for a multitude of applications and modalities, including 3D PACS, 3D echo, ultrasound, orthopedic imaging, CAD, image fusion, nuclear medicine and PET.
Call for Best Price!
NEW! JVC 2MP 21.3 Clinical Review Display – CL-R211
$1,995.00Add to cart
JVC CL-R211 (CLR211) 2MP 21.3” Clinical Review Display is an optimal solution where doctors need to view both grayscale and color images, and effectively covers multiple applications like PACS, CAD, PET and nuclear medicine.
Dynamic Gamma — One Pixel Based Contrast and Brightness, Gamma.
Call for Best Price!
1MP Barco Color DICOM Clinical Review Touch Screen – MDRC-1219 TS
$1,199.00Add to cart
The MDRC-1219 TS is a 1 MegaPixel clinical review display with touch screen interface. The 19-inch display brings reliable, DICOM-compliant images to a broad palette of imaging applications, including the EMR system.
Consistent DICOM images, anywhere, anytime
The high-quality LCD panel of the MDRC-1219 TS presents medical images with better contrast, higher brightness and a wider viewing angle than conventional computer monitors.
