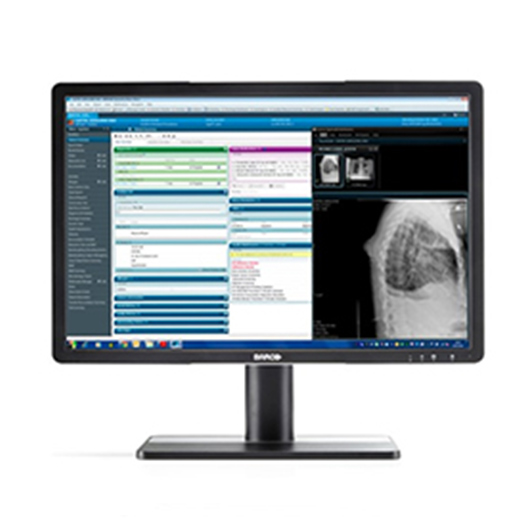

2MP Barco Eonis Touch Screen Clinical Review Display


The Barco Eonis MDRC-2222TS is a 22″ clinical review display with an intuitive touch screen interface. The 22-inch multi-purpose radiology display brings reliable, DICOM-compliant and remotely managed images to a broad palette of imaging applications, including modality control systems and electronic patient systems.

Call for Best Price!

High image quality

Eonis presents sharp and bright images. The displays unique front consistency sensor automatically aligns the image quality every time the display is switch on. The image consistency makes collaboration between specialists easier. The high-quality LCD panel presents medical images with better contrast, higher brightness and a wider viewing angle than conventional computer monitors.

Advanced Backlight Output Stabilization (BLOS) technology ensures fast power-up and stable luminance over time, resulting in long-term image consistency. Thanks to the integrated DICOM Part 14 Look-Up Table, the MDRC-2222TS is DICOM-compliant “out-of-the-box”.

Fit for purpose

Barco’s range of Eonis MDRC displays has been designed for use in clinical environments. The displays comply with international medical (IEC 60601) standards for optimum patient safety.
Remote management

All Eonis MDRC displays come standard with Barco’s industry-leading MediCal QAWeb software. This online service for automated calibration and Quality Assurance ensures accurate and reliable images anywhere, anytime. It also allows remote QA administration and asset management via the Internet to guarantee maximum uptime of your medical display.

Smart design, fit for purpose

Barco’s Eonis display features multiple mounting options and connections. The user-friendly height, tilt and pivot adjustments of the base allow the monitor to be positioned for maximum comfort to help ease the physical strains of a long work day.


Screen technology TFT Color LCD IPS
Active screen size (diagonal) 546 mm (21.5″)
Active screen size (H x V) 476 x 268 mm (18.7 x 10.5″)
Aspect ratio (H:V) 16:9
Resolution 2MP (1920 x 1080)
Pixel pitch 0.248 mm
Color imaging Yes
Gray imaging Yes
Color support 16.8 million
Viewing angle (H, V) 178°
Ambient Light Compensation (ALC) Yes, reading room selection
Front Sensor Yes, front consistency sensor
Maximum luminance 300 cd/m²
DICOM calibrated luminance 180 cd/m²
Contrast ratio 1000:1
Response time (Tr + Tf) 7.5ms
Scanning frequency (H; V) 31.5-79.95 kHz; 59-61 Hz
Housing color Black
Video input signals DVI-I Single Link
Video inout terminals Separate H&V sync
Composite sync on H
Sync on Green supported
USB ports 1 upstream, 2 downstream
USB standard 2.0
Power requirements (nominal) 100-240V
Power consumption (nominal) 20W
Power save mode Yes
Power management DVI-DMPM states supported
Power On state
Active-Off state
DPMS states supported
Dot clock 165 MHz
OSD languages English, French, German, Spanish, Italian, Dutch, Simplified Chinese, Taditional Chinese, Japanese, Korean
Dimensions with stand (W x H x D) Landscape: 514 x 388~498 x 201 mm
Dimensions w/o stand (W x H x D) Portrait: 315 x 514 x 67 mm

Landscape: 514 x 315 x 67 mm

Dimensions packaged (W x H x D) 700 x 240 x 460 mm
Net weight with stand 6.5 kg
Net weight w/o stand 4.2 kg
Net weight packaged with stand 16.3 kg
Net weight packaged w/o stand 14.0 kg
Height adjustment range 110 mm
Tilt -5° / +22°
Swivel -45° / +45°
Pivot 90°
Mounting standard VESA (100 mm)
Recommended modalities CT, MR, US, DR, CR, NM, Film
Certifications EN 60601-1-2 (2001),EN 55011 (Class B),IEC 61000-3-2,IEC 61000-3-3,IEC 61000-4-2,IEC 61000-4-3,IEC 61000-4-4,IEC 61000-4-5,IEC 61000-4-11,IEC 61000-4-6,IEC 61000-4-8,CE,EN 60601-1 Medical Part 1,FCC B,c-ul,PSE,BSMII,VCCI ,CCC,KCC,CSA c22.2No601.1, UL50501-1
Supplied accessories User manual
Video cables (DisplayPort, USB)
Main cables (UK, European (CEBEC/KEMA), USA (UL/CSA; adaptor plug NEMA 5-15P), Chinese (CCC))
External power supply
Optional accessories Barco External Medical LCD Display Sensor
Barco MDRC-2222 Clinical Review Medical LCD Display Protective Front Cover Kit
QA software MediCal QAWeb
Units per pallet 16
Pallet dimensions (W x H) 800 x 1200 mm
Warranty 3 years

CLINICAL REVIEW DISPLAY 2MP TOUCHSCREEN: 1 X MDRC-2222TS; 1 X Medical QAWeb Agent Software; ALL cables, drivers and accessories; DVI/DVI Display Port; Individual pedestal
