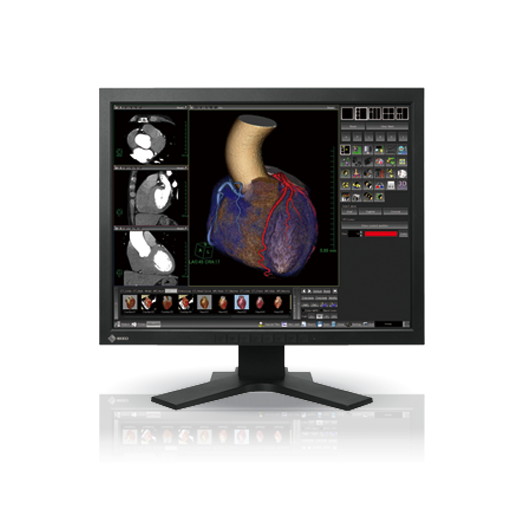

2MP EIZO Diagnostic Color Display – RS210-BK


2MP 54cm (21.3″) COLOR LCD MONITOR

Precise calibration compliant with the DICOM Part 14 standard. 2 megapixel color LCD monitor ideal for displaying CT and MRI monochrome images and ultrasound, endoscope, and nuclear medicine color images in a PACS environment.


Replaced with New Product

Diagnostic Precision with DICOM Part 14 Factory Adjustment

To ensure the most accurate and consistent shadings possible, EIZO carefully measures and sets every grayscale tones on the production line to produce a monitor compliant with DICOM Part 14.
Brightness Uniformity for a Steadier Image Across the Screen

The Digital Uniformity Equalizer (DUE) function provides optimum brightness uniformity which is difficult to attain due to the characteristics of LCD monitors.

Brightness Uniformity for a Steadier Image Across the Screen
Wide Viewing Angles for Multiple People Use

Wide Viewing angles with minimal color shift when viewed from the side.
Versatile Positioning for Improved Operability

EIZO’s highly versatile stand offers tilt, swivel and a wide height adjustment range enabling you to use the monitor with greater comfort.
Quick Brightness Stabilization for Instant Viewing

At startup or upon wakeup, the EIZO patented drift correction function quickly stabilizes the brightness level. In addition, a sensor measures the backlight brightness and compensates for brightness fluctuations caused by the ambient temperature and the passage of time.
Customer Assurance with Medical Standards

Meets the strictest medical, safety, and EMC emission standards.
Consistency with DICOM Part 14 Calibration

With the bundled RadiCS LE quality control software, a simplified calibration compliant with the DICOM Part 14 standard can be performed to correct the brightness and grayscale tones of the monitor ensuring the most accurate and consistent shadings possible over time.
10-bit Color

The monitor can support 10-bit input for each RGB color, displaying more than one billion colors simultaneously. This ensures accurate reproduction of color tones for 3D color rendering and image fusion.

10-bit color graphics board and 10-bit color viewer software needed for 10-bit color display.

10-bit Color
Mode Selection for Optimum Viewing

Selectable with the front panel buttons, the CAL Switch function allows for various imaging modes of different modalities such as CR, CT, and endoscope images. Furthermore, auto mode settings can be made with the Auto CAL Switch function.
Brightness Stability Within Usage Time Guaranteed

EIZO’s confidence in its product quality extends to brightness stability which is also covered during the usage time specified in the warranty.
Warranty with Safety and Trust

EIZO and its authorized distributors offer a five-year limited warranty.


Cabinet Color Black
Type TFT Color LCD Panel (IPS)
Backlight CCFL
Size 54 cm / 21.3″ (540 mm diagonal)
Native Resolution 1600 x 1200
Display Size (H x V) 432.0 x 324.0 mm
Pixel Pitch 0.270 x 0.270 mm
Display Colors 10-bit colors (DisplayPort): 1.07 billion (maximum) colors
8-bit colors: 16.77 million from a palette of 68 billion colors
Viewing Angles (H / V, typical) 170°, 170°
Brightness (typical) 300 cd/m2
Recommended Brightness for Calibration 150 cd/m2
Contrast Ratio (typical) 1000:1
Response Time (typical) 25 ms (On/Off)
Video Signals
Input Terminals DVI-I x 2, DisplayPort x 1
Digital Scanning Frequency (H / V) 31 – 100 kHz / 59 – 61 Hz (VGA Text: 69 – 71 Hz)
Analog Scanning Frequency (H / V) 31 – 100 kHz / 49 – 86 Hz (1600 x 1200: 49 – 61 Hz)
Frame synchronous mode: 59 – 61 Hz
Sync Formats Separate, Composite, Sync-on-Green
Function 1 upstream, 2 downstream
Standard Rev. 2.0
Power Requirements AC 100 – 120 V, 200 – 240 V: 50 / 60 Hz
Maximum Power Consumption 64 W
Typical Power Consumption 37 W
Power Save Mode Less than 0.8 W
Power Management Digital: DVI DMPM, DisplayPort 1.1a, Analog: VESA DPM
Sensor Backlight Sensor
Features & Functions
Brightness Stabilization Yes
Preset Modes CAL-Switch
Digital Uniformity Equalizer Yes
OSD Languages English, German, French, Italian, Japanese, Simplified
Chinese, Spanish, Swedish, Traditional Chinese
Physical Specifications
Net Weight 10.3 kg
Net Weight (Without Stand) 7.1 kg
Hole Spacing (VESA Standard) 100 x 100 mm
Certifications & Standards (Please contact the EIZO group company or distributor in your country for the latest information.) CE (Medical Device Directive), EN60601-1, UL60601-1, CSA C22.2 No. 601-1, IEC60601-1, VCCI-B, FCC-B, Canadian ICES-003-B, C-tick, RoHS, China RoHS, WEEE, CCC, GOST-R
FDA 510(k) Clearance Yes (for General Radiography)
Supplied Accessories AC power cord, signal cables (DVI-D – DVI-D, DisplayPort – DisplayPort), USB cable, Utility Disk (RadiCS LE, ScreenManager Pro for Medical), user’s manual
Warranty Five Years



RadiForce G&R-Series
7.67 MB


RadiForce RS210
1 MB



Please note that you must be a registered user to download RadiForce relevant files. If you have not registered, please continue on to our registration page. If you have forgotten your User ID or Password, please send us an e-mail.

Document Language Size Download
RadiForce RS210 (English) English 5.36 MB Download
ScreenSlicer Ver.1.1.2 Software manual (English) English 1.75 MB Download

RadiForce 2MP 21.3″ LCD Display Color, 1200×1600, Digital/Analog dual input, 300cd/m2, Viewing Angle H:170/V:170, Contrast Ratio 1000:1, 25 ms Response Time, Height Adjustable Stand, Certifications UL2601, FCC-B, FDA510K, 5 Year Warranty
