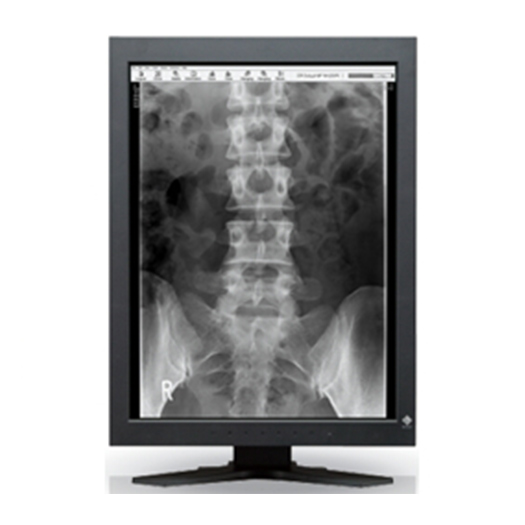

2MP EIZO Radiforce Monochrome LCD Display
To ensure the most accurate and consistent shadings possible, EIZO carefully measures and sets every grayscale tones on the production line to produce a monitor compliant with DICOM Part 14.
Brightness Uniformity for a Steadier Image Across the Screen
The Digital Uniformity Equalizer (DUE) function provides optimum brightness uniformity which is difficult to attain due to the characteristics of LCD monitors.
Replaced with New Product
Mode Selection for Optimum Viewing
Selectable with the front panel buttons, the CAL Switch function allows for various imaging modes of different modalities such as CR, CT, and endoscope images. Furthermore, auto mode settings can be made with the Auto CAL Switch function.
Wide Viewing Angles for Multiple People Use
Wide Viewing angles with minimal color shift when viewed from the side.
Versatile Positioning for Improved Operability
EIZO’s highly versatile stand offers tilt, swivel and a wide height adjustment range enabling you to use the monitor with greater comfort.
Customer Assurance with Medical Standards
Meets the strictest medical, safety, and EMC emission standards.
Warranty with Safety and Trust
EIZO and its authorized distributors offer a five-year limited warranty.
Consistency with DICOM Part 14 Calibration
With the bundled RadiCS LE quality control software, a simplified calibration compliant with the DICOM Part 14 standard can be performed to correct the brightness and grayscale tones of the monitor ensuring the most accurate and consistent shadings possible over time.
10-Bit Simultaneous Grayscale Display
10-bit (1,024 tones) from a 13-bit look-up table (8,161 tones) can be displayed simultaneously for high-definition medical imaging.
10-bit graphics board and 10-bit viewer software needed for 10-bit display.
Quick Brightness Stabilization for Instant Viewing
At startup or upon wakeup, the EIZO patented drift correction function quickly stabilizes the brightness level. In addition, a sensor measures the backlight brightness and compensates for brightness fluctuations caused by the ambient temperature and the passage of time.
Brightness Stability Within Usage Time Guaranteed
EIZO’s confidence in its product quality extends to brightness stability which is also covered during the usage time specified in the warranty.
|Model Variations|| GS220-CL: Clear Base
|Type||TFT Monochrome LCD Panel (IPS)|
|Size||54 cm / 21.3″ (541 mm diagonal)|
|Native Resolution||1200 x 1600|
|Display Size (H x V)||324.0 x 432.0 mm|
|Pixel Pitch||0.270 x 0.270 mm|
|Grayscale Tones||1,024 from a palette of 8,161 tones|
|Viewing Angles (H / V, typical)||170°, 170°|
|Brightness (typical)||1,000 cd/m2|
|Recommended Brightness for Calibration||500 cd/m2|
|Contrast Ratio (typical)||850:1|
|Response Time (typical)||23 ms (On/Off)|
|Input Terminals||DVI-D x 1|
|Digital Scanning Frequency (H / V)|| 31 – 100 kHz / 48 – 71.5 Hz (VGA Text: 69 – 71 Hz)
Frame synchronous mode: 59 – 61 Hz
|Function||1 upstream, 2 downstream|
|Power Requirements||AC 100 – 120 V, 200 – 240 V: 50 / 60 Hz|
|Maximum Power Consumption||100 W|
|Power Save Mode||Less than 3 W|
|Power Management||DVI DMPM|
|Features & Functions|
|Digital Uniformity Equalizer||Yes|
|OSD Languages|| English, German, French, Italian, Japanese, Simplified
Chinese, Spanish, Swedish, Traditional Chinese
|Net Weight||9.9 kg|
|Net Weight (Without Stand)||6.9 kg|
|Hole Spacing (VESA Standard)||100 x 100 mm|
|Certifications & Standards (Please contact the EIZO group company or distributor in your country for the latest information.)||CE (Medical Device Directive), EN60601-1, UL60601-1, CSA C22.2 No. 601-1, IEC60601-1, VCCI-B, FCC-B, Canadian ICES-003-B, C-tick, RoHS, CCC, GOST-R|
|FDA 510(k) Clearance|| Yes
(for General Radiography)
|Supplied Accessories||AC power cord, signal cable (DVI-D – DVI-D), USB cable, Utility Disk (RadiCS LE, ScreenManager Pro for Medical), user’s manual, warranty card|
Please note that you must be a registered user to download RadiForce relevant files. If you have not registered, please continue on to our registration page. If you have forgotten your User ID or Password, please send us an e-mail.
|RadiForce GX220 / GS220 (English)||English||2.75 MB|
|ScreenSlicer Ver.1.1.2 Software manual (English)||English||1.75 MB|
RadiForce 2MP 21.3″ LCD Radiology Display Monochrome/Clear Base, 1200X1600, Digital Input, 1000cd/m2, Viewing Angle H:170/V:170, Contrast Ratio 850:1, 23 ms Response Time, Height Adjustable Stand, Certifications UL2601, FCC-A, FDA510K, 5 Year Warranty
