2MP Medical Clinical Eonis 24.1'' - MDRC-2224 / K9301808A
Barco 24” Touch Screen Clinical Review Display MDRC-2324 HTEW - K9350071
Barco Coronis Fusion MDCC-4430 30" 4MP Color Diagnostic Display without Video Card - MDCC-4430 / K9602933
Eizo Radiforce RX360 (RX360-BK) 21.3" 3MP Color Diagnostic Display
Calibration Kit for All EIZO Monitors -RadiCS-UX2
3MP Totoku Color Medical Monitor with Advanced Grayscale Display
High-Luminance 3MP color radiology display for diagnostic imaging realizes advanced grayscale LCD monitor.
With high luminance and high contrast, and an integrated color calibration function, the CCL354i2 delivers highly accurate color reproduction faithful to the DICOM GSDF. The CCL354i2 includes a luminance compensation feature for edge to edge consistency, is fully configurable for multi-display applications, and comes standard with hardware-based pivot functionality for fast image drawing in portrait orientation.
Newly developed luminance stabilizing system λ-Sentinel II
λ-Sentinel II consists of a luminance sensor and luminance control circuit. The luminance sensor, integrated into the front bezel, consistently monitors and accurately stabilizes luminance on the screen by rapidly communicating with the backlight sensor.
Remote grayscale check and remote calibration functions
Conformance testing to DICOM GSDF and calibration can be remotely accomplished. These features minimize the burden on display/PACS administrators.
* An optional PM Medivisor software is required.
Luminance equalizer λ-Uniformity Congruence
Is built in to achieve highly accurate luminance uniformity across the screen. Luminance unevenness is minimized in the final tune-up prior to shipping.
High luminance, high quality LCD panel
800 cd/m² and contrast ratio of 750:1. Due to its wide, dynamic range, high quality grayscale can also be achieved on this color display, providing versatility for multi-modality workstations.
Color calibration function to reproduce colors faithful to the original and grayscale compliant with DICOM Part 14 Accurate color and grayscale reproduction compliant with DICOM Part 14
By calibrating color temperature, luminance, and gamma characteristics, reproduction of colors faithful to the original and smooth display of grayscale are possible.
Built-in 10-bit LUT (look up table) for accurate grayscale reproduction
The built-in LUT selects the most appropriate 256 shades of gray (8bit) out of 1021 shades (10bit) to realize finer and smoother grayscale.
Hardware pivot function for fast drawing in portrait orientation
Stress-free operation is made possible by fast drawing speed for on-the-fly change to portrait on the monitor.
Dual Link input
provides smooth display of motion pictures.
OSD Information Display
Such information as the display model, total operating time, actual measurement of luminance, and calibration settings can be checked on LCD screen.
LED indicator to inform of current status
A glance at the LED indicator tells you the display’s current operating status.
Advanced power saving*
The backlight dims as the screensaver starts, reducing power consumption and preventing unnecessary deterioration of the backlight.
* This feature may not be available, depending on the specifications of the graphics card used.
18 points of luminance values are measured and plotted into a graph.
Ambient light and display luminance measurement
The built-in sensors measure display luminance and ambient illuminance.
Worldwide medical safety standards
This LCD monitor is certified under various medical safety standards that are much more demanding than those for general-purpose IT equipment.

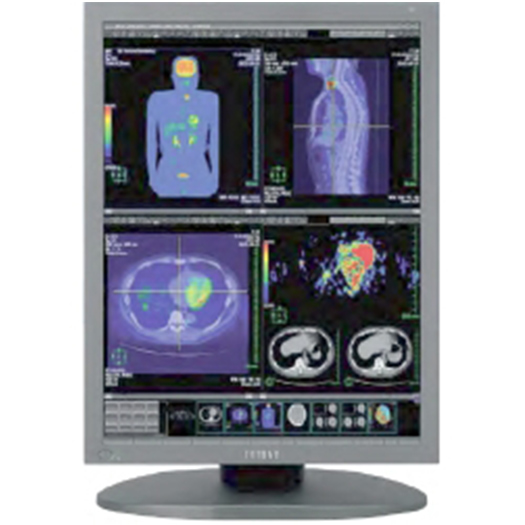

Totoku CCL354i2 Color Medical LCD Radiology Display
List Price: $5,388.00
5MP JVC/Totoku 21.3” Color Display – CCL550i2Read more
The first FDA cleared 5M color display for digital mammography.
All in one solution for multi modality visualization.
The First FDA Cleared 5M Mammography Color Display
CCL550i2 ensures confidence in reading digital mammography without compromising brightness and contrast. Ultrasound, CT, MRI images can also be displayed on single screen for an effective diagnostic practice.
Call for Replacement Option
EIZO RadiForce 2MP 20.1” – G21-DH-MRAPRead more
EIZO RadiForce 2MP 20.1″ LCD Monochrome Radiology Monitor, 1200X1600, Digital/Analog dual input, 700cd/m2, Viewing Angle H:170/V:170, Contrast Ratio 1000:1, 30 ms Response Time, Height Adjustable Stand, Certifications UL2601, FCC-A, FDA510K, KIT INCLUDES 2 G21-BK and 1 RAD-PCI Video Card
Ships in 1-14 days
Single Head 3MP Totoku Color Medical Monitor with Advanced Grayscale DisplayRead more
Single Head 21.3 inch 3MP Color Hi-Brite LCD w/ Front Sensor and matching PCIe Quadro 2000D video card. High-Luminance 3MP color display for diagnostic imaging realizes advanced grayscale LCD monitor. With high luminance and high contrast, and an integrated color calibration function, the CCL354i2 delivers highly accurate color reproduction faithful to the DICOM GSDF. The CCL354i2 includes a luminance compensation feature for edge to edge consistency, is fully configurable for multi-display applications, and comes standard with hardware-based pivot functionality for fast image drawing in portrait orientation.
1.3MP Totoku Medical Color Monitor 19” – CCL192 plusRead more
Totoku CCL192 plus Medical Color Monitor 19″ 1.3MP Color LCD w/picture-in-picture and S-VIDEO feature
1.3 megapixel 19″ color LCD CCL192 plus
Built-in overdrive circuit for smooth display of moving images and support of multiple interfaces
Multifunctional model equipped with an overdrive circuit to reduce afterimage effects, supports multiple input signals and has a built-in power supply unit.
