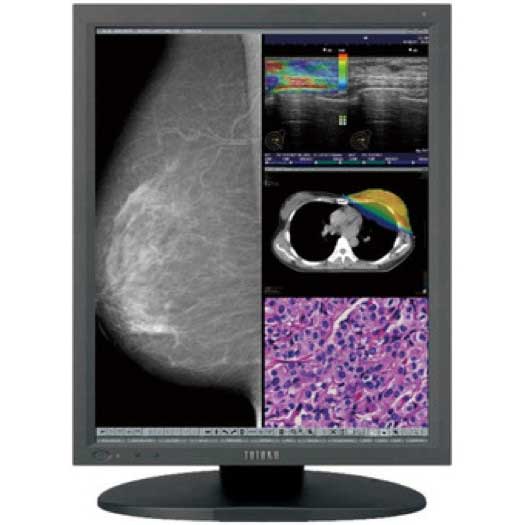

5MP JVC/Totoku 21.3” Color Display – CCL550i2
The first FDA cleared 5M color display for digital mammography.
All in one solution for multi modality visualization.
The First FDA Cleared 5M Mammography Color Display
CCL550i2 ensures confidence in reading digital mammography without compromising brightness and contrast. Ultrasound, CT, MRI images can also be displayed on single screen for an effective diagnostic practice.
Call for Replacement Option
The First FDA Cleared Dual Head 5MP Mammography Color Display, the CCL550i2 ensures confidence in reading digital mammography without compromising brightness and contrast. Ultrasound, CT, MRI images can also be displayed on one screen. Dual head with two (2) 5MP LCD displays with matching K2000 video card. Specs: LED backlight system,21.3-inch color, Contrast Ratio: 1300:1 (typ), Maximum Luminance: 1000 cd/m² (typ), 500 cd/m² / 410 cd/m² (calibrated). 5 year manufacturer’s warranty.
|Model Name||CCL550i2 /AR (AR coating)
CCL550i2 /F (Protective filter)
CCL550i2 /N (No protective)
|LCD Panel||Technology||21.3-inch color TFT IPS technology|
|Display Area||338 mm x 422 mm|
|Pixel Pitch||0.165 mm x 0.165 mm|
|Contrast Ratio||1300:1 (typ)|
|Maximum Luminance||1000 cd/m² (typ)
500 cd/m² / 410 cd/m² (calibrated)
|Viewing Angle||176° horizontal and vertical (typ)|
|Visual Performance||Native Resolution||2048×2560|
|Display Colors||16.77 million colors from a palette of 280 trillion colors
1.06 billion colors with DisplayPort and 10-bit viewer
|Interface||Input Signal||DVI-D (DVI 1.0 compliant)
DisplayPort (DisplayPort 1.1a compliant)
|Plug and Play||DDC2B compliant|
|Input Power Supply||Input Power Supply||100V – 240V 50/60Hz|
|Maximum Power Consumption||95W (typ)
Power management feature
|Features||Calibration Control||Luminance, Gamma, Color temperature
Storing 3 sets of LUT
|OSD Information Display||Model name, Serial No., Total operating time, Calibration settings (Operating time since last calibration, Luminance, Gamma), Current luminance|
|USB Hub||USB Rev.2.0 compliant, Self-powered, USB upstream connector (x1), USB downstream connector (x2)|
|Other Features||Luminance / color uniformity correction, Hardware pivot, LED indicator, Configuration selection|
|Approvals||ANSI/AAMI ES60601-1(2005), CAN/CSA-C22.2 No. 60601-1(2008), FDA 510(k), FCC-B, ICES-003-B,CE, VCCI-B|
|Physical Characteristics||Dimensions (WxHxD)||Landscape : 475 mm x 483 / 544 mm x 220 mm
Portrait : 390 mm x 525 / 587 mm x 220 mm
|Tilt Stand||Tilt, Swivel, Portrait / Landscape|
|Mount||VESA standard (100 mm x 100 mm)|
|Security Slot||Anti-theft security slots (display and tilt stand)|
|Accessories||Power cord, DVI cable, DisplayPort cable, USB cable, User manual, Cleaning kit*
*AR coating model only
EIZO RadiForce 2MP 20.1” – G21-DH-MRAPRead more
EIZO RadiForce 2MP 20.1″ LCD Monochrome Radiology Monitor, 1200X1600, Digital/Analog dual input, 700cd/m2, Viewing Angle H:170/V:170, Contrast Ratio 1000:1, 30 ms Response Time, Height Adjustable Stand, Certifications UL2601, FCC-A, FDA510K, KIT INCLUDES 2 G21-BK and 1 RAD-PCI Video Card
Ships in 1-14 days
2MP Totoku 21.3” Color LED Display – CCL258i2Read more
Thanks to the new energy saving LED backlight LCD, CCL258i2 provides more stability in image quality for a long period of time.
High bright color display CCL258i2 is an ideal system for diagnostic viewing in multi-modality environment. CCL258i2 is an optimal solution where doctors need to view both grayscale and color images, and effectively covers multiple applications like PACS, CAD, PET and nuclear medicine.
Dual Head 3MP Totoku 21.3″ LED Display – MS35i2-DH-K2000DRead more
Super High Resolution Display for Mammography.
As imaging technology advances, modality devices are reproducing such high resolution that even current 3MP displays are unable to reproduce, creating a bottleneck in softcopy diagnostic environment. TOTOKU introduces “MS35i2″ equipped with Independent Sub pixel Drive technology to accept higher resolution output from modality devices as a major breakthrough.
5MP JVC/Totoku 21.3 High Bright Mammo Display – MS55i2 PlusRead more
The MS55i2 Plus comes with 1,000 cd/m2 calibration to make it the best solution for breast tomosynthesis imaging. The brighter screen dramatically increases the number of perceptual grayscale steps to improve visibility of microcalcifications, tumors and structures. Mamography diagnostic reading will be much more efficient.
Thanks to the new energy saving LED backlight LCD, MS55i2 Plus provides more stability in image quality for a long period of time. Also the new function of DICOM conformance self-test function comes with this newly upgraded digital mammography display. In addition to the advanced features of the current TOTOKU’s products, MS55i2 Plus is equipped with some new technologies to deliver higher performance in diagnostic reading. By adopting new generation IPS LCD with LED backlight, MS55i2 Plus has achieved high contrast ratio of 1400:1, providing brighter and crisper images ever.
