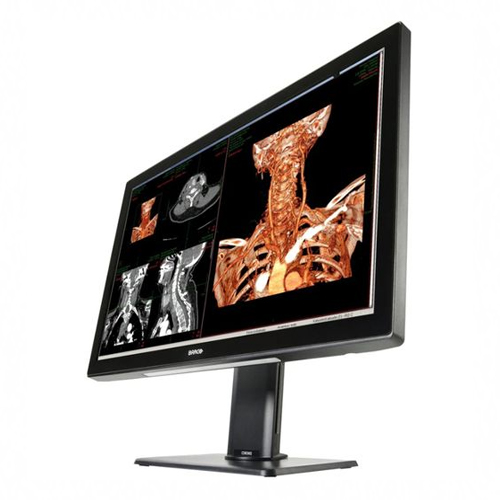

Name: Barco Coronis Fusion MDCC-4430 30" 4MP Color Diagnostic Display without Video Card - MDCC-4430 / K9602933
SKU: MDCC-4430 / K9602933
Price: 7150.00 USD
Availability: InStock

Barco Coronis Fusion MDCC-4430 30″ 4MP Color Diagnostic Display without Video Card – MDCC-4430 / K9602933

~~$7,615.00~~ $7,150.00

Color fusion display for flexible multimodality imaging
With toolset to boost productivity
Automated QA and calibration

Coronis MDCC-4430 Fusion 4MP multimodality diagnostic display system features an exclusive LCD panel with the latest IPS technology, offering best-in-class image quality. Its high brightness and high contrast ratio help unveil the subtlest of details so you can make the most accurate diagnosis. Its large 30″ screen real estate, wide aspect ratio, and full ACR compliance make this display the perfect fit for diagnostic imaging.

Request a Quote

Barco Coronis MDCC-4430 Color Fusion Diagnostic Display Sys, 4MP, 1-Head, No Card, 5 Year Warranty

A brighter diagnosis

Barco Coronis MDCC-4430 Fusion, Barco’s renowned multi-modality display for radiologists, now comes in a new, energy-efficient, and lightweight design. Bright on so many levels, Coronis Fusion has been designed to help radiologists provide care with confidence. See more details quickly thanks to the high brightness, high contrast ratio, and best-in-class image quality. What’s more, the wide color gamut in combination with SteadyColor™ calibration technology helps you see even more colors and more details on the 30-inch screen.

Smart workflow

Designed for your comfort and to boost productivity, Coronis MDCC-4430 Fusion comes with smart image-enhancing features and clinical workflow tools. The MDCC4430 display’s wide viewing angle combined with the SoftGlow™ task and wall light help reduce eye strain. Thanks to SpotView™, a proven clinical tool, radiologists can further improve detection accuracy as well as reading productivity.

Effortless quality & compliance

Like all of Barco’s medical display systems, Coronis Fusion comes with QAWeb, cloud-based technology for automated calibration, Quality Assurance, and compliance to ensure maximum uptime of the display with no need for human
intervention. A one-stop-shop solution Barco medical display systems include exclusive display controllers that are validated
with the latest workstations and with all major PACS applications. All components are under the full 5-year warranty (including the display backlight) for complete peace of mind.

A one-stop-shop solution

Barco medical display systems include exclusive display controllers that are validated with the latest workstations and with all major PACS applications. All components are under the full 5-year warranty (including the display backlight) for complete peace of mind.

Available options:

K9602975 – Barco Coronis MDCC-4430 4MP Color Fusion Diagnostic Display System with MXRT-6700 Video Card

K9602933 – Barco Coronis MDCC-4430 4MP Color Fusion Diagnostic Display System without Video Card

About Barco

SPECIFICATION

Screen technology

IPS

Active screen size (diagonal)

772 mm (30.4″)

Active screen size (H x V)

655 x 410 mm (25.8 x 16.1″)

Aspect ratio (H:V)

16:10

Resolution

Native 4MP (2560 x 1600 pixels)
Configurable to 2 x 2MP+ (1280 x 1600 pixels)
Configurable to 2 x 2MP (1200 x 1600 pixels)

Pixel pitch

0.256 mm

Color imaging

Yes

Gray imaging

Yes

Bit depth

30 bit

Viewing angle (H, V)

178°

Uniformity correction

Color PPU

SteadyColor Calibration

Yes, when used as system with MXRT-x600 display controller, using Barco driver 10.171.1.0 or later and with QAWeb Enterprise 2.2 or later.

SoftGlow Ambient Lighting

Yes

Ambient light presets

Yes, reading room selection

Ambient light sensor

Yes

Front sensor

Yes, I-Guard

Maximum luminance (panel typical)

1050 cd/m²

DICOM calibrated luminance

600 cd/m²

Contrast ratio (panel typical)

2000:1

Response time ((Tr + Tf)/2) (typical)

18 ms

Housing color

Black / White

Video input signals

2x DisplayPort 1.2

Video output signals

1x DisplayPort (MST)

USB ports

1x USB 2.0 upstream (endpoint)
2x USB 2.0 downstream
1x USB 2.0 downstream with high-power charging functionality

Power rating

100-240 Vac, 50/60 Hz, 3.6-1.6 A

Power consumption

75 W (nominal) @ calibrated luminance of 600 cd/m²
< 0.5 W (hibernate)
< 0.5 W (standby)

Dimensions with stand (W x H x D)

714 x 524~624 x 240 mm

Dimensions w/o stand (W x H x D)

714 x 478 x 74 mm

Dimensions packaged (W x H x D)

800 x 650 x 290 mm

Net weight with stand

17.7 kg

Net weight w/o stand

13.1 kg

Net weight packaged

22.3 kg (without optional accessories)

Tilt

-5° to +25°

Swivel

-30° to +30°

Pivot

N/A

Height adjustment range

100 mm

Mounting standard

VESA (100 mm)

Screen protection

Protective, anti-reflective glass cover

Recommended modalities

All digital images, except digital mammography

Certifications

FDA 510(k) K191845 for General Radiology
CE1639 (MDD 93/42/EEC; A1:2007/47/EC class IIb product)
CCC (China), KC (Korea), PSE (Japan), BIS (India), BMSI (Taiwan), EAC (Russia, Kazakhstan, Belarus, Armenia and Kyrgyzstan) PendingSafety specific:
IEC 60950-1:2005 + A1:2009
EN 60950-1:2006 + A1:2010 + A11:2009 + A12:2011 + A2:2013
IEC 60601-1:2005 + A1:2012
EN 60601-1:2006 + A1:2013 + A12:2014
ANSI/AAMI ES 60601-1:2005 + R1:2012
CAN/CSA C22.2 No. 60601-1:2014EMI specific:
IEC 60601-1-2:2014 (ed.4)
EN 60601-1-2:2015 (ed.4)
FCC part 15 Class B
ICES-001 Level B
VCCI (Japan) PendingEnvironmental:
China Energy Label, EU RoHS, China RoHS, REACH, Canada Health, WEEE, Packaging Directive

Supplied accessories	User guide Documentation disc System sheet Video cables Mains cables USB cable
Optional accessories	Display controller Touch pad
QA software	QAWeb
Warranty	5 years, including 40000 hrs backlight warranty
Operating temperature	0 °C to 35 °C (15 °C to 30 °C within specs)
Storage temperature	-20 °C to 60 °C
Operating humidity	20% to 85% (non-condensing)
Storage humidity	20% to 85% (non-condensing)
Operating pressure	70 kPa minimum
Storage pressure	50 to 106 kPa

WHAT YOU GET

Barco Coronis MDCC-4430 4MP Color Fusion Diagnostic LCD Display System with LED backlights. One MDCC-4430 without Video Card. CORONIS 4MP FUSION COLOR. 5-year manufacturer’s warranty.
