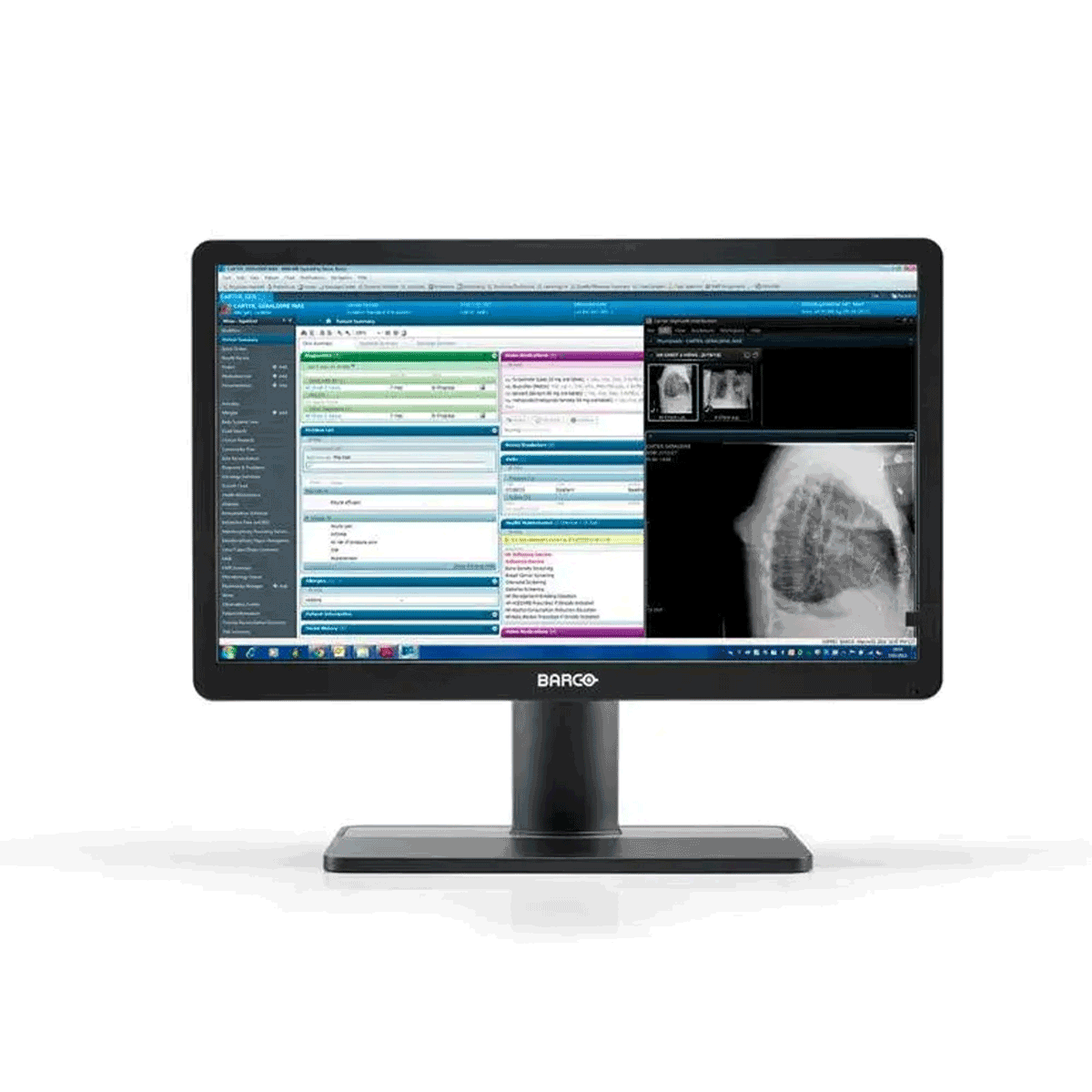

Barco Eonis MDRC-2422 22-inch Clinical Review Display
- 22” display for reviewing clinical images
- Front sensor for consistent images
- Automated calibration & QA
- Model: MDRC-2422 (MDRC2422)
- MPN: K9610941B, K9610943B, K9610942B, K9610940B
MASTER DISTRIBUTOR
24X7 SUPPORT
COMPETITIVE PRICING
SAME DAY SHIPPING
VALUABLE CONSULTATION
Barco Eonis MDRC-2422 22″ Clinical Review Monitor
The Barco Eonis MDRC-2422 Eonis 22″ brings reliable, DICOM compliant images to a broad palette of imaging applications, including EMR. It combines consistent image quality and an attractive, versatile design with effortless quality assurance.
Easy collaboration with consistent images
Eonis presents sharp, bright images. The display’s unique front consistency sensor automatically aligns the image quality every time the display is switched on. The Eonis 22” can be used for consulting radiology and PACS images, as well as for clinical review and consultation.
Result? Consistent images that make collaboration between specialists easier. Discuss images with colleagues at multiple locations, knowing that everyone is viewing identical images.
Automated quality assurance
Eonis 22” comes with the cloud-based QAWeb Enterprise software, an online service for automated calibration, quality assurance and asset management.
Praised in hospitals around the world, QAWeb Enterprise allows healthcare IT and PACS administrators to centrally and remotely manage image quality across the healthcare organization, at the click of a button.
Fit for clinical review
Barco’s Eonis MDRC-2422 display features multiple mounting and interface options, including a VESA mount. The user-friendly height, tilt and pivot adjustments of the base allow the monitor to be positioned for maximum comfort.
Like every Barco clinical review display, the MDRC-2422 complies with international medical and patient safety standards.
Model: MDRC-2422 (MDRC2422)
Article numbers:
K9610941B – Eonis Color 2MP-22″ SNEW 1H: one MDRC-2422 Color Review Display, Standard brightness-No protective cover-External power supply-White, required accessories and US power cable
K9610943B – Eonis Color 2MP-22″SNIB 1H: one MDRC-2422 Color Review Display, Standard brightness-No protective cover-Internal power supply-Black, required accessories and US power cable
K9610942B – Eonis Color 2MP-22″ SPEW 1H: one MDRC-2422 Color Review Display, Standard brightness-Protective cover-External power supply-White, required accessories and US power cable
K9610940B – Eonis Color 2MP-22″STIB 1H: one MDRC-2422 Color Review Display, Standard brightness-Touch-Internal power supply-Black, required accessories and US power cable
Specifications
| Screen technology | LCD (AHVA) |
| Active screen size (diagonal) | 546 mm (21.5″) |
| Active screen size (H x V) | 476 x 268 mm (18.7 x 10.5″) |
| Aspect ratio (H:V) | 16:9 |
| Resolution | 2MP (1920 x 1080 pixels) |
| Pixel pitch | 0.248 mm |
| Color imaging | Yes |
| Gray imaging | Yes |
| Bit depth | 30 bit |
| Viewing angle (H, V) | 178° |
| Color Calibration(sRGB) | Yes, reading room selection |
| Front sensor (FLOS) | Yes, Front Consistency Sensor |
| Maximum luminance (panel typical) | 300 cd/m² |
| DICOM calibrated luminance | 180 cd/m² |
| Contrast ratio (panel typical) | 1000:1 |
| Response time ((Tr + Tf)/2) (typical) | 7.5 ms |
| Housing color | MDRC-2422 (options STIB and SNIB): RAL 9004 MDRC-2422 (options SNEW and SPEW): RAL 9003 |
| Video input signals | 1x DVI-I 1x DisplayPort 1x HDMI™ |
| USB ports | 1x USB 2.0 upstream (endpoint) 2x USB 2.0 downstream |
| Power consumption | 20 W (nominal) < 0.5 W (hibernate) < 0.3 W (standby) |
| Dimensions with stand (W x H x D) | Portrait: 337 x 525~602 x 201 mm Landscape: 514 x 388~498 x 201 mm |
| Dimensions w/o stand (W x H x D) | Portrait: 315 x 514 x 67 mm Landscape: 514 x 315 x 67 mm |
| Dimensions packaged (W x H x D) | 700 x 240 x 460 mm |
| Net weight with stand | MDRC-2422 (option STIB): 6.5 kg MDRC-2422 (option SNIB): 5.7 kg MDRC-2422 (option SNEW): 5.4 kg MDRC-2422 (option SPEW): 6.2 kg |
| Net weight without stand | MDRC-2422 (option STIB): 4.2 kg MDRC-2422 (option SNIB): 3.5 kg MDRC-2422 (option SNEW): 3.2 kg MDRC-2422 (option SPEW): 4 kg |
| Net weight packaged | MDRC-2422 (option STIB): 8.7 kg (without optional accessories) MDRC-2422 (option SNIB): 7.9 kg (without optional accessories) MDRC-2422 (option SNEW): 7.6 kg (without optional accessories) MDRC-2422 (option SPEW): 8.4 kg (without optional accessories) |
| Tilt | -5° to +22° |
| Pivot | 90° |
| Height adjustment range | 110 mm |
| Mounting standard | VESA (75 and 100 mm) |
| Touch Screen | Protective, anti-glare glass cover (MDRC-2422 option SPEW only) |
| Recommended modalities | All digital images, except digital mammography |
| Certifications | FDA Class I, 510(k) exempt CE (Medical Device Class I) CCC (China), BIS (India)Safety specific: AAMI ES60601-1:2005, ES60601-1:2005/AMD1 1:2012, ES60601-1:2005/ AMD2:2021 CAN/CSA-C22.2 NO. 60601- 1:14/A2:2022 IEC 60601-1:2005, AMD1:2012, AMD2:2020 EN 60601-1:2006/A1:2013/A12:2014/A2:2021 IEC 62368-1: 2018 EN IEC 62368-1:2020+A11:2020 IEC 60601-1-2: 2014 +A1:2020 EN 60601-1-2: 2015 +A1:2021 EMI specific: FCC part 15 Class B ICES-003 Level B VCCI Environmental: |
| Supplied accessories | 1x DisplayPort video cable 1x USB cable 1x printed User Guide (in English, other languages can be found on the documentation disc) 1x documentation disc 1x system sheet 1x Mains cable (based on ordered part number) |
| QA software | QAWeb |
| Warranty | 3 years |
| Operating temperature | 0 °C to 40 °C |
| Storage temperature | -20 °C to 60 °C |
| Operating humidity | 10% to 85% (non-condensing) |
| Storage humidity | 10% to 90% (non-condensing) |
| Storage pressure | 50 to 110 kPa |
