Barco MDSC-8232 M3D 31-inch 2D/3D 4K Surgical Display
- Perfect match for HD/4K 3D endoscopy cameras
- Fully compatible with 2D and 3D modes, FHD and 4K/UHD resolution
- BT.2020 & BT.709 compatible
- 3D ergonomic eye-shield included
- Medical-grade, easy to clean design
- MPN: K9352185
MASTER DISTRIBUTOR
24X7 SUPPORT
COMPETITIVE PRICING
SAME DAY SHIPPING
VALUABLE CONSULTATION

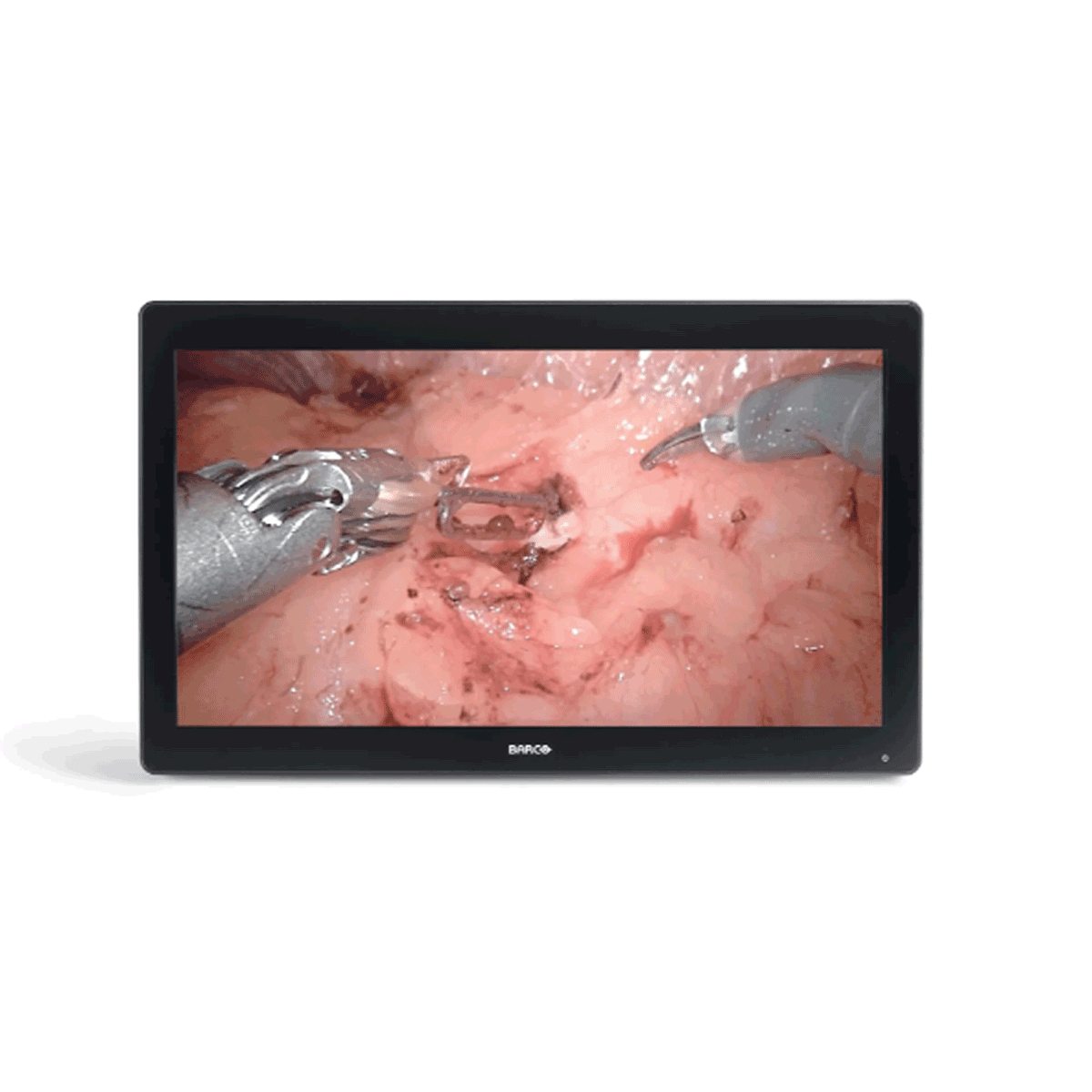

Barco MDSC-8232 M3D 31″ 2D/3D 4K Surgical Monitor
The Barco MDSC-8232 M3D is a 31-inch 2D and 3D surgical monitor that is compatible with Barco’s Nexxis video-over-IP solution.
100% compatibility with existing Nexxis installations
The display has a built-in MNA decoder, which means that it can be seamlessly integrated into an existing Nexxis architecture, just like any other Nexxis source. In a Nexxis configuration, the monitor is compatible with the most common 3D and 2D video formats typical of modern microscopes and laparoscopic camera systems. 3D sources become part of the full integration, including support for inter-OR sharing, remote management, streaming and recording.
3D technology as part of your digital OR
The Barco MDSC-8232 M3D display is based on a circular polarization technology for 3D visualization with passive glasses. Thanks to the Nexxis integration, it automatically switches between 2D and 3D modes to show the video source in its best suitable format.
Visual comfort in a wide viewing area
In 3D mode, multiple users at the same time will be able to see the image with excellent depth perception and no visual discomfort in a large viewing area. The display also provides HD and 4K image quality with high color accuracy, detailed images and no artifacts. Near-zero latency enables optimal hand-eye coordination.
The Barco MDSC-8232 M3D full-glass front surface is durable and scratch-resistant make the display easy to clean. The designed in standard VESA-100 mounting plate allows easy mounting on surgical booms and spring arms.
Specifications
| Screen technology | TFT AM LCD / IPS-PRO technology / LED backlight |
| LCD panel active screen size (diagonal) | 789 mm (31.1″) |
| LCD panel active screen size (H x V) | 698 x 368 mm |
| LCD panel aspect ratio (H:V) | 17:9 / 16:9 |
| LCD panel resolution | 4K / 2K (4096 x 2160) / UHD (3840 x 2160) |
| Pixel pitch | 0.1704 mm |
| Color support | 1073 million (10-bit) |
| Color gamut | Native: 92% DCI-P3 / 105% Adobe |
| Viewing angle (H, V) | 178° Hor. / 178° Vert. |
| Luminance | Max: 450 cd/m² (typ.) @6500K: 360 cd/m2 calibrated |
| Contrast ratio | 1300:1 (typ.) |
| LCD response time (CR≥ 10) | T on + T off (i.e. rise + fall): 20 ms (typ.) |
| WWhite point | Native: 7200K Calibrated: 5600K, 6500K, 9300K |
| Gamma | 1.8, Video, 2.2, 2.4, DICOM |
| Keyboard | Capacitive 7-key touch keyboard |
| Video input signals | 2D Input signals: 4K-UHD resolution 1x DP 1.1 up to 4096 x 2160 @30Hz 2x DP 1.1 up to 2048 x 2160 @50Hz/60Hz 1x DP 1.2 MST up to 4096 x 2160 @50Hz/60Hz 2x f.o. SFP + for Nexxis link FHD resolution (upscaled to 4K) 1x DVI 1x 3G-SDI 3D Input signals: 4K-UHD resolution 1x DP 1.1 up to 3840 x 2160 @30Hz 2x DP 1.1 up to 1920 x 2160 @50Hz/60Hz 1x DP 1.2 MST up to 3840 x 2160 @50Hz/60Hz 2x f.o. SFP + for Nexxis link FHD input 1x DVI 1x 3G-SDI |
| Video output signals | 2D Mode: 1x 3G-SDI (input loop through) 1x DVI (4K display screen clone -downscaled to 1080i/1080p) 3D Mode: 1x DVI (selectable Left or Right view -downscaled to 1080i/1080p) |
| Power consumption (Max) | 190W (Max) / 24V ± 10% Low power mode: 52W Power-off: ~ 1W |
| External power supply | AC input: 100 – 240 VAC / 47-63 Hz auto-switch DC output: +24 VDC / 10 A |
| Dimensions display (W x H x D) | 980 x 630 x 200 mm (35.4 x 24.8 x 7.9 in) |
| Net weight display | 15.3 kg (33.7 lbs) |
| Net weight packaged | 21 kg (45.8 lbs) |
| Mounting standard | 100×100 & 200×100 mm VESA |
| Certifications | ANSI/AAMI ES60601-1 (2005 + C1:09 + A2:10 + A1:2014) CSA CAN/CSA-C22.2 NO. 60601-1:14 IEC 60601-1 Edition 3.1 (2012) EN 60601-1: 2006 + CORR:2010 + A1:2013 + A12:2014 IEC 60601-1-2 (2014) EN 60601-1-2 (2015) FCC CFR 47 Part 15 Subpart B GB17625.1-2012; GB4943.1-2011; GB/T9254-2008 Green Compliance ROHS-3, REACH, WEEE |
| Protection rating | IP20 (IP45 front side only |
| Operating temperature | Operating: 0° ÷ 30° C |
| Storage temperature | Storage: -20° ÷ 60° C |
| Operating humidity | Operating: 10% ÷ 90% R.H. (non-condensing) |
| Storage humidity | Storage: 5% ÷ 90% R.H. (non-condensing) |
| Warranty | 3 years |
