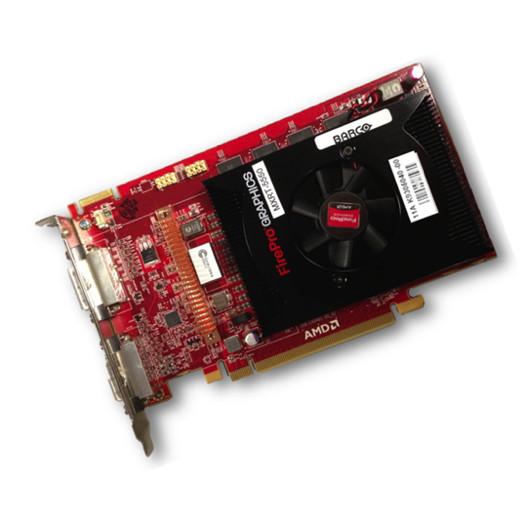

Barco MXRT-5550 – 3D PCIe Dual-DVI Display Controller – MXRT-5550 / K9306040
The MXRT-5550 display controller delivers the performance, quality and stability required for today’s 3D imaging applications in healthcare.
The powerful GPU ensures ultra-fast and smooth image loading, roaming and manipulation of images with up to 5.8 MP grayscale resolution. The board features 2 DVI connectors, providing a solid solution for upgrades.
Discontinued
MASTER DISTRIBUTOR
24X7 SUPPORT
COMPETITIVE PRICING
SAME DAY SHIPPING
VALUABLE CONSULTATION
Flexible projection configurations
The MXRT-5550 display controller is available with Barco’s Conference CloneViewTM software, which enables accurate projection of medical images onto a large-screen display.
The software tool ensures effortless cloning, scaling, zooming and panning of medical images on the large screen, making Barco displays and controllers perfectly suited for use in teaching hospitals, auditoriums and (tele)conference rooms.
- 2 DVI-I video outputs
- PCIe 3.0 compliant
- 2 GB GDDR5 display memory
- Single-wide form factor
- Powered by AMD’s scalable FirePro workstation GPU
Specification
| Bus compatibility | PCIe Gen3 x16 |
|---|---|
| Power consumption | 75 W |
| Form factor | 184.15 mm (7.2″)(L) x 111 mm (4.4″) (H) single PCIe slot wide |
| Operating system | Windows 7 – 32/64-bit Windows 8.1 – 32/64-bit |
| Platforms | Intel® and AMD architectures |
| Graphics accelerator | ATI FirePro TM |
| Display memory | 2 GB GDDR5 |
| Memory interface | 256-bit |
| Memory bandwidth | 102.3 GB/s |
| Pixel depth | 32-bit pixels (supports 8-bit and 10-bit per color channel) |
| Electrical standard | Dual-Link DVI |
| Direct3D hardware support | Microsoft® DirectX v11.1, Vertex Shader 5.0, Pixel Shader 5.0 |
| OpenGL hardware support | OpenGL 4.2 |
| OpenCL hardware support | OpenCL 1.2 |
| Connectors | 2- DVI-I |
| Supported resolutions | Up to 5.8MP grayscale at full refresh rate (VGA at boot-up) |
| Approvals and compliance | FCC Part 15 Class B, EN 55022 Limit B, EN 55024, UL-60950-1, BMSI CNS, CISPR- 22/24, IEC60950-1, VCCI, CSA C22.2,EU RoHS directive (2011/65/EC), Certificate of Information & Communication Equipment (Republic of Korea) |
| Operational temperature | 0° to 60°C (32° to 140° F) |
