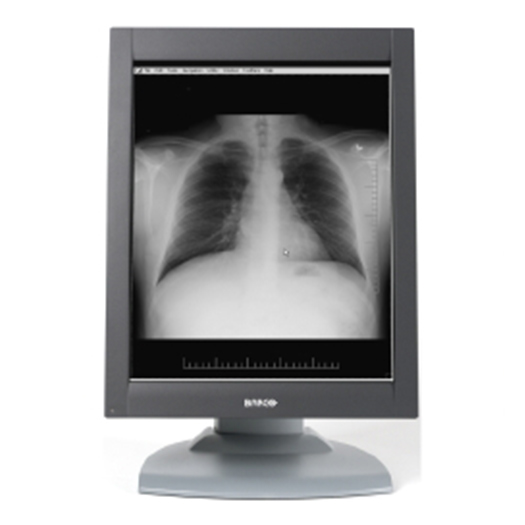

Barco NIO 5.8MP Grayscale with IPS technology


Discontinued – Replaced by http://medicaldisplaysforless.com/product_detail.cfm?pk_product=597

Nio 5MP (MDNG-6121) is a flexible single head diagnostic display system with a resolution of 2096 x 2800 vs the standard 5MP resolution of 2084 x 2560 .


Replaced with New Product

Thanks to its high luminance and contrast, Nio 5MP is a perfect solution for a wide range of medical imaging applications, such as X-ray, PACS, MRI, angiography, computed tomography and mammography on PACS.

Long-term image confidence
Backlight Output Stabilization technology guarantees fast power-up and continuously stabilizes the luminance output of the LCD’s backlight. This significantly improves the overall optical efficiency of the display system and provides long-term image stability.

Perfect color matching
Every multi-head Nio 5MP display system is carefully color matched to guarantee that the color characteristics of all displays in the system are perfectly consistent.

Nio 5MP provides image crispness and an excellent viewing angle in a 2096 x 2800 resolution.

The Nio 5MP display system includes:

  • One or more 5 MegaPixel flat panel displays
  • MediCal QAWeb software for automated calibration and Quality Assurance
  • A BarcoMed PCIe display controller


  • High-brightness, image crispness and an excellent viewing angle
  • High-speed display controllers for maximum workflow efficiency
  • Continuous diagnostic confidence with Barco’s MediCal QAWeb program for Quality Assurance of PACS displays
  • Long-term image confidence with Barco’s Backlight Output Stabilization (BLOS) technology
  • Perfect color matching between displays
  • Protective front cover, protecting the valuable LCD against damage from intensive use in clinical rooms


Technology TFT AMLCD dual domain IPS
Pixel pitch 0.154 mm
Active screen diagonal 540.9 mm (21.3″)
Active screen width 432 mm (17″)
Active screen height 324 mm (12.8″)
Color imaging No
Gray imaging Yes
Resolution 5MP (2096 x 2800 / 2800 x 2096)
Luminance 1100 cd/m² (Max.)
500 cd/m² (Calibrated)
Contrast 1000:1 (Typ.,dark reading room)
Viewing angle 170° (Hor./Vert.)
Look up table 10 bit grayscale
Video inputs DVI
Image stabilization Backlight sensor BLOS
Dimensions Portrait: 385 x 585 x 250 mm (15.16 x 23.03 x 9.8″)(W x H x D)
Landscape: 485 x 535 x 250 mm (19.1 x 21.1 x 9.8″)(W x H x D)
Weight 12.3 kg (27.1 lbs)
Power consumption 78 W (Typ.)
Approvals CE, UL60601, CSA C22.2 No 601.1, IEC60601, EN 60601-1-2, FDA 510k, FCC level B
Operating temperature 0 to +35°C (32 to 95°F)
Ambient Light Compensation (ALC) No
Uniform Luminance Technology No
Warranty 5 years
Graphics card MXRT-5200


Nio brochure

Nio technical specifications

Barco medical display systems brochure

Image.Care brochure

White papers

10 reasons to use a medical display system

Medical displays give radiologists an edge

NIO Grayscale 5.8MP with Display Controller: 1 X 5.8MP Grayscale Display MDNG-6121; 1 X MXRT-5200 Display Controller; 1 X Medical QAWeb Agent Software; ALL cables, drivers and accessories; Individual pedestal(s)

List Price – $10,899.00

SKU: K9601605 / MDNG-6121 Category:
