NEW! Barco 21" 2MP Clinical Review Display MDRC-2321 SNIB - MDRC2321 / K9350053
Barco Coronis MDCC-6530 6MP Dual Head Color LED Fusion with MXRT-8700 Video Card - MDCC-6530 / K9602993
NEW! 2MP Eonis 21
2MP Medical Clinical Eonis 24.1'' - MDRC-2224 / K9301808A
Barco 24” Touch Screen Clinical Review Display MDRC-2324 HTEW - K9350071

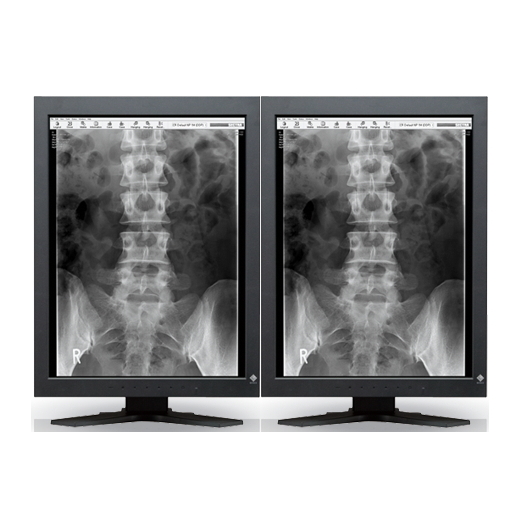

Dual Head 2MP EIZO Radiforce Monochrome – GS220-CL-DH-N200D5DE
To ensure the most accurate and consistent shadings possible, EIZO carefully measures and sets every grayscale tones on the production line to produce a monitor compliant with DICOM Part 14.
Replaced with New Product
Brightness Uniformity for a Steadier Image Across the Screen
The Digital Uniformity Equalizer (DUE) function provides optimum brightness uniformity which is difficult to attain due to the characteristics of LCD monitors.
Mode Selection for Optimum Viewing
Selectable with the front panel buttons, the CAL Switch function allows for various imaging modes of different modalities such as CR, CT, and endoscope images. Furthermore, auto mode settings can be made with the Auto CAL Switch function.
Wide Viewing Angles for Multiple People Use
Wide Viewing angles with minimal color shift when viewed from the side.
Versatile Positioning for Improved Operability
EIZO’s highly versatile stand offers tilt, swivel and a wide height adjustment range enabling you to use the monitor with greater comfort.
Customer Assurance with Medical Standards
Meets the strictest medical, safety, and EMC emission standards.
Warranty with Safety and Trust
EIZO and its authorized distributors offer a five-year limited warranty.
Consistency with DICOM Part 14 Calibration
With the bundled RadiCS LE quality control software, a simplified calibration compliant with the DICOM Part 14 standard can be performed to correct the brightness and grayscale tones of the monitor ensuring the most accurate and consistent shadings possible over time.
10-Bit Simultaneous Grayscale Display
10-bit (1,024 tones) from a 13-bit look-up table (8,161 tones) can be displayed simultaneously for high-definition medical imaging.
10-bit graphics board and 10-bit viewer software needed for 10-bit display.
10-Bit Simultaneous Grayscale Display
Quick Brightness Stabilization for Instant Viewing
At startup or upon wakeup, the EIZO patented drift correction function quickly stabilizes the brightness level. In addition, a sensor measures the backlight brightness and compensates for brightness fluctuations caused by the ambient temperature and the passage of time.
Brightness Stability Within Usage Time Guaranteed
EIZO’s confidence in its product quality extends to brightness stability which is also covered during the usage time specified in the warranty.
|Model Variations|| GS220-CL: Clear Base
|Type||TFT Monochrome LCD Panel (IPS)|
|Size||54 cm / 21.3″ (541 mm diagonal)|
|Native Resolution||1200 x 1600|
|Display Size (H x V)||324.0 x 432.0 mm|
|Pixel Pitch||0.270 x 0.270 mm|
|Grayscale Tones||1,024 from a palette of 8,161 tones|
|Viewing Angles (H / V, typical)||170°, 170°|
|Brightness (typical)||1,000 cd/m2|
|Recommended Brightness for Calibration||500 cd/m2|
|Contrast Ratio (typical)||850:1|
|Response Time (typical)||23 ms (On/Off)|
|Input Terminals||DVI-D x 1|
|Digital Scanning Frequency (H / V)|| 31 – 100 kHz / 48 – 71.5 Hz (VGA Text: 69 – 71 Hz)
Frame synchronous mode: 59 – 61 Hz
|Function||1 upstream, 2 downstream|
|Power Requirements||AC 100 – 120 V, 200 – 240 V: 50 / 60 Hz|
|Maximum Power Consumption||100 W|
|Power Save Mode||Less than 3 W|
|Power Management||DVI DMPM|
|Features & Functions|
|Digital Uniformity Equalizer||Yes|
|OSD Languages|| English, German, French, Italian, Japanese, Simplified
Chinese, Spanish, Swedish, Traditional Chinese
|Net Weight||9.9 kg|
|Net Weight (Without Stand)||6.9 kg|
|Hole Spacing (VESA Standard)||100 x 100 mm|
|Certifications & Standards (Please contact the EIZO group company or distributor in your country for the latest information.)||CE (Medical Device Directive), EN60601-1, UL60601-1, CSA C22.2 No. 601-1, IEC60601-1, VCCI-B, FCC-B, Canadian ICES-003-B, C-tick, RoHS, CCC, GOST-R|
|FDA 510(k) Clearance|| Yes
(for General Radiography)
|Supplied Accessories||AC power cord, signal cable (DVI-D – DVI-D), USB cable, Utility Disk (RadiCS LE, ScreenManager Pro for Medical), user’s manual, warranty card|
Please note that you must be a registered user to download RadiForce relevant files. If you have not registered, please continue on to our registration page. If you have forgotten your User ID or Password, please send us an e-mail.
|RadiForce GX220 / GS220 (English)||English||2.75 MB|
|ScreenSlicer Ver.1.1.2 Software manual (English)||English||1.75 MB|
RadiForce 2MP mono Dual Head LCD system bundle with 2x GS220 displays and 1x NVIDIA Quadro Q2000D PCIe x16 video card
Patient Monitor Replacement LCDRead more
New Replacement Patient Monitoring and Medical Modality LCD
This medically certified, plug and play LCD is a cost-effective upgrade to existing CRT and LCD units.
GE Solar 8000
GE Solar 8000M
GE Solar 9500
Hewlett Packard M1097
Marquette Solar 8000
Marquette Solar 8000M
Marquette Solar 9500
SPACELABS 1500 UltraView
SPACELABS 90363 UltraView
SPACELABS 1700 UltraView
SPACELABS 90387 UltraView
Many Other Manufacturers and Models
We have an extensive cross indexed database of models and manufacturers. Call us for an exact replacement that saves major $$ over the OEM price.
GE 19 inch
2MP Totoku 21.3” Color LED Display – CCL258i2Read more
Thanks to the new energy saving LED backlight LCD, CCL258i2 provides more stability in image quality for a long period of time.
High bright color display CCL258i2 is an ideal system for diagnostic viewing in multi-modality environment. CCL258i2 is an optimal solution where doctors need to view both grayscale and color images, and effectively covers multiple applications like PACS, CAD, PET and nuclear medicine.
JVC/Totoku 1.3MP 19 – ME195Read more
The JVC/Totoku ME195 LED backlight system provides more stability in images as well as energy saving. Compared to the conventional CCFL backlight models, ME195 saves about 20% energy and will hold brightness much longer. Additionally, mercury-free LED backlight contributes to reduce the environmental impacts.
Luminance Stabilizing System
Built-in luminance sensor consistently monitors and accurately stabilizes luminance on the screen to optimize image quality all the time.
Overstock Pricing! Call for details
Dual Head 3MP Barco Nio High Bright Color including MXRT-6700 – MDNC-3421 / K9602989
$10,330.00Add to cart
- High-bright and power-efficient LED backlights
- Accurate grayscale and color rendering
- Front sensor and MediCal QAWeb for easy DICOM conformance
- High-performance 3D rendering with full 3D, OpenGL and DirectX support
- Best image quality on the market for 3MP color
- Automated Quality Assurance and calibration for stable DICOM images
- Fully-tested system solution from a single source, for ultimate peace of mind
