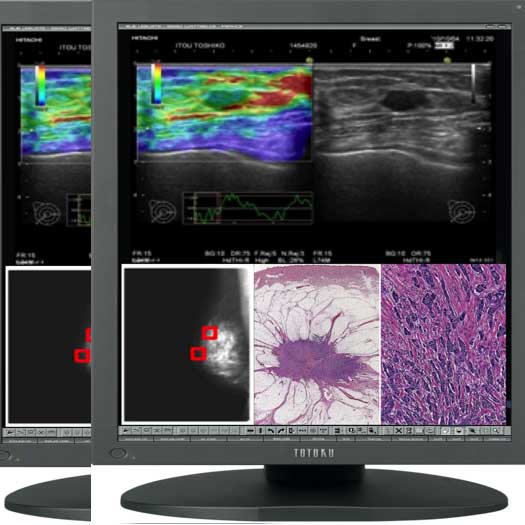

Dual Head 5MP JVC/Totoku Color – CCL550i2-DH-M2000
The first FDA cleared 5M color display for digital mammography. All in one solution for multi modality visualization.
The First FDA Cleared 5M Mammography Color Display
CCL550i2 ensures confidence in reading digital mammography without compromising brightness and contrast. Ultrasound, CT, MRI images can also be displayed on single screen for an effective diagnostic practice.
Call for Replacement Option
MASTER DISTRIBUTOR
24X7 SUPPORT
COMPETITIVE PRICING
SAME DAY SHIPPING
VALUABLE CONSULTATION
The First FDA Cleared Dual Head 5MP Mammography Color Display, the CCL550i2 ensures confidence in reading digital mammography without compromising brightness and contrast. Ultrasound, CT, MRI images can also be displayed on one screen.
Dual head with two (2) 5MP LCD displays with matching M2000 video card. Specs: LED backlight system,21.3-inch color, Contrast Ratio: 1300:1 (typ), Maximum Luminance: 1000 cd/m² (typ), 500 cd/m² / 410 cd/m² (calibrated). 5 year manufacturer’s warranty.
Specification
| Model Name | CCL550i2 /AR (AR coating) CCL550i2 /F (Protective filter) CCL550i2 /N (No protective) |
|
|---|---|---|
| LCD Panel | Technology | 21.3-inch color TFT IPS technology |
| Display Area | 338 mm x 422 mm | |
| Pixel Pitch | 0.165 mm x 0.165 mm | |
| Contrast Ratio | 1300:1 (typ) | |
| Maximum Luminance | 1000 cd/m² (typ) 500 cd/m² / 410 cd/m² (calibrated) |
|
| Viewing Angle | 176° horizontal and vertical (typ) | |
| Visual Performance | Native Resolution | 2048×2560 |
| Display Colors | 16.77 million colors from a palette of 280 trillion colors 1.06 billion colors with DisplayPort and 10-bit viewer |
|
| Interface | Input Signal | DVI-D (DVI 1.0 compliant) DisplayPort (DisplayPort 1.1a compliant) |
| Plug and Play | DDC2B compliant | |
| Input Power Supply | Input Power Supply | 100V – 240V 50/60Hz |
| Maximum Power Consumption | 95W (typ) Power management feature |
|
| Features | Calibration Control | Luminance, Gamma, Color temperature Storing 3 sets of LUT |
| OSD Information Display | Model name, Serial No., Total operating time, Calibration settings (Operating time since last calibration, Luminance, Gamma), Current luminance | |
| USB Hub | USB Rev.2.0 compliant, Self-powered, USB upstream connector (x1), USB downstream connector (x2) | |
| Other Features | Luminance / color uniformity correction, Hardware pivot, LED indicator, Configuration selection | |
| Approvals | ANSI/AAMI ES60601-1(2005), CAN/CSA-C22.2 No. 60601-1(2008), FDA 510(k), FCC-B, ICES-003-B,CE, VCCI-B | |
| Physical Characteristics | Dimensions (WxHxD) | Landscape : 475 mm x 483 / 544 mm x 220 mm Portrait : 390 mm x 525 / 587 mm x 220 mm |
| Weight | 12 kg | |
| Tilt Stand | Tilt, Swivel, Portrait / Landscape | |
| Mount | VESA standard (100 mm x 100 mm) | |
| Security Slot | Anti-theft security slots (display and tilt stand) | |
| Accessories | Power cord, DVI cable, DisplayPort cable, USB cable, User manual, Cleaning kit* *AR coating model only |
|
