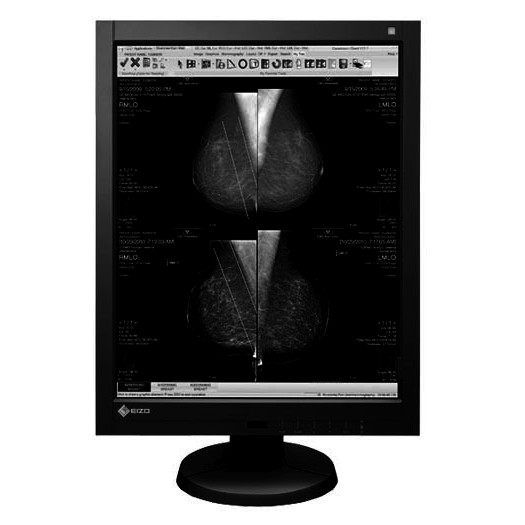

EIZO 5MP MONOCHROME LCD MONITOR – GX530-CL-P-BK

High Contrast Ratio of 1200:1

The high contrast ratio brings out the subtle differences in similar shades of gray and sharper rendering of details when displaying monochrome images such as the digital mammography, MRI, and ultrasound images.

High Contrast Ratio of 1200:1
High-Resolution

“Information volume” of a digital mammography image should exceed 5 million pixels. When a lower resolution monitor displays this “Information volume”, the monitor stretches the information forcing the mosaic to appear as shadings. With a 2048 x 2560 resolution or 5.24 million pixels, the stretching effect is minimized and the mosaic becomes suitable for rendering subtle masses and calcifications, within the mammography image.
10-Bit Simultaneous Grayscale Display

10-bit (1,024 tones) simultaneous grayscale display extends grayscale fidelity to the boundaries of human visual perception abilities and helps radiologists discern the finest nuances within an image.

10-bit graphics board and 10-bit viewer software needed for 10-bit display.

Wide Viewing Angles for Multiple People Use

Wide Viewing angles with minimal color shift when viewed from the side.
Smooth Response with Dual Link

With dual link input support, monitors achieve a clock frequency of 50 Hz even when displaying in high resolution. This enables smooth response when adjusting window level or width through the DICOM viewer application compared to single link connection.

Graphics board with dual link compatibility required.

Long Service Life with the High Brightness

When used at the recommended brightness for calibration of 500 cd/m2, the monitor offers a long usage time guarantee of 40,000 hours. This contributes to a reduction in long-term asset management and maintenance costs.
Backlight Saver

With ScreenManager Pro for Medical utility software installed, the Backlight Saver function turns off/on the monitor’s backlight in conjunction with the screen saver or the viewer application. This function helps to reduce power consumption when the monitor is used for a prolonged period of time.
Next Generation Connectivity

Next-generation DisplayPort connectivity allows a large volume of information transmitted at once, which means the monitor can more easily adapt to high resolution or multi-grayscale display.
High-Definition and High-Density

Pixel size of 0.165 mm provides high-definition and high-density display without shadings appearing granular.
Easy Calibration with Integrated Front Sensor

An Integrated Front Sensor housed within the front bezel performs calibration compliant to DICOM Part 14. The sensor does not interfere with the viewing area and is protected from inadvertent damage or removal.
DICOM Part 14 Factory Adjustment

To ensure the most accurate and consistent shadings possible, EIZO carefully measures and sets every grayscale tones on the production line to produce a monitor compliant with DICOM Part 14.
Quick Brightness Stabilization for Instant Viewing

At startup or upon wakeup, the EIZO patented drift correction function quickly stabilizes the brightness level. In addition, a sensor measures the backlight brightness and compensates for brightness fluctuations caused by the ambient temperature and the passage of time.
Mode Selection for Optimum Viewing

Selectable with the front panel buttons, the CAL Switch function allows for various imaging modes of different modalities such as digital mammography, ultrasound, and MRI images. Furthermore, with ScreenManager Pro for Medical installed, auto mode settings can be made with the Auto CAL Switch function.
Brightness Stability Within Usage Time Guaranteed

EIZO’s confidence in its product quality extends to brightness stability which is also covered during the usage time specified in the warranty.
Presence Sensor for Power Savings

The presence sensor feature unites convenience with savings by ensuring that the monitor conserves power when it is not in use. The presence sensor prompts the monitor to switch to power save mode when it detects the user is away from the monitor, and then resume normal operation when the user returns.
Pairing Monitors

EIZO offers the same color and grayscale for two monitors bundled as a pair in one box.
Customer Assurance with Medical Standards

Meets the strictest medical, safety, and EMC emission standards.
Digital Mammography Monitor Quality Control Standards Compliance

EIZO’s easy-to-use RadiCS UX1 quality control tool (sold separately) performs precise calibration conforming to DICOM Part 14 and enables quality control complying with ACR Practice Guideline and other QC standard for digital mammography monitors.
5 Year Warranty

EIZO and its authorized distributors offer a five-year limited warranty.

RadiForce 5MP 21.3″ LCD Display clear base Monochrome, Integrated Front Sensor(IFS), 2048×2560, Digital Input, 1,200 cd/m2, Viewing Angle H:170/V:170, Contrast Ratio 1200:1, Dual Link DVI, DisplayPort, 25 ms Response Time, FlexStand, Certifications UL2601, FCC-B, FDA510K Mammo, 5 Year Warranty.
