Eizo EX2742 27-inch 4K UHD Surgical Display
- 27-inch LCD monitor with 4K UHD resolution (3840 x 2160 pixels)
- Exact color rendering (BT.2020)
- HDR support
- Optical Bonding
MASTER DISTRIBUTOR
24X7 SUPPORT
COMPETITIVE PRICING
SAME DAY SHIPPING
VALUABLE CONSULTATION
Eizo CuratOR EX2742 27-inch 4K UHD Surgical Monitor – Sales, Repair Service & Exchange

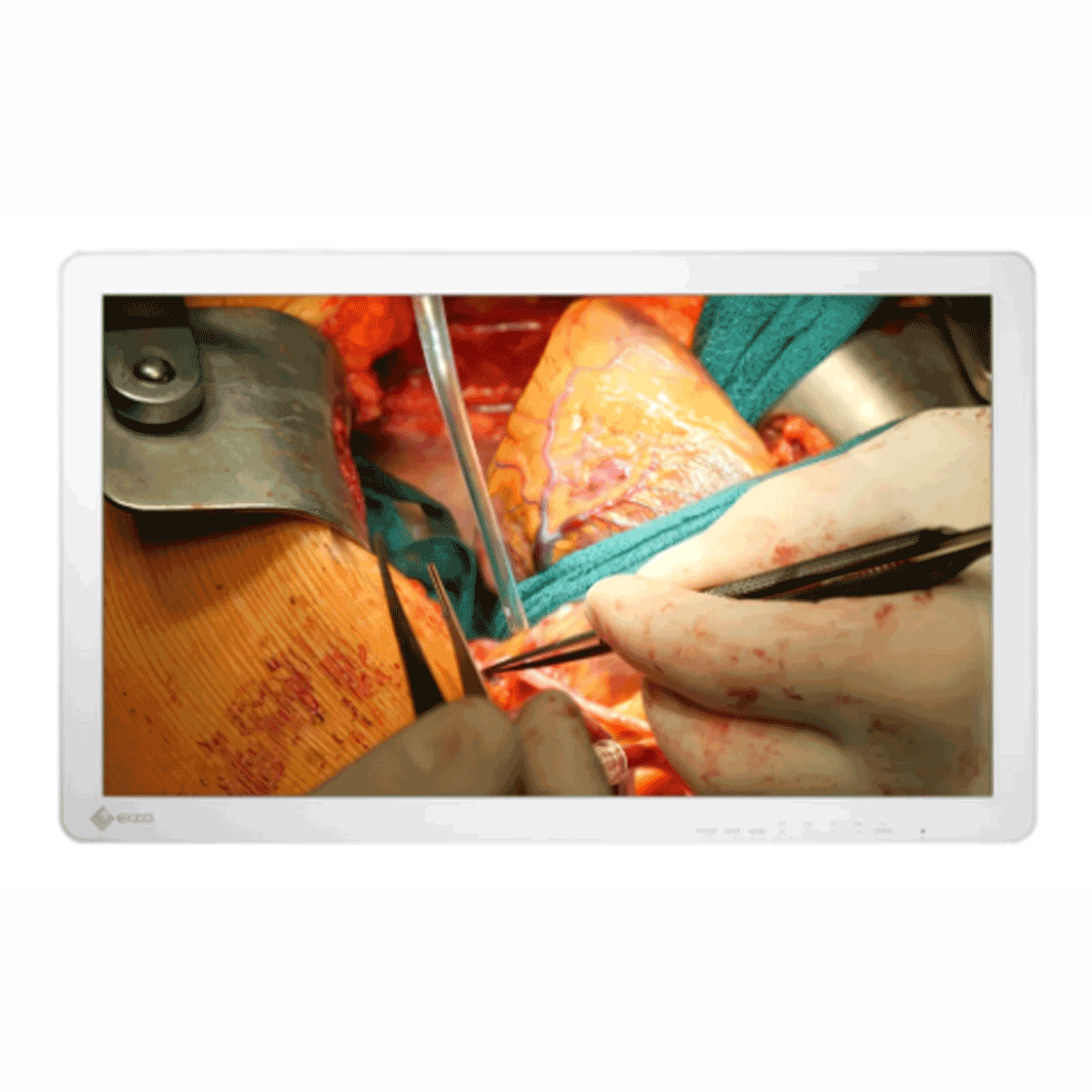

Introducing the Eizo EX2742 surgical monitor in 27″ widescreen format with 4K UHD (3840 x 2160 pixels) resolution and high brightness for endoscopy, microsurgery and other high-precision procedures.
4K UHD Surgical Imaging
The monitor’s 4K UHD resolution (3840 x 2160 pixels), four times that of full HD, faithfully reproduces surgical images from endoscopic and microscopic cameras, revealing fine details that standard full HD monitors may miss.
Clear Display with High Brightness and High Contrast Ratio
The monitor features an energy-efficient LED backlight with a high brightness of 820 cd/m². The high contrast ratio of 2000:1 delivers sharp disticntion between dark and bright areas. Furthermore, optical bonding eliminates the air gap between the protective glass and the LCD panel, reducing reflections from ambient light. This enhances depth in dark tones and maintains high visibility even under bright surgical lighting.
Ensure your Eizo EX2742 surgical display monitor operates at peak performance with our specialized repair service. Our expert technicians are equipped with the knowledge and tools to diagnose and fix any issues, restoring your printer to its original functionality. With a focus on quality and efficiency, we guarantee a swift turnaround time, minimizing downtime and keeping your operations running smoothly. Trust us to enhance the longevity of your printer and maintain the high-quality output you expect.
Support
Model: EX2742
Specifications
| Miscellaneous | |
| Model Variations | EX2742-WT: without stand, white |
| Certifications & Standards | CE / UKCA (Medical Device), cTÜVus, IEC/EN60601-1, VCCI-B, FCC-B, CAN ICES (B), RCM, RoHS, China RoHS, WEEE, CCC, BIS |
| FDA | Pending: Class II |
| Supplied Accessories | AC power cord, AC adapter, screws for VESA adapter x 8, cable cover, Utility Disk (PDF installation manual), instructions for use |
| Panel | |
| Panel Type | IPS, protective glass, optical bonding |
| Backlight | LED |
| Size | 27″ (68.4 cm) |
| Native Resolution | 3840 x 2160 (16:9 aspect ratio) |
| Viewable Image Size (H x V) | 596.2 x 335.3 mm |
| Pixel Pitch (H x V) | 0.155 x 0.155 mm |
| Display Colors | 10-bit colors (SDI / DisplayPort / HDMI): 1.07 billion colors (maximum) 8-bit colors: 16.77 million colors |
| Viewing Angles (H / V, typical) | 178° / 178° |
| Brightness (typical) | 820 cd/m² |
| Contrast Ratio (typical) | 2000:1 |
| Response Time (typical) | 22 ms (black-white-black) |
| Color Gamut (typical) | BT.2020 emulation |
| Video Signals | |
| Input Terminals | DisplayPort (HDCP 1.3), HDMI (HDCP 1.4), BNC (12G-SDI), BNC (3G-SDI), DVI-D (HDCP 1.4) |
| Output Terminals | DisplayPort, BNC (12G-SDI), DVI-D |
| Digital Scanning Frequency (H / V) | 18 – 136 kHz / 23 – 71 Hz |
| Power | |
| Power Requirements | AC 100 – 240 V: 50 / 60 Hz |
| Power Output | DC 5V, 1A |
| Features & Functions | |
| Simultaneous Display | Picture-by-Picture (2 PbyP), Picture-in-Picture (PinP) |
| OSD Languages | English, German, French, Spanish, Italian, Swedish, Japanese, Simplified Chinese, Traditional Chinese, Russian, Portuguese |
| Communication Connector | RS-232C |
| Others | 180° rotation, mirroring |
| Environmental Requirements | |
| Degree of Protection | IP45 (Front), IP32 (Rear) |
| Physical Specifications | |
| Hole Spacing (VESA Standard) | 100 x 100 mm, M4, depth 5 – 9 mm |
