Eizo EX3245H 32-inch 4K UHD Surgical Display
- 32-Inch 4K UHD (3840 x 2160 pixels)
- Mini LED backlight
- HDR support
- Optical bonding
MASTER DISTRIBUTOR
24X7 SUPPORT
COMPETITIVE PRICING
SAME DAY SHIPPING
VALUABLE CONSULTATION

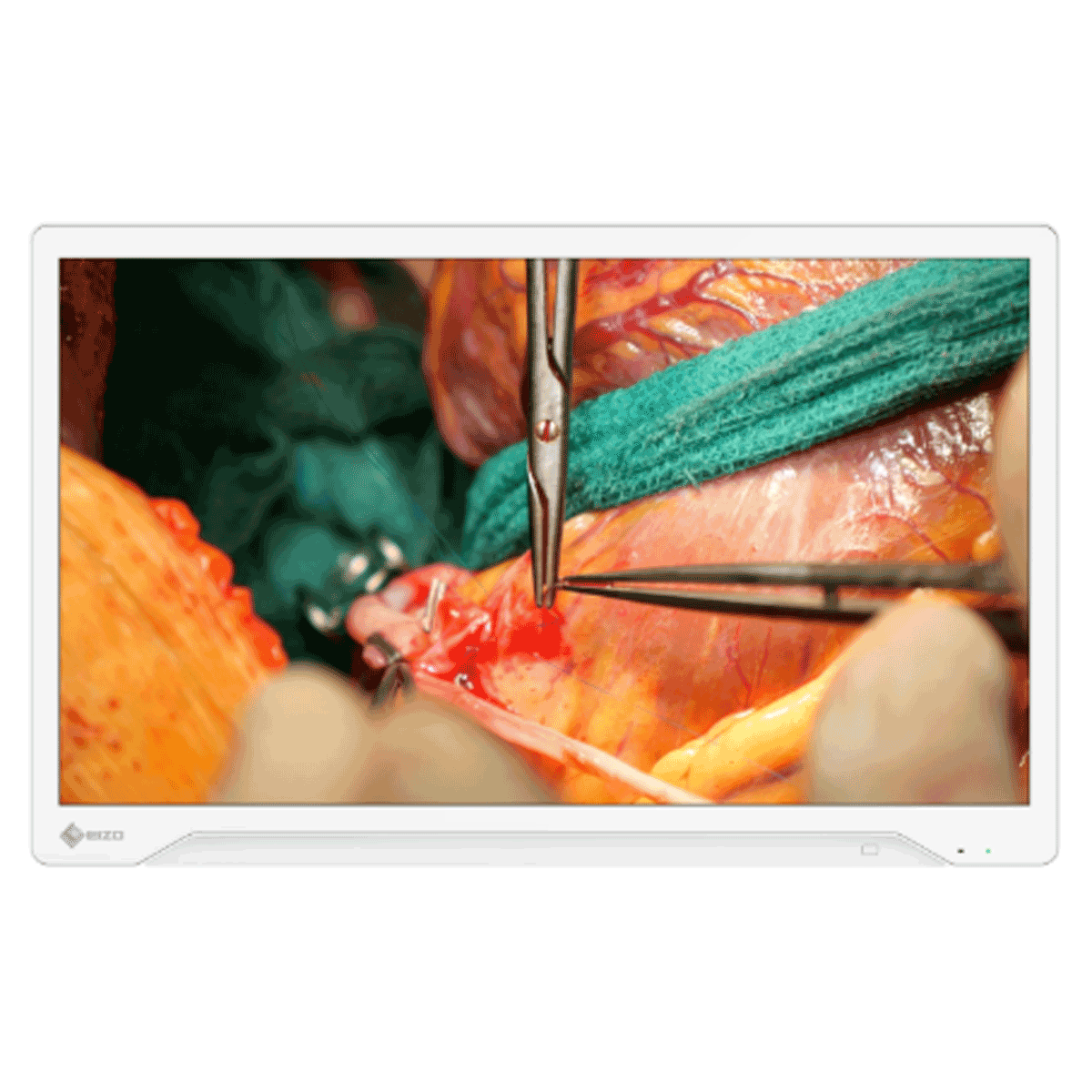

Eizo EX3245H 32″ 4K UHD Surgical Monitor
Eizo EX3245H surgical monitor in 32″ widescreen format with 4K UHD (3840 x 2160 pixels) resolution, Mini-LED backlight with high brightness and contrast for endoscopy, microsurgery and robot-assisted procedures.
Mini LED + Local Dimming + EIZO Algorithm for Exceptional Brightness and Contrast
Conventional edge‑lit monitors position LEDs along the edges of the screen, limiting backlight control and weakening contrast. EX3245H employs a high‑density, full‑array Mini LED backlight to achieve a peak brightness of 1900 cd/m² and a contrast ratio of 1,000,000:1. The Mini LED backlight is divided into more than 2,000 local dimming zones, managed by EIZO’s unique control algorithm for precise, localized adjustment of brightness and contrast, clearly rendering fine blood vessels and tissue structures.
Reduced Reflections
The EX3245H employs optical bonding to enhance visibility. By filling the gap between the LCD module and cover glass with resin, optical bonding reduces ambient reflections and maintains high image clarity, even when is viewed from an angle. The bonded screen also minimizes washout, producing deeper blacks and ensuring excellent visibility under the bright lighting conditions of the operating room.
Specifications
| Miscellaneous | |
| Model Variations | EX3245H: SDVoE not supported, without AC adapter EX3245H-A: SDVoE not supported, with AC adapter EX3245H-S: SDVoE supported, without AC adapter EX3245H-SA: SDVoE supported, with AC adapter |
| Certifications & Standards | CE / UKCA (Medical Device), cTUVus, IEC/EN60601-1, VCCI-B, FCC-B, CAN ICES (B), RCM, RoHS, China RoHS, WEEE, CCC, BIS |
| FDA | Pending: Class II |
| Supplied Accessories | EX3245H-A, EX3245H-SA: AC power cord, AC adapter, screws for VESA adapter x 4, connector cover, Utility Disk (instructions for use, installation manual) EX3245H, EX3245H-S: AC power cord, screws for VESA adapter x 4, cable cover, Utility Disk (instructions for use, installation manual) |
| Panel | |
| Panel Type | IPS, protective glass, optical bonding |
| Backlight | Mini LED |
| Size | 32.0″ (81.3 cm) |
| Native Resolution | 3840 x 2160 (16:9 aspect ratio) |
| Viewable Image Size (H x V) | 708 x 399 mm |
| Pixel Pitch (H x V) | 0.185 x 0.185 mm |
| Display Colors | 10-bit colors (SDI / DisplayPort / HDMI / SDVoE): 1.07 billion (maximum) colors 8-bit colors: 16.77 million colors |
| Viewing Angles (H / V, typical) | 178° / 178° |
| Brightness (typical) | 1900 cd/m² (peak) |
| Contrast Ratio (typical) | 1,000,000:1 |
| Response Time (typical) | 20 ms (black-white-black) |
| Color Gamut (typical) | BT.2020 emulation |
| Video Signals | |
| Input Terminals | EX3245H, EX3245H-A: DisplayPort (HDCP not supported), HDMI (HDCP 1.4), BNC (12G-SDI), BNC (3G-SDI) EX3245H-S, EX3245H-SA: SFP+ (SDVoE), DisplayPort (HDCP not supported), HDMI (HDCP 1.4), BNC (12G-SDI), BNC (3G-SDI) |
| Output Terminals | DisplayPort, BNC (12G-SDI) |
| Digital Scanning Frequency (H / V) | 18 – 136 kHz / 23 – 71 Hz |
| Power | |
| Power Requirements | AC 100 – 240 V: 50 / 60 Hz |
| Power Output | EX3245H, EX3245H-A: DC 5V 2A, DC 12V 2.5A |
| Features & Functions | |
| Simultaneous Display | Picture by Picture (2 PbyP), Picture in Picture (PinP) |
| OSD Languages | English, German, French, Spanish, Italian, Swedish, Japanese, Simplified Chinese, Traditional Chinese, Russian, Portuguese |
| Communication Interface | EX3245H-S, EX3245H-SA: Ethernet (SDVoE) EX3245H, EX3245H-A: RS-232C, Ethernet |
| Others | 180° rotation, mirroring |
| Environmental Specifications | |
| Degree of Protection | IP45 (front), IP32 (rear) |
| Physical Specifications | |
| Hole Spacing (VESA Standard) | 100 x 100 mm, M4, depth 5.5 – 9.5 mm |
