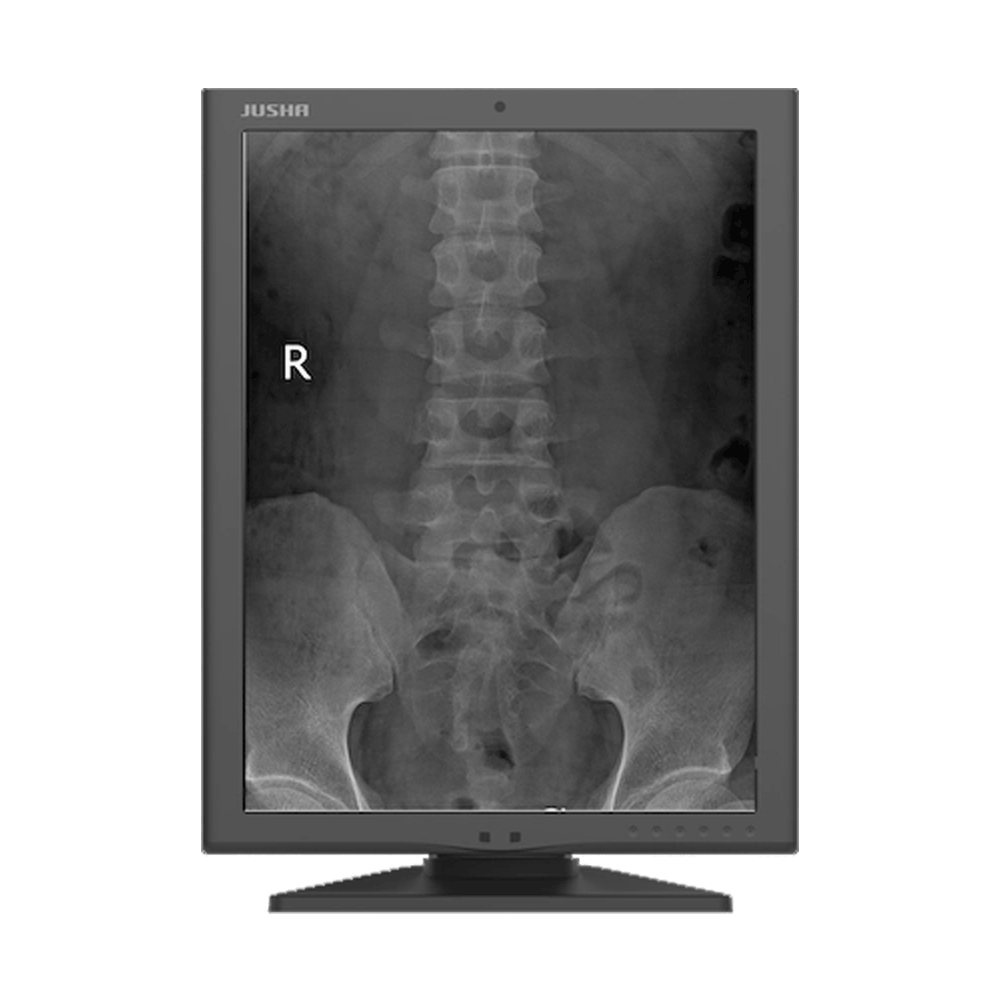

Jusha M260G 2MP Monochrome Diagnostic Display

Jusha M260G with industry-leading LED, 14-bit LUT, full-screen uniformity to ensure DICOM standard all time. With build-in sensor, it works with JUSHA QA software seamlessly. Various shortcut feature to maximize your productivity.

The 14-bit lookup table further reduces the DICOM error, and the distinction between two adjacent gray scales is more obvious, which is conducive to the diagnosis of the early lesion tissue with the smallest gray scale difference from the normal tissue.

Complying with DICOM 3.14 standard and equipped with dynamic LUT, the Jusha M260G monitor is ensured to meet the DICOM error requirements at any brightness, contrast, and color temperature, improves the accuracy and stability of lesion diagnosis.

Through the pixel-by-pixel full-screen brightness uniformity calibration, the difference in brightness and color temperature of different screen areas caused by the characteristics of the liquid crystal panel can be effectively reduced. Ensure that any area of the entire screen conforms to the DICOM standard, which can significantly reduce missed and misjudged diagnosis.

The XFV can increase the brightness of the Jusha M260G monitor to peak value, which can replace the traditional light box for film reading and increase work efficiency.

Medical image diagnosis usually requires high brightness, and long-term use of high-brightness displays will damage your eyesight. In order to solve this problem, we provide a one-key brightening function. You can use a simple shortcut key to switch the display brightness between normal and maximum, providing great convenience for your work.

The user can customize the black point brightness, white point brightness and environmental brightness of the DICOM curve according to the actual environment and diagnosis requirements. Build-in sensors measure the current display brightness in real time, enabling the Jusha M260G monitor automatically adjusted to the best status, and complying with DICOM standard any time.

Users can check and calibrate the Jusha M260G monitor status by themselves, removing the side effects from panel’s aging, which prolongs the lifespan of the monitor and achieving more accurate image.

Award winning Shark Gill outlook design fuse the shark elements into product, achieving a modern and polished look.

You can easily change the angle and height of the monitor with our stand, minimizing the fatigue during everyday viewing.

Support

Model: CP620

Customer Service | About Jusha

Specifications

Model	M260G
Type	IPS
Backlight	LED
Diagonal size	21.3″
Display area	432(H) × 324(V)mm
Resolution	1600×1200
Aspect ratio	4:3
Pixel pitch	0.27mm x 0.27mm
Color depth	8 bit
LUT depth	14 bit
Viewing angles	178°
Maximum brightness typical	1000 cd/m²
Maximum calibrated brightness	800 cd/m²
Default brightness	400 cd/m²
Minimum brightness	100 cd/m²
Presets	DICOM/GAMMA2.2/GAMM2.4/ CT/MRI-JS /DSA/DSI
Uniformity calibration	No
Contrast ratio	1400:1
Response time	8 ms
Quality QA	Yes
Features	SmarTouch, XFV, ALC, Real-time DICOM calibration
Video input	DP x 1, DVI x 1
USB ports	Upstream USB-B 2.0 x 1, Downstream USB-A 2.0 x 2
Power input	12V DC-4A
Typical power	20W
Maximum power	45W
Power saving	< 0.5W
Backlight stabilizer	Yes
Front sensor	Yes
Ambient light sensor	No
Other sensors	Temperature
Protective glass	No
Housing color	Black
Dimensions with stand	382mm × 528mm × 238mm
Dimensions without stand	382mm × 490mm × 74mm
Net weight with stand	10.9kg±0.5kg
Net weight without stand	6.5kg±0.5kg
Certifications	CE, FDA, CCC, Inmetro, EAC, Energy saving
