Jusha R190 1MP Monochrome Diagnostic Display
- High resolution, high luminance
- 10bit （1024 tones） grayscale
- Ins-guard System: Auto-calibration to DICOM
- Metal Frame to facilitate heat dispersion and electromagnetic shield
- Ideal for clinical viewing
MASTER DISTRIBUTOR
24X7 SUPPORT
COMPETITIVE PRICING
SAME DAY SHIPPING
VALUABLE CONSULTATION

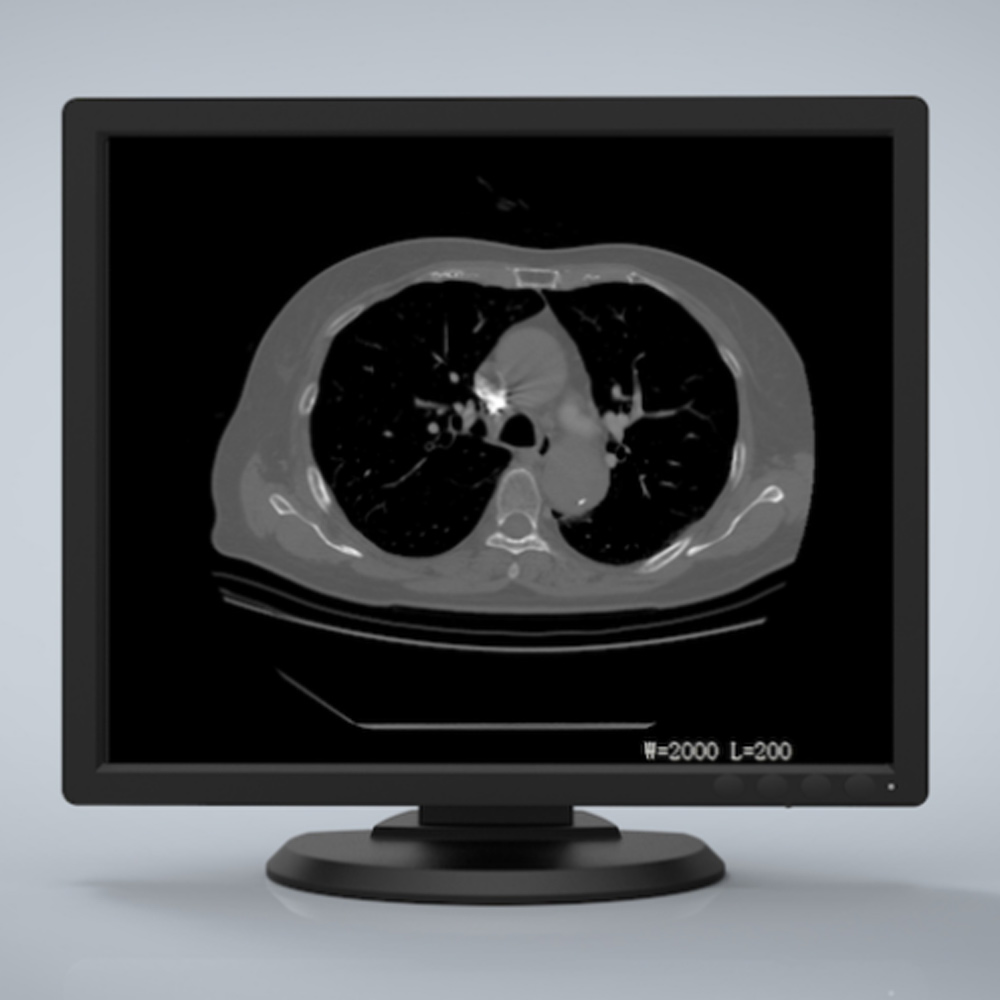

Jusha R190 1MP Monochrome Diagnostic Display Monitor
JUSHA R190 professional display is featured with high luminance, 10bit grayscale (1024 level), built-in LUT based on DICOM standard, designed for high-requirement of clinical diagnosis, such as PACS, CT, MR and other x-ray systems.
The R190 1MP Monochrome Diagnostic Display Monitor is your go-to solution for precise medical imaging. Designed specifically for diagnostic purposes, this monitor delivers sharp, high-contrast images that ensure accurate readings and assessments. Whether you’re in a hospital or a private practice, this monitor is built to meet the rigorous demands of medical professionals.
With its sleek design and user-friendly interface, the Jusha R190 seamlessly integrates into your existing setup. The monitor’s advanced technology minimizes eye strain, allowing for extended use without discomfort. Plus, its durable construction means you can rely on it for years to come, making it a smart investment for any medical facility.
Don’t compromise on quality when it comes to patient care. The Jusha R190 not only enhances your diagnostic capabilities but also supports efficient workflow in your practice. Upgrade your imaging experience today and see the difference this monitor can make in your daily operations.
Support
Model: R190
Specifications
| Model | R190 |
| Type | Diagnostic |
| Backlight | LED |
| Diagonal size | 19″ |
| Display area | 374.784(H)x299.827(V)mm |
| Resolution | 1280×1024 |
| Aspect ratio | 5:4 |
| Pixel pitch | 0.2928mm x 0.2928mm |
| Color depth | 8 bit |
| Lut depth | 1024 |
| Viewing angles | 178° |
| Maximum brightness typical | 900 cd/m² |
| Maximum calibrated brightness | 700 cd/m² |
| Default brightness | 600 cd/m² |
| Minimum brightness | 150 cd/m² |
| Presets | DICOM, DSI |
| Uniformity calibration | No |
| Contrast ratio | 1000:1 |
| Response time | 7 ms |
| Quality QA | No |
| Video input | DVI-D, HDMI, DP, DVI-A(VGA) |
| Usb ports | Upstream USB-A 2.0 x 1 |
| Power input | AC: 100 – 240 V: 50 / 60 Hz |
| Typical power | 15 W |
| Maximum power | 25 W |
| Power saving | < 0.5 W |
| Backlight stabilizer | Yes |
| Front sensor | No |
| Ambient light sensor | No |
| Protective glass | Yes |
| Housing color | Black |
| Dimensions with stand | 419mm x 379mm x 198mm |
| Dimensions without stand | 419mm x 343mm x 71mm |
| Net weight with stand | 6.5kg |
| Net weight without stand | 5kg |
| Vesa 100×100 mm | 1 |
| Certifications | CE, FDA, CCC, EAC, BIS, RoHS, Energy saving |
