LG 31HN713D

LG 31″ 12MP Color Diagnostic Display – 31HN713D

  • 31-inch 12MP (4200×2800) IPS Display
  • 1080cd/m2, sRGB over 97% (Coverage)
  • Multi-resolution Mode (12/6MP)
  • Pathology Mode, Focus View Mode
  • Lighting (Down/ Wall), 6 Hot Keys
Request a Quote

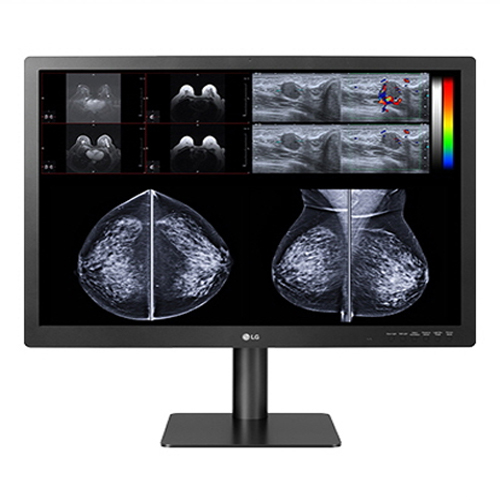

LG 31HN713D (31HN713D-B) 31″ 12MP Color Diagnostic Display

With a 31-inch screen and 12MP resolution, the 31HN713D can replace the two 5MP monitor set-up common for diagnostic mammography. IPS and a wide viewing angle ensure that medical images divided into multiple windows can be viewed clearly from any angle with minimal color distortion. Also, Multi-resolution Mode allows users to change between 6MP and 12MP resolution for a more accurate view of medical images.

Internal Front Sensor for Calibration

The front-sensor allows for automatic, self-calibration without the need for additional measuring equipment. It improves the quality and consistency of medical images that are displayed by maintaining accurate values. HW calibration with a front sensor increases productivity and efficiency while reducing the need for additional operating costs or manpower.

Focus View Mode | Pathology Mode

The Focus View Mode function allows you to review specific parts of a medical image more closely. Using just your mouse and keyboard you can quickly select and focus on areas of concern while
darkening the rest of the screen. Interpretation and diagnosis are also made easier by adjusting the brightness and grayscale tones within the area of focus. Additionally, with Pathology Mode, the
31HN713D reproduces the same accurate detail and color shown directly under a microscope, enabling medical professionals to make more accurate diagnoses.

Streamlined and Efficient Workflow

6 Hot Keys

The 31HN713D’s 6 Hot Keys make changing between screen modes easier and more intuitive than operation through an OnScreen menu. The 6 Hot Keys are much faster and easier to operate while working, allowing you to change mode, screen resolution, and lighting settings all without disrupting your workflow.

Presence Sensor

The 31HN713D features a Presence Sensor that automatically turns off the display when no motion is detected. This reduces power consumption when not in use and eliminates the hassle of manually turning the display on and off. Additionally, it ensures that patient information and other sensitive data is not exposed, improving security and ensuring minimal disruptions to the workflow for optimal efficiency

Optimized Design for User Comfort

Lightweight | One-click Stand | Ergonomic Stand

The One-click Stand and ultra-lightweight body make installing the 31HN713D simple. The ergonomically designed stand allows users to freely adjust the tilt, height, and swivel, reducing chronic pain caused by long hours of work.

Lighting (Down / Wall Light) | Auto Luminance Sensor

Down and Wall Lighting Modes reduce the contrast between the monitor and ambient lighting conditions, allowing you to work comfortably without having to adjust the lighting to view paper
documents in the darkroom. Additionally, the Auto Luminance Sensor ensures screen brightness is always optimized for the ambient lighting, reducing eye strain caused by a difference in screen
and ambient light.

About LG Medical

SPECIFICATION

  • Aspect Ratio
    3:2
    Brightness (Typ.)
    1080cd/m² (Uniformity On)
  • Color Bit
    10bit
    Color Gamut (Typ.)
    sRGB over 97%(Coverage)
  • Contrast Ratio (Typ.)
    1500:1
    Panel Type
    IPS
  • Resolution
    4200×2800
    Response Time (GTG)
    14ms(Off-setting), 5ms(Faster-setting)
  • Size (Inch)
    31
    Surface Treatment
    Anti-glare, 3H
  • Viewing Angle (CR≥10)
    178°(Right/Left), 178°(Up/Down)

FEATURE

  • Hot Key
    Yes(6keys)
    Brightness stabilization
    Yes
  • Auto Luminance sensor
    Yes
    Presence sensor
    Yes
  • Front Sensor
    Yes
    Black Stabilizer
    Yes
  • HW Calibration
    Yes(PerfectLum)
    DICOM Compliant
    Yes
  • Color Temperature
    6500K / 7500K / 9300K
    Manual (5000K ~ 10000K)
    Flicker safe
    Yes
  • PBP
    Yes(2PBP)
    Multi-resolution Mode
    Yes(12MP/6MP)
  • Pathology Mode
    Yes
    Reader Mode
    Yes(Text Mode)
  • Focus View
    Yes
    Light Box Mode
    Yes
  • Smart Energy Saving
    Yes
    Lighting
    Yes(Down/ Wall)
  • Super Resolution+
    Yes

SW APPLICATION

  • Dual Controller
    YES
    Qubyx
    YES

CONNECTIVITY

  • DisplayPort
    YES(2ea)
    Headphone out
    Yes
  • USB Downstream Port
    Yes(3ea/ver3.0)
    USB Upstream Port
    Yes(1ea/ver3.0)

POWER

  • AC Input
    100-240Vac, 50/60Hz
    DC Output
    24V , 7.5A
  • Power Consumption (DC Off)
    Less than 0.3W
    Power Consumption (Max.)
    180W
  • Type
    External Power(Adapter)

MECHANICAL

  • Borderless Design
    Normal
    Display Position Adjustments
    Tilt/Height/Swivel
  • Down Height
    90.9mm
    Height Range
    110mm
  • Machanical Power Switch
    Yes
    OneClick Stand
    YES
  • Swivel
    Yes(±15°)
    Tilt
    Yes(-5°~15˚)
  • Wall Mount Size
    100x100mm

DIMENSIONS/WEIGHT

  • Dimension in Shiping (W x H x D)
    978x628x277mm
    Dimension with Stand (W x H x D)
    704.7×662.6x280mm
  • Dimension without Stand (W x H x D)
    704.7×499.5×83.2mm
    Pallet Stuffing (20ft/40ft/40ft HC)
    126/294/336
  • Weight in Shipping
    21.5kg(TBD)
    Weight with Stand
    14.0kg(30.9lb)
  • Weight without Stand
    10.7kg(23.6lb)

ACCESSORY

  • Adapter
    Yes
    Calibration Report (Paper)
    Yes
  • Display Port
    Yes
    Power Cord
    Yes
  • USB3.0 Upstream Cable
    Yes
