LG 32HS710S-W 32″ 4K Surgical Monitor
- 32-inch 4K (3840×2160) IPS Display
- Instant Screen Mode Switching via Hotkeys
- DCI-P3 95% (CIE1976)
- Protection Glass (Optical Bonding, Anti-Reflection, Anti-Fingerprint, Anti-Glare)
- Up to 4PBP, PIP
- Model: 32HS710S-W
MASTER DISTRIBUTOR
24X7 SUPPORT
COMPETITIVE PRICING
SAME DAY SHIPPING
VALUABLE CONSULTATION

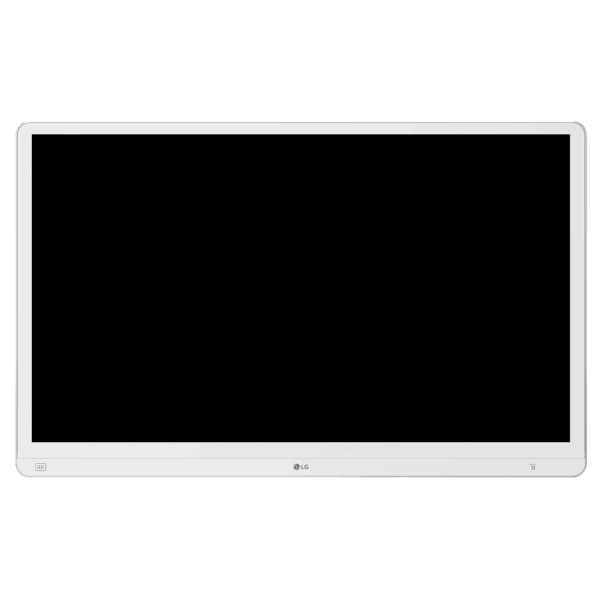

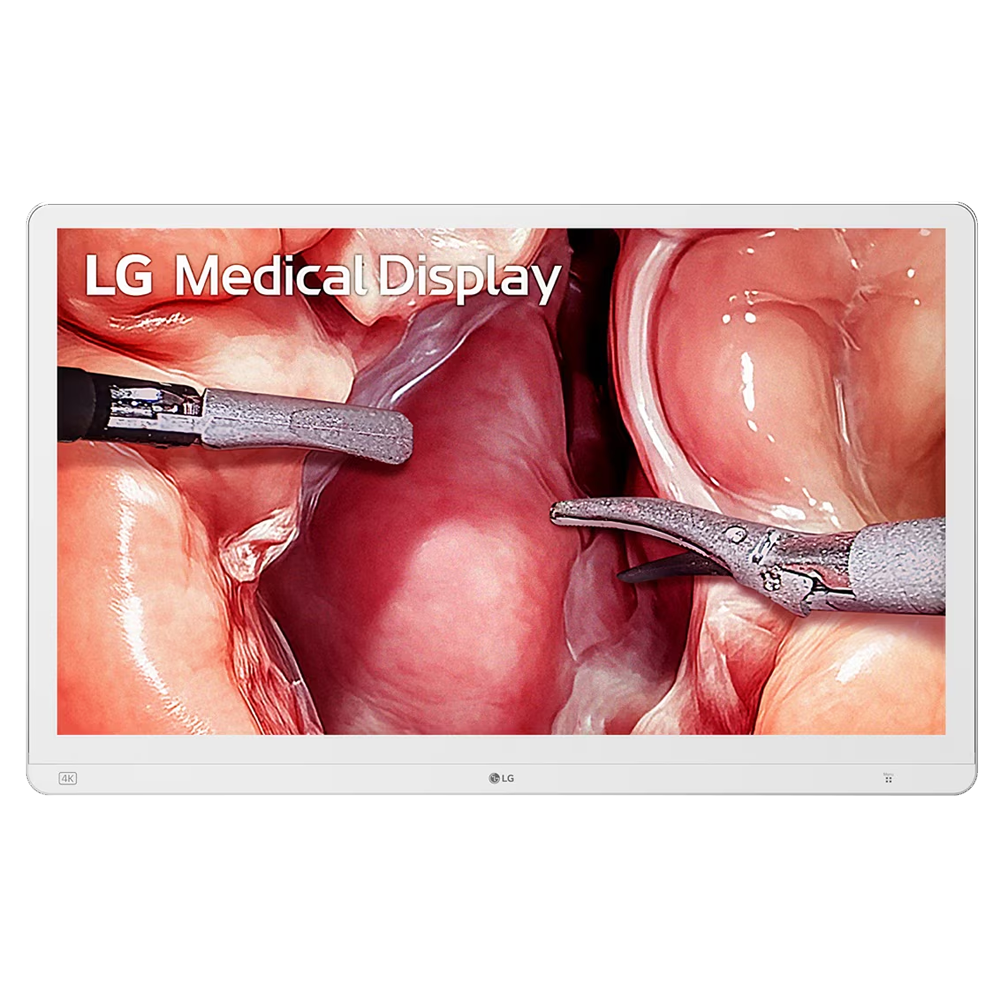

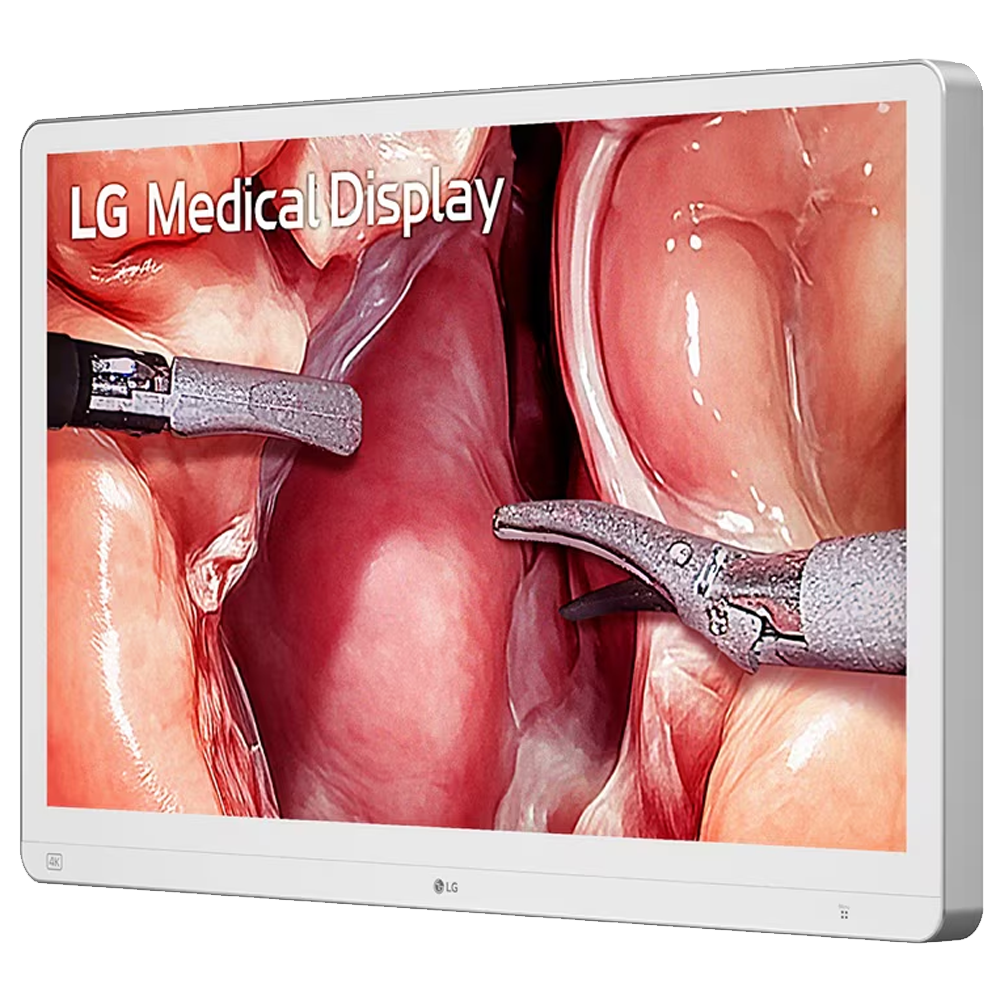

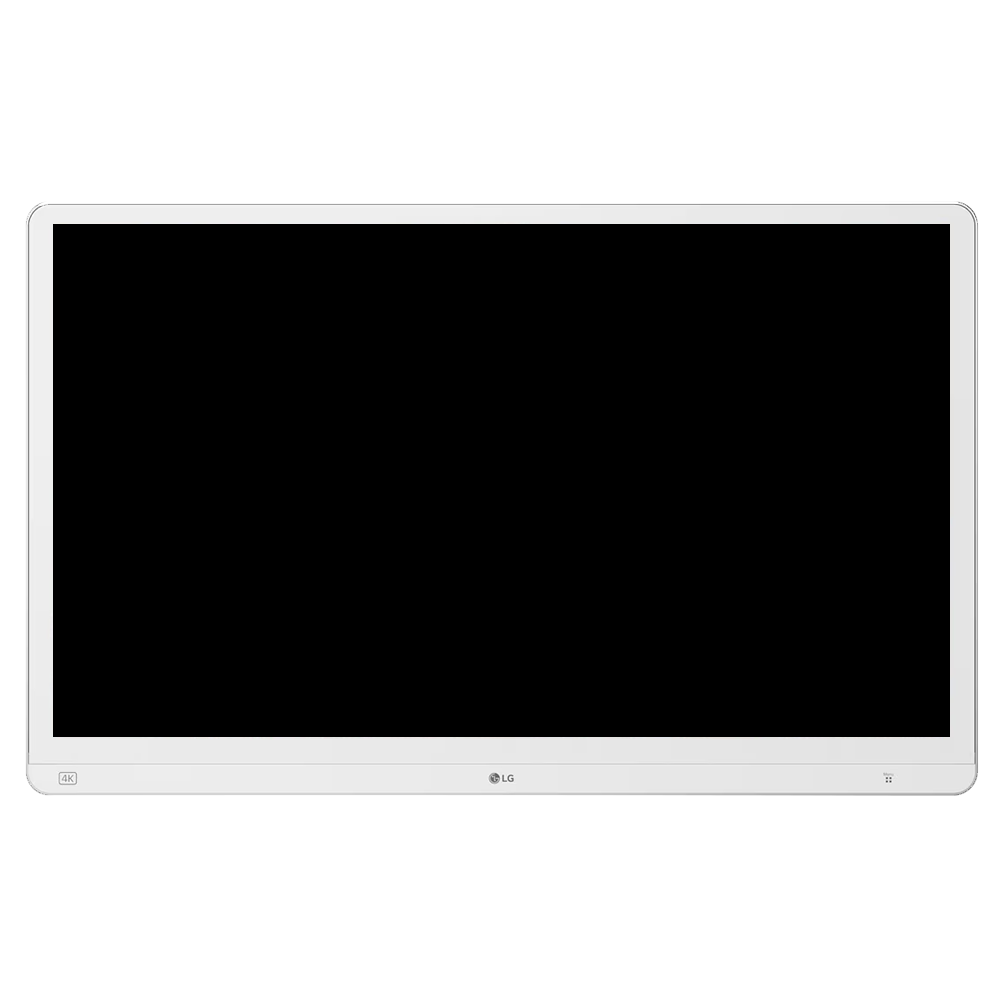

LG 32HS710S-W 32-inch 4K Surgical Monitor
With IP45 (Front) and IP32 (Except for front) ratings, LG 32HS710S-W is suitable for surgical environments where blood and other bodily fluids are likely to splash. Additionally, this monitor offers high resistance to physical impact, as denoted by its IK06 rating.
View Sharp and vibrant images with the LG 32HS710S-W
The LG 32HS710S-W is engineered with optical bonding technology, seamlessly integrating the backlight, module, and glass without air gaps, and further enhanced with Anti-glare, Anti-reflection, and Anti-fingerprint coatings on the front glass. This combination significantly improves display readability by minimizing reflections and glare, optimizing image clarity and color accuracy even in brightly lit environments.
Anti-glare coating
The anti-glare coating of optically bonded glass reduces screen glare and reflection, providing improved readability in brightly lit operating rooms.
Anti-reflection coating
The anti-reflection coating of optically bonded glass minimizes the reflection of visible light wavelengths, which can enhance image clarity.
Anti-fingerprint coating
The anti-fingerprint coating of optically bonded glass reduces contamination from fingerprints and smudges, helping to maintain a clear image of the surgical area.
Monitor various information on a single screen with the LG 32HS710S-W
As the LG 32HS710S-W supports up to 4 PBP & PIP, medical professionals can monitor various critical information streams concurrently on a single screen, which can enhance operational efficiency and decision-making. For example, medical staff can view a combination of laparoscopic and fluoroscopic images while monitoring vital signs.
Clone screen
Using a clone screen function that replicates the entire display content onto a secondary monitor through HDMI output, members of the surgical team can visually monitor the progress of surgery which can help facilitate efficient collaboration and communication.
Mirror mode & Rotation mode
Mirror mode and Rotation mode allow users to adjust the display for optimal viewing, whether flipping the image horizontally or rotating it 180 degrees to match the orientation of the surgical camera.
Failover input switch
The Failover Input Switch feature on this monitor provides uninterrupted display by automatically switching to an alternative video source if the primary input fails. This function is compatible across all interfaces, including HDMI, SDI, DVI, and DP, offering flexibility in setup and redundancy in signal sources. This seamless transition between inputs minimizes disruptions and provides consistent video output, essential for surgical applications where continuity and image clarity are highly important.
Model: 32HS710SW
LG Support
Specifications
| DISPLAY | |
| Panel Type | IPS |
| Size (Aspect Ratio) | 31.5-inch (16 : 9) |
| Resolution | 4K (3,840 x 2,160) |
| Backlight Technology | LED |
| Color Gamut (Typ.) | DCI-P3 95% (CIE1976) |
| Color Bit | 10 bit |
| Viewing Angle (CR≥10) | 178° (Right / Left), 178° (Up / Down) |
| Brightness (Typ.) | 800 cd/m² |
| Brightness (Stabilization) | 500 cd/m² |
| Peak Brightness (Typ.) | 2,000 cd/m² |
| Surface Treatment | Protection Glass (Optical Bonding, Anti-Reflection, Anti-Fingerprint, Anti-Glare) |
| Contrast Ratio (Typ.) | 1,000:1 |
| Response Time (GTG) | 5 ms (GtG at faster) |
| FEATURE | |
| DICOM Compliant | Yes |
| HW Calibration | Yes (LG Calibration Studio) |
| HDR | HDR 10, HDR Effect |
| VIDEO SIGNALS | |
| Input Terminals | HDMI x 1, DisplayPort x 1, SDI (3G) x 1, DVI-D x 1 |
| Output Terminals | HDMI (Clone Screen) x 1, SDI (3G) x 1 |
| CONNECTIVITY | |
| USB | USB 3.0 1 Upstream, 1 Downstream |
| POWER | |
| AC Input | 100-240 Vac, 50/60 Hz |
| Power Consumption (Max.) | 100W |
| Power Consumption (DC Off) | Less than 0.3W |
| RESISTANCE RATING | |
| Resistance Rating | IP45 (Front), IP32(Except for Front), IK06 |
| USER CONVENIENCE | |
| PBP/PIP | Yes (2 / 3 / 4 PBP) / Yes |
| Screen Flip | Mirror Mode & Rotation Mode |
| Failover Input Switch | Yes |
| PHYSICAL SPECIFICATIONS | |
| Weight | 9.2 kg |
| Wall Mount Size | 200 x 100 mm / 100 x 100 mm |
| CERTIFICATIONS & STANDARDS | |
| Certifications & Standards | FDA Class II, CE MDR Class I, UKCA Class I, Health Canada Class II, MFDS Class I IEC / EN 60601-1, IEC / EN 62368-1, ANSI / AAMI ES 60601-1, CSA CAN / CSA-C22.2 NO. 60601-1 IEC / EN 60601-1-2 (Medical EMC), EN 55032 / EN 55035 Class A,B (IT EMC), FCC part 15 Class A,B (IT EMC), ICES-003 Class A,B (IT EMC), AS / NZS CISPR 32 (IT EMC), VCCI Class A,B (IT EMC) RoHS, REACH, WEEE |
