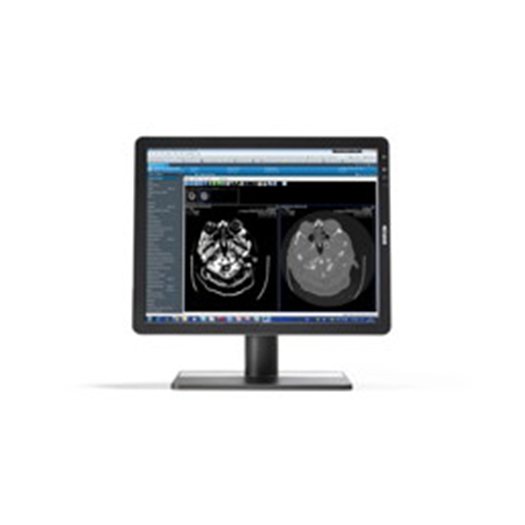

NEW! 2MP Eonis 21
Barco’s Eonis 21″ offers a 40% higher calibrated luminance and almost twice the contrast ratio of the previous generation. It comes with a unique front consistency sensor to guarantee consistent images over time, making it ideal for viewing standard PACS images, RIS data, and image-enabled EMR.
With a full-screen format and 2MP resolution for viewing consistent, quality-controlled images for accurate image review, Eonis 21″ is the perfect side display for radiologists.
Designed to boost productivity & ergonomics
Equipped with LED backlights, Eonis 21″ features a 250 cd/m² calibrated luminance and an excellent contrast ratio, allowing you to view high-detail images quickly and efficiently and with fewer image manipulations. IPS panel technology ensures accurate images even when looked at from a wide viewing angle. Built-in ambient light presets ensure perfect image quality in dark or bright reading environments.
The front-of-screen consistency sensor works seamlessly together with Barco’s MediCal QAWeb service for quality assurance and remote asset management and automatically aligns image quality every time the display is switched on, providing you with a solid basis for confident image review.
Eonis 21” offers flexible tilt and swivel capabilities and a space-saving design to make viewing more ergonomic. Additionally, positioning the 21-inch screen in portrait orientation provides you with more flexibility when viewing skeletal radiography images or patient data.
|Screen technology||TFT Color LCD|
|Active screen size (diagonal)||541 mm (21.3″)|
|Active screen size (H x V)||432 mm x 324 mm (17″ x 12.76″)|
|Aspect ratio (H:V)||4:3|
|Resolution||2MP (1600 x 1200)|
|Color support||10 bit|
|Viewing angle (H, V)||178°|
|Ambient Light Compensation (ALC)||Yes, preset values in OSD|
|Maximum luminance||440 cd/m2; typical|
|DICOM calibrated luminance||250 cd/m²|
|Contrast ratio||1500:1 typical|
|Response time (Tr + Tf)||20 ms|
|Housing color||Black + Silver|
|Video input signals||DisplayPort, DVI|
|USB ports||1 upstream, 2 downstream|
|Power requirements (nominal)||100 – 240 V|
|Power consumption (nominal)||32 W (less than 1 W in stand-by)|
|Power save mode||Yes|
|OSD languages||English, French, German, Spanish, Italian, Dutch, Japanese, Traditional Chinese, Simplified Chinese, Korean|
|Dimensions with stand (W x H x D)||376 x 591.7 x 201.33 mm (portrait)|
|Dimensions w/o stand (W x H x D)||376 x 484 x 75.93 mm (portrait)|
|Dimensions packaged (W x H x D)||584 x 667 x 272 mm|
|Net weight with stand||8.7 kg|
|Net weight w/o stand||5.25 kg|
|Net weight packaged with stand||12.4 kg|
|Height adjustment range||100.0 +/- 5.0 mm|
|Tilt||-5° / +20°|
|Swivel||-45° / +45°|
|Mounting standard||VESA (100 mm)|
|Certifications||CE (MDD 93/42/EEC class I product), CE-2004/108/EC, 2014/30/EU (Directive 2004/108/EC is repealed with effect from 20 April 2016), IEC 60601-1:2005, ANSI/AAMI ES60601-1 (2005/(R)2012 + C1:2009/(R)2012 + A2:2010/(R)2012), CAN/CSA-C22.2 No. 60601-1 (2008), DEMKO – EN 60601- 1:2006, EN 60601-1-2:2007, EN60601-1:2006+A11:2011, KC, VCCI, FCC class B, ICES-001 Level B, FDA Class I device, RoHS|
|Supplied accessories||User Guide
Cable routing strap
Video cables (1x DVI + 1x DP)
Main cables (UK, European (CEBEC/KEMA) or USA (UL/CSA; adaptor plug NEMA 5-15P))
USB 2.0 cable
This adapter is a forming part of the medical device.
(Manufacturer: BridgePower Corp., BPM060S24F09; Input: 100-240 V AC, 50-60 Hz, 1.5 A; Output: +24V DC, 2.7 A)
|QA software||MediCal QAWeb & QAWeb PP|
|Operating temperature||+10°C / +35°C|
|-20°C / +60°C|
|Operating humidity||20% – 85% (non-condensing)|
|5% – 95% (non-condensing)|
|Operating altitude||3000 m|
|Operating pressure||70 kPa – 106 kPa|
|50 kPa – 106 kPa|
Dual Head Barco Nio 2MP LED High-Bright ColorRead more
Nio Color 2MP LED is a 2 MegaPixel color display system with LED backlights, providing excellent image quality for confident diagnoses. Nio Color 2MP LED provides an effective display solution for a multitude of applications and modalities, including 3D PACS, 3D echo, ultrasound, orthopedic imaging, CAD, image fusion, nuclear medicine and PET.
Call for Best Price!
NEW! EIZO MS236WT 2MP 23” Multitouch
$2,216.00Add to cart
User-Intuitive Multitouch Interface
Both intuitive and enjoyable to work with, multitouch lets you tap, scroll, drag, pinch, spin, etc. with your fingers instead of a mouse and keyboard. The multitouch interface is supported by Windows 8 and 7 and works with the growing number of multitouch applications compatible with these OS.
NEW! EIZO RadiForce 24.1” Color LCD Monitor MX242WRead more
The Eizo MX242W is a 24.1-inch widescreen monitor with DICOM Part 14 calibration support, smooth color reproduction, and screen management for increased work efficiency.
Make the Precise Diagnosis
EIZO carefully measures and sets each grayscale tone to create a monitor compliant with DICOM Part 14. This ensures the most consistent shading possible, allowing for the most accurate diagnosis.
Barco 2MP Eonis White 24$1,099.00Add to cart
This 24” display has been built with healthcare specialists in mind. It combines consistent image quality and an attractive, versatile design with networked quality assurance. The white version of the Eonis display features a front glass panel and is fully sealed, making it exceptionally cleanable, even with 70% alcohol cleaning agents.
