NEW! EIZO RadiForce 24.1'' Color LCD Monitor MX242W - Medical Displays for Less: Radiology Monitors & Displays

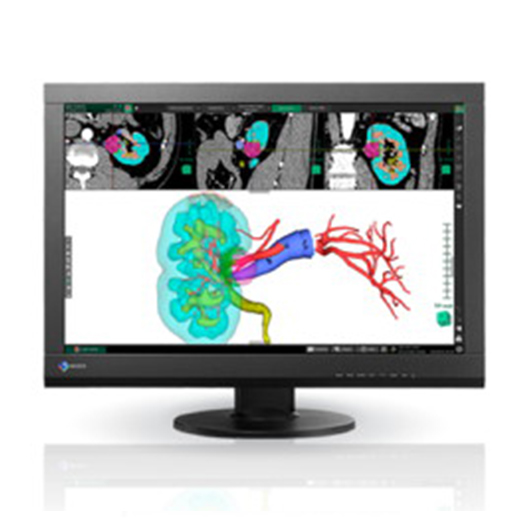

NEW! EIZO RadiForce 24.1” Color LCD Monitor MX242W

The Eizo MX242W is a 24.1-inch widescreen monitor with DICOM Part 14 calibration support, smooth color reproduction, and screen management for increased work efficiency.

Make the Precise Diagnosis

EIZO carefully measures and sets each grayscale tone to create a monitor compliant with DICOM Part 14. This ensures the most consistent shading possible, allowing for the most accurate diagnosis.

Request a Quote

Maintain the Precision

Perform a simplified calibration compliant with DICOM Part 14 using the bundled RadiCS LE

quality control software. RadiCS LE corrects the brightness and grayscale tones of the monitor to maintain image accuracy and consistency over time.

Keep Your Monitor Lit Longer

The LED backlight offers a significantly longer service life over conventional CCFL backlights. In addition, you can maintain high brightness while simultaneously lowering power consumption. Since the LED backlight is mercury-free, it will also reduce any potential impact on the environment when disposed of.

View More with Widescreen

The widescreen 16:10 aspect ratio provides significantly more horizontal space than the aspect ratios of conventional square monitors so that you can keep tool palettes open without covering the window you are working on.

Comfortably View from Any Angle

The wide viewing angles of the IPS panel allow you to view the sreen from the side with minimal color shift, also permitting more than one person to view the monitor comfortably at the same time.

View Accurate Images in

Moments

The EIZO-patented drift correction function quickly stabilizes the brightness level of the monitor upon startup or wakup from sleep mode, giving you the most accurate images quickly ready for viewing. In addition, a sensor measures the backlight brightness fluctuations caused by ambient temperature and aging for a consistently stable display.

Attain Steady Images Across the Screen

The Digital Uniformity Equalizer (DUE) function helps to even out fluctuations in brightness and chroma on different parts of the screen to provide smoother images.

Select the Ideal Mode for Modalities

The CAL Switch function allows you to choose various modes for different modalities such as CR, CT, and endoscopy and can be conveniently accessed using the monitor’s front panel buttons.

Improve Operability

EIZO’s highly versatile stand offers, tilt, swivel, and a wide height adjustment range, enabling you to use the monitor with greater comfort.

Improve Operability
Rest Assured with Medical Qualifications

The monitors meet the strictest medical, safety, and EMC emission standards.

Specification

Cabinet Color	Black
Panel
Type	Color (IPS)
Backlight	LED
Size	61 cm / 24.1″
Native Resolution	1920 x 1200 (16:10 aspect ratio)
Viewable Image Size (H x V)	518.4 x 324.0 mm
Pixel Pitch	0.270 x 0.270 mm
Display Colors	10-bit colors (DisplayPort) : 1.07 billion (maximum) colors 8-bit colors: 16.77 million from a palette of 68 billion colors
Viewing Angles (H / V, typical)	178° / 178°
Brightness (typical)	350 cd/m²
Contrast Ratio (typical)	1000:1
Response Time (typical)	12 ms (on / off)
Video Signals
Input Terminals	DVI-I x 1, DisplayPort x 1
Digital Scanning Frequency (H / V)	31 – 76 kHz / 59 – 61 Hz
Analog Scanning Frequency (H / V)	26 – 76 kHz / 49 – 71 Hz
Sync Formats	Separate
USB
Function	1 upstream, 2 downstream
Standard	USB 2.0
Power
Power Requirements	AC 100 – 240 V: 50 / 60 Hz
Maximum Power Consumption	68 W
Typical Power Consumption	31 W
Power Save Mode	Less than 0.5 W
Power Management	Digital: DVI DMPM, DisplayPort 1.1a Analog: VESA DPM
Sensor	Backlight Sensor
Features & Functions
Brightness Stabilization	Yes
Digital Uniformity Equalizer	Yes
Preset Modes	CAL Switch
OSD Languages	English, German, French, Italian, Japanese, Simplified Chinese, Spanish, Swedish, Traditional Chinese
Physical Specifications
Net Weight	8.7 kg
Net Weight (Without Stand)	6.0 kg
Hole Spacing (VESA Standard)	100 x 100 mm
Certifications & Standards (Please contact EIZO for the latest information.)	CE (Medical Device Directive), EN60601-1, UL60601-1, CSA C22.2 No. 601-1, IEC60601-1, VCCI-B, FCC-B, Canadian ICES-003-B, RCM, RoHS, China RoHS, WEEE, CCC, GOST-R
FDA 510(k) Clearance	Yes (for General Radiography)
Supplied Accessories (May vary by country. Please contact EIZO for details.)	AC power cord, signal cable (DVI-D – DVI-D, DisplayPort – DisplayPort) , USB cable, Utility Disk (RadiCS LE, ScreenManager Pro for Medical, PDF instructions for use, PDF installation manual), instructions for use
Warranty	Five Years
Dimension Drawing

What you get:

Eizo MX242W 2MP MX-Series 24.1″ Wide Screen Color TFT LCD with LED, DICOM calibration, Black, 1920×1200, Digital & analog inputs, DVI-I and DisplayPort, 350 cd/m2, 1000:1 contrast ratio, 178×178 viewing angles, 12 ms Response Time, RadiCS LE Bundled, FlexStand3, UL60601-1, FDA510K, RoHS, 5-year warranty
