Eizo Radiforce RX360 (RX360-BK) 21.3" 3MP Color Diagnostic Display
Calibration Kit for All EIZO Monitors -RadiCS-UX2
BARCO Handheld LCD Photometer Sensor - B4100035
Barco Coronis MDCC-6530 6MP Color LED Fusion with MXRT-8700 Video Card - MDCC-6530 / K9602992
NEW! Single Head 5MP Barco Coronis Grayscale - MDCG-5221 / K9602708
NEW! Single Head 2MP EIZO 21.3” RadiForce Color Display – RX250-SH-AW410
Achieve Clarity True to the Source Data
A medical monitor needs to be capable of high brightness in order to meet performance standards. However, in order to achieve high brightness in an LCD panel, the pixel aperture ratio has to be increased. This causes a typically unavoidable decline in sharpness. With EIZO’s unique Sharpness Recovery technology, the decrease in sharpness (MTF) is restored. This allows you to display an image safely on the monitor that is true to the original source data, even at high brightness levels.
Call for Replacement Option

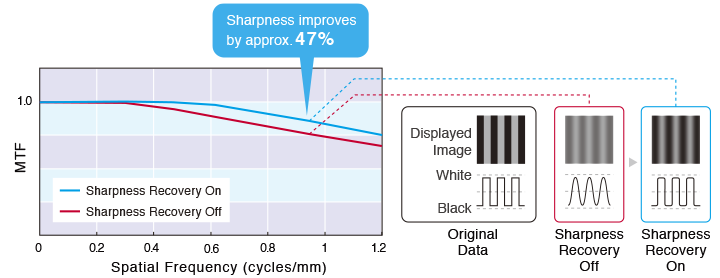

MTF measures numerically how faithfully the panel transfers detail from the original image data for viewing. When Sharpness Recovery is turned on, in the case of a 2 pixel line pair (spatial frequency of 0.926 cycles/mm) the MTF increases by approximately 47%.

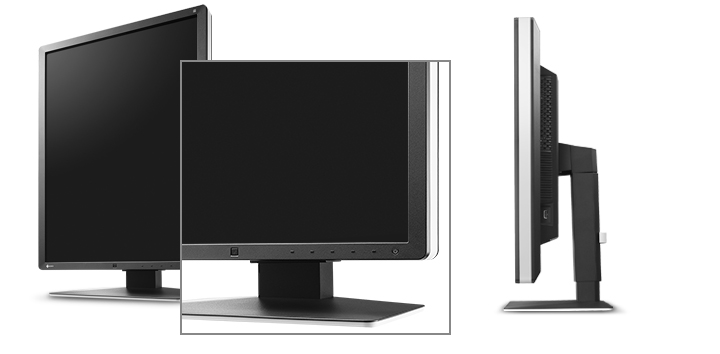

Create the Ideal Environment
The black front bezels are ideal for viewing the screen in dark reading rooms, making it easier to focus on images, while the original white stripe around the sides of the monitor presents a fresh, clean aesthetic.
Save Work Space with Sleek Cabinet Design
The monitor’s width, height, and depth were reduce by 15 mm, 37.5 mm, and 45.5 mm respectively – 27% less space than its predecessor, saving more workspace for other tasks. Reducing the width of the monitor’s frame reduces eye movement when comparing side-by-side images in a dual monitor configuration.
Save on Power Consumption
The monitor uses a new panel equipped with an energy-efficient LED backlight which reduces power consumption by 27% compared to its predecessor.
EIZO’s internal measurement under the recommended brightness of 400 cd/m2.

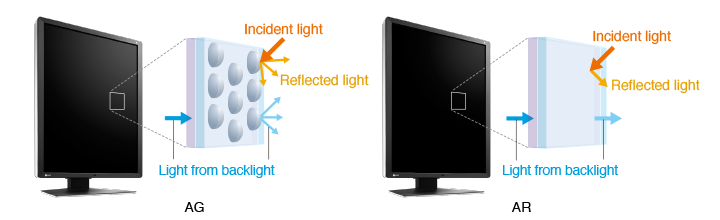

Reduce Reflections for Image Clarity
Anti-reflection (AR) coating greatly reduces reflections caused by outside light without affecting the light emitting from the monitor. It also minimizes the loss of contrast that causes blacks to appear washed out with an anti-glare (AG) coating. This makes AR coating ideal for environments with bright ambient lighting.
Hassle-Free Multi-Monitor Configuration
Using the DisplayPort connection, you can drive several monitors in a daisy chain sequence. This allows you to configure a multi-monitor setup without the complicated hassle of excessive cabling.
Make the Precise Diagnosis
EIZO carefully measures and sets each grayscale tone to create a monitor compliant with DICOM Part 14. This ensures the most consistent shading possible for the most accurate diagnosis.
Maintain the Precision
Perform a simplified calibration for DICOM Part 14 using the bundled RadiCS LE quality control software. RadiCS LE corrects the brightness and grayscale tones of the monitor to maintain image accuracy and consistency over time.
Manage Effortless Quality Control
An Integrated Front Sensor (IFS) housed within the front bezel measures brightness and grayscale tones and calibrates to the DICOM Part 14 standard. The hands-free IFS performs quality control tasks and does not interfere with the viewing area while in use. This dramatically cuts the workload and maintenance costs needed for maintaining monitor quality control.

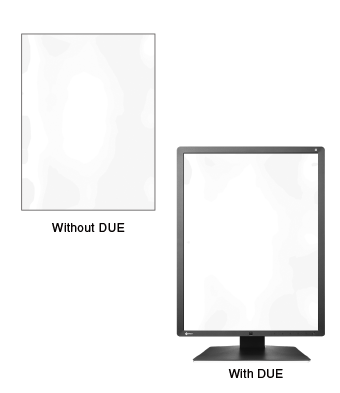

Attain Steady Images Across the Screen
The Digital Uniformity Equalizer (DUE) function helps to even out fluctuations in brightness and chroma on different parts of the screen to provide smoother images, a quality typically difficult to attain due to the characteristics of LCD monitors.
View Accurate Images in Moments
The EIZO-patented drift correction function quickly stabilizes the brightness level of the monitor upon startup of wakeup from sleep mode, giving you the most accurate images quickly ready for viewing. In addition, a sensor measures the backlight brightness and automatically compensates for brightness fluctuations caused by ambient temperature and aging for a consistently stable display.

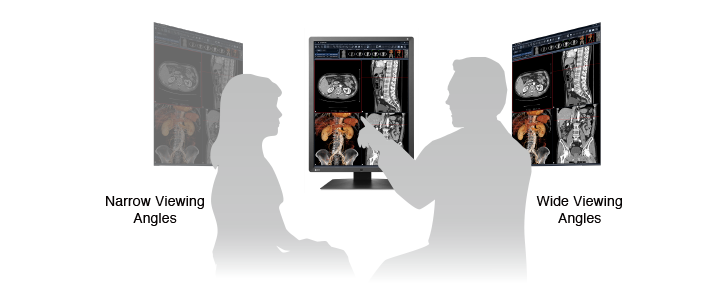

Comfortably View from Any Angle
Wide viewing angles allow you to view the screen from the side with minimal color shift, also permitting more than one person to view the monitor comfortably at the same time.
Select the Ideal Mode for Modalities
The CAL Switch function allows you to choose various modes for different modalities such as CR, CT, and endoscopy. It can be conveniently accessed using the monitor’s front panel buttons to easily switch to optimal image viewing conditions.
Experience Smooth Color Reproduction
The monitor supports 10-bit input for each RGB color, displaying more than one billion colors simultaneously. This ensures accurate color reproduction for 3D color rendering and image fusion.
10-bit color graphics board and 10-bit color viewer software needed for 10-bit color display.
Conserve Energy While Away
A presence sensor prompts the monitor to switch to power save mode when the user is away and resumes operation upon their return to conserve power when not in use. In the latest RadiForce models, the sensor detects the user’s presence using a heat sensing method. This increases the range and angle of detection compared to conventional detection methods, making it effective when using multiple monitors.
EIZO’s highly versatile stand offers, tilt and a wide height adjustment range, enabling you to use the monitor with greater comfort.
Rest Assured with Medical Qualifications
The monitors meet the strictest medical, safety, and EMC emission standards.
Warranty with Safety and Trust
EIZO and its authorized distributors offer a five-year full warranty.
|Size||54 cm / 21.3″|
|Native Resolution||1200 x 1600 (3:4 aspect ratio)|
|Viewable Image Size (H x V)||324.0 x 432.0 mm|
|Pixel Pitch||0.270 x 0.270 mm|
|Display Colors|| 10-bit colors (DisplayPort) : 1.07 billion (maximum) colors
8-bit colors: 16.77 million from a palette of 68 billion colors
|Viewing Angles (H / V, typical)||178° / 178°|
|Brightness (typical)||800 cd/m2|
|Recommended Brightness for Calibration||400 cd/m2|
|Contrast Ratio (typical)||1400:1|
|Response Time (typical)||20 ms (on / off)|
|Input Terminals||DVI-D x 1, DisplayPort x 1|
|Output Terminals||DisplayPort x 1 (daisy chain)|
|Digital Scanning Frequency (H / V)|| 31 – 100 kHz / 59 – 61 Hz
Frame synchronous mode: 59 – 61 Hz
|Function||1 upstream, 2 downstream|
|Power Requirements||AC 100 – 240 V: 50 / 60 Hz|
|Maximum Power Consumption||79 W|
|Typical Power Consumption||38 W|
|Power Save Mode||Less than 1 W|
|Power Management||DVI DMPM, DisplayPort 1.2a|
|Sensor||Backlight Sensor, Integrated Front Sensor, Presence Sensor, Ambient Light Sensor|
|Features & Functions|
|Digital Uniformity Equalizer||Yes|
|Preset Modes||CAL Switch|
|OSD Languages||English, German, French, Italian, Japanese, Simplified Chinese, Spanish, Swedish, Traditional Chinese|
|Net Weight||8.2 kg|
|Net Weight (Without Stand)||5.4 kg|
|Hole Spacing (VESA Standard)||100 x 100 mm|
|Certifications & Standards (Please contact EIZO for the latest information.)||CE (Medical Device Directive), EN60601-1, ANSI/AAMI ES60601-1, CSA C22.2 No. 601-1, IEC60601-1, VCCI-B, FCC-B, CAN ICES-3 (B), RCM, RoHS, China RoHS, WEEE, CCC, EAC|
|FDA 510(k) Clearance||Yes (for General Radiography)|
|Supplied Accessories (May vary by country. Please contact EIZO for details.)||AC power cord, signal cables (DVI-D – DVI-D, DisplayPort – DisplayPort), USB cable, Utility Disk (RadiCS LE, PDF instructions for use, PDF installation manual), instructions for use|
RadiForce 2MP High Brightness LCD LED Color single head bundle with 1x RX250 display and 1x AMD FIREPRO W4100 PCIe x16 Low Profile Compatible video card. 5 Year Warranty.
2MP Totoku 21.3” Color Display – CCL210Read more
With high luminance, high contrast, wide viewing angle and full calibration capability, CCL210 is a cost effective solution for clinical applications.
Totoku CCL210 Features
Color calibration function to reproduce colors faithful to the original and grayscale compliant with DICOM Part 14
By calibrating color temperature, luminance, and gamma characteristics, reproduction of colors faithful to the original and smooth display of grayscale are possible.
Call for Replacement Option
5MP JVC/Totoku 21.3 Mammo LED Display – MS55i2Read more
Thanks to the new energy saving LED backlight LCD, MS55i2 provides more stability in image quality for a long period of time. Also the new function of DICOM conformance self-test function comes with this newly upgraded digital mammography display.
In addition to the advanced features of the current TOTOKU’s products, MS55i2 has equipped with some new technologies to deliver higher performance in diagnostic reading. By adopting new generation IPS LCD with LED backlight, MS55i2 has achieved high contrast ratio of 1200:1, providing brighter and crisper images ever.
NEW! Single Head 3MP Barco Nio LED Color – MDNC-3321 / K9602585Read more
Nio Color 3MP LED is a 3 MegaPixel high-bright color radiology display system with LED backlights, providing excellent image quality for confident diagnoses. Nio Color 3MP LED provides an effective display solution for a multitude of applications and modalities, including 3D PACS, 3D echo, ultrasound, orthopedic imaging, CAD, image fusion, nuclear medicine and PET.
3MP Totoku Digital Monochrome Display – MS33i2Read more
Digital mammography viewing demands an extraordinarily high level of precision from your LCD display. Totoku’s MS33i2 redefines new standards of care by over-delivering resolution and clarity for improved accuracy in breast cancer screening.
Special AR Coating for Film-like Black and Improved Sharpness
TOTOKU’s new special AR coating technology addresses properties of focus, noise reduction, contrast, and viewing angle achieving film-like black and accurate reproduction of images. (Patent pending)
