NEW! 1MP Barco Color DICOM Clinical Review Display - MDRC-1219
Quad Head Barco 5MP Diagnostic Display without Video Card- MDNG-5221 / K9602800
1MP Barco Color DICOM Clinical Review Touch Screen - MDRC-1219 TS
Single Head 3MP Barco Nio High Bright Color
Barco Nio MDNC-6121 5.8MP Dual Head w/ MXRT-6700 Video Card - K9602987

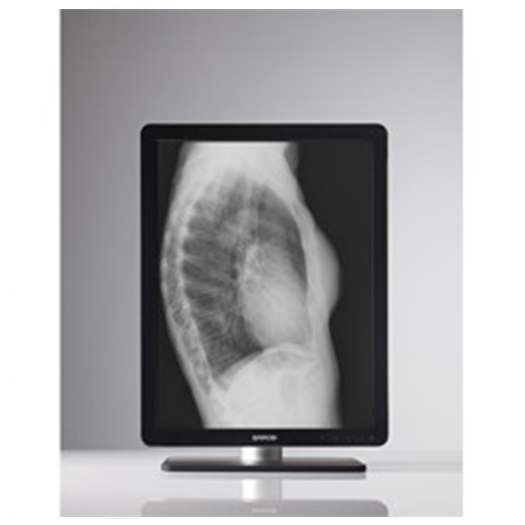

NEW! Single Head 3MP Barco Coronis LED Grayscale
Coronis 3MP LED is the industry-leading radiology display system for grayscale radiology imaging. It delivers optimum diagnostic precision and workflow efficiency for high-resolution PACS imaging, CT, MRI, chest radiology, angiography, etc.
Discontinued! Call for Replacement Options
50 more shades of gray
Barco’s high-bright LED backlights render more Just Noticeable Differences to help you see more shades of gray. By making subtle details more noticeable more quickly, Coronis 3MP LED reduces windowing and leveling time so you can read your studies more efficiently.
Barco’s image-enhancing technologies – designed for the unique characteristics of LED backlit medical displays – ensure perfect image quality at all times. PPU-LED reduces panel noise and renders uniform DICOM images from center to corner. An Intelligent Multi Sensor Technology system (I-MST) combines Barco’s patented I-Guard front-of-screen sensor with backlight, ambient light and temperature sensors to optimize image quality and keep it consistent over time.
Using energy-efficient LED backlights, Barco’s Coronis 3MP LED is as low in power consumption as it is high in brightness. Additionally, Barco’s LED backlights are mercury-free, produce less heat, and last longer. This allows Barco to guarantee a 5-year backlight warranty.
Worry-free DICOM compliance
Barco’s Coronis 3MP LED is bundled with MediCal QAWeb for automated calibration and QA, ensuring continuous diagnostic quality and maximum uptime of your workstation. MediCal QAWeb allows you to continue working while automated QA checks are being executed. The system also includes a secure online web service for remote, centralized image quality management.
- High-bright LED backlights ensuring more grayscales
- Power-efficient LED backlights reducing overall operational and maintenance costs
- Intelligent Multi-Sensor Technology system for consistent image quality
- PPU-LED for uniform images across the entire screen
- Continuous, worry-free DICOM-compliance under all lighting conditions
- Web-based service for transparent calibration and QA
- Smart, ergonomic design
|Screen technology||TFT AM LCD Dual Domain IPS|
|Active screen size (diagonal)||540 mm (21.3″)|
|Active screen size (H x V)||433 x 325 mm (17 x 12.8″)|
|Aspect ratio (H:V)||4:3|
|Resolution||3MP (2048 x 1536)|
|Pixel pitch||0.2115 mm|
|Number of grayscales (LUT in/LUT out)||1024 grey levels (10/12)|
|Viewing angle (H, V)||178°|
|Per Pixel Uniformity (PPU)||Yes|
|Ambient Light Compensation (ALC)||Yes|
|Backlight Output Stabilization (BLOS)||Yes|
|Maximum luminance||1700 cd/m²|
|DICOM calibrated luminance||600 cd/m²|
|Contrast ratio (ULT off)||1400:1|
|Response time (Tr + Tf)||40 ms|
|Video input signals||DVI-D Dual Link, DisplayPort|
|USB ports||1 upstream (endpoint), 2 downstream|
|Power consumption (nominal)||40W|
|Power save mode||Yes|
|Dimensions with stand (W x H x D)||Portrait: 378 x 528~628 x 235 mm
Landscape: 491 x 472~572 x 235 mm
|Dimensions w/o stand (W x H x D)||Portrait: 378 x 491 x 84 mm
Landscape: 491 x 378 x 84 mm
|Net weight with stand||12.8 kg|
|Mounting standard||VESA (100 mm)|
|Screen protection||Protective, non-reflective glass cover|
|Recommended modalities||CT, MR, US, DR, CR, NM, Film|
|Certifications||CE0120 (MDD 93/42/EEC; A1:2007/47/EC class II b product), CE – 2004/108/EC, IEC 60950-1:2005 + A1:2009 (2ND EDITION), IEC 60601-1:2005 + A1:2012, ANSI/AAMI ES 60601-1:2005 + C1:2009 + A1:2012, CAN/CSAC22.2 No. 60601-1(2008), DEMKO – EN 60601-1:2006, EN 60601-1-2:2007, CCC – GB9254-2008 + GB4943.1-2011 + GB17625.1-2003, KCC, VCCI, FCC class B, ICES-001 Level B, FDA 510(k), RoHS|
|Supplied accessories||Getting Started Guide
Video cable (DVI Dual Link)
Main cables (UK, European (CEBEC/KEMA), USA (UL/CSA; adaptor plug NEMA 5-15P), Chinese (CCC))
USB 2.0 cable, DisplayPort cable, External power supply
|QA software||MediCal QAWeb|
CORE PLUS DUAL HEAD 60 MONTH 1MP CORONIS OR NIO PROGRAM
Barco CORE PLUS is an extended 60-month warranty that provides a Hot Spare, Premium Level QA Web Support for the term of the warranty. Covers Coronis or Nio 2 head 2MP systems. K9000111
List Price $999.00 Your price $933.00
QA WEB PREMIUM 1HD 5Y LICENSE ONLY
QAWeb Premium Reporting & Support – 5 year license for 2 head systems. SLP-SW-5Y
List Price $175.00 Your price $154.00
MXRT-7500 VIDEO CARD
MXRT-7500 Graphics Board: PCIe x16, 4 GB Display Memory. 4 Display-Port Outputs. Includes 2 single- link dongles. K9306037
List Price $1,695.00 Your price $1,534.50
CALIBRATION KIT – BARCO LCD SENSOR MKII
Handheld photosensor MKII for LED and CCFL LCDs. B4100035
List Price $599.00 Your price $495.00
Dual Head Barco Nio 2MP LED High-Bright ColorRead more
Nio Color 2MP LED is a 2 MegaPixel color display system with LED backlights, providing excellent image quality for confident diagnoses. Nio Color 2MP LED provides an effective display solution for a multitude of applications and modalities, including 3D PACS, 3D echo, ultrasound, orthopedic imaging, CAD, image fusion, nuclear medicine and PET.
Call for Best Price!
NEW! JVC 2MP 21.3 Clinical Review Display – CL-R211
$1,995.00Add to cart
JVC CL-R211 (CLR211) 2MP 21.3” Clinical Review Display is an optimal solution where doctors need to view both grayscale and color images, and effectively covers multiple applications like PACS, CAD, PET and nuclear medicine.
Dynamic Gamma — One Pixel Based Contrast and Brightness, Gamma.
Call for Best Price!
NEW! 2MP JVC 21.3” Color LED Display – CLS200$2,880.00Add to cart
JVC CLS200 is an optimal solution where doctors need to view both grayscale and color images, and effectively covers multiple applications like PACS, CAD, PET and nuclear medicine.
Clearly Defined Diagnostic Images
The new i3 color series render more precise color and monochrome modality images. One of its unique technologies the built-in self-calibrating sensor ensures that the monitor constantly performs at its best.
