NEW! Single Head 3MP EIZO 21.3” Radiforce Monochrome
3 megapixel high-resolution diagnostic monochrome radiology monitor ideal for displaying an entire chest CR image. High-definition and multifunctional model featuring precise calibration compliant with the DICOM Part 14 standard.
Environmentally-Friendly LED Backlight
Call for Best Price!
By utilizing an energy-efficient LED as a backlight, the monitor achieves a high-brightness and low power consumption at the same time. Unlike conventional CCFL backlights, LED backlights deteriorate more slowly and thus the monitor offers a longer service life. Since the LED backlight is mercury free, it will reduce any potential impact on the environment when it is disposed of.
Consistency with DICOM Part 14 Calibration
With the bundled RadiCS LE quality control software, a simplified calibration compliant with the DICOM Part 14 standard can be performed to correct the brightness and grayscale tones of the monitor ensuring the most accurate and consistent shadings possible over time.

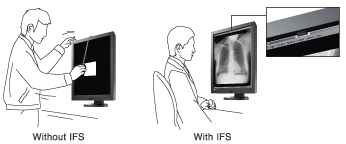

Easy Calibration with Integrated Front Sensor
An Integrated Front Sensor (IFS) housed within the front bezel measures brightness and grayscale tones and calibrates to the DICOM Part 14 standard. Without having to connect and disconnect, an IFS performs QC tasks and does not interfere with the viewing area. This dramatically cuts monitor quality control workload and maintenance costs.
Brightness Uniformity for a Steadier Image Across the Screen
The Digital Uniformity Equalizer (DUE) function provides optimum brightness uniformity which is difficult to attain due to the characteristics of LCD monitors.
Quick Brightness Stabilization for Instant Viewing
At startup or upon wakeup, the EIZO patented drift correction function quickly stabilizes the brightness level. In addition, a sensor measures the backlight brightness and compensates for brightness fluctuations caused by the ambient temperature and the passage of time.
Customer Assurance with Medical Standards
Meets the strictest medical, safety, and EMC emission standards.
Warranty with Safety and Trust
EIZO and its authorized distributors offer a five-year full warranty.
Displaying with Separate Brightness Levels
For monochrome monitors, Hybrid Gamma function automatically distinguishes the medical images from the non-medical areas such as the tool palettes and displays each one at its optimum brightness. Decreasing the tool palette area’s brightness leads to less eye fatigue.
Accuracy in distinction may depend on how images are aligned.
Viewer software compatibility verification is required.
Diagnostic Precision with DICOM Part 14 Factory Adjustment
To ensure the most accurate and consistent shadings possible, EIZO carefully measures and sets every grayscale tones on the production line to produce a monitor compliant with DICOM Part 14.
Presence Sensor for Power Savings
The presence sensor feature unites convenience with savings by ensuring that the monitor conserves power when it is not in use. The presence sensor prompts the monitor to switch to power save mode when it detects the user is away from the monitor, and then resume normal operation when the user returns.
10-Bit Simultaneous Grayscale Display
10-bit (1,024 tones) simultaneous grayscale display extends grayscale fidelity to the boundaries of human visual perception abilities and helps radiologists discern the finest nuances within an image.
10-bit graphics board and 10-bit viewer software needed for 10-bit display.
Mode Selection for Optimum Viewing
Selectable with the front panel buttons, the CAL Switch function allows for various imaging modes of different modalities such as CR, CT, and endoscope images. Furthermore, auto mode settings can be made with the Auto CAL Switch function.
Wide Viewing Angles for Multiple People Use
Wide Viewing angles with minimal color shift when viewed from the side.
Brightness Stability Within Usage Time Guaranteed
EIZO’s confidence in its product quality extends to brightness stability which is also covered during the usage time specified in the warranty.
Versatile Positioning for Improved Operability
EIZO’s highly versatile stand offers tilt, swivel and a wide height adjustment range enabling you to use the monitor with greater comfort.
Specification
Model Variations | GX340-CL: Clear Base GX340-CL-P: Pairing |
---|---|
Cabinet Color | Black |
Panel | |
Type | TFT Monochrome LCD Panel |
Backlight | LED |
Size | 54 cm / 21.3″ (541 mm diagonal) |
Native Resolution | 1536 x 2048 |
Display Size (H x V) | 324.8 x 433.1 mm |
Pixel Pitch | 0.2115 x 0.2115 mm |
Grayscale Tones | 10-bit (DisplayPort): 1,024 from a palette of 16,369 tones 8-bit: 256 from a palette of 16,369 tones |
Viewing Angles (H / V, typical) | 176°, 176° |
Brightness (typical) | 1,200 cd/m2 |
Recommended Brightness for Calibration | 500 cd/m2 |
Contrast Ratio (typical) | 1400:1 |
Response Time (typical) | 40 ms (On/Off) |
Video Signals | |
Input Terminals | DVI-D (dual link) x 1, DisplayPort x 1 |
Digital Scanning Frequency (H / V) | 31 – 127 kHz / 29 – 61 Hz (VGA Text: 69 – 71 Hz) Frame synchronous mode: 29.5 – 30.5 Hz, 59 – 61 Hz |
USB | |
Function | 1 upstream, 2 downstream |
Standard | Rev. 2.0 |
Power | |
Power Requirements | AC 100 – 120 V, 200 – 240 V: 50 / 60 Hz |
Maximum Power Consumption | 90 W |
Typical Power Consumption | 36 W |
Power Save Mode | Less than 1.6 W |
Power Management | DVI DMPM, DisplayPort 1.1a |
Sensor | Backlight Sensor, Integrated Front Sensor, Presence Sensor, Ambient Light Sensor |
Features & Functions | |
Brightness Stabilization | Yes |
Preset Modes | CAL-Switch |
Digital Uniformity Equalizer | Yes |
OSD Languages | English, German, French, Italian, Japanese, Simplified Chinese, Spanish, Swedish, Traditional Chinese |
Physical Specifications | |
Net Weight | 10.2 kg |
Net Weight (Without Stand) | 7.5 kg |
Hole Spacing (VESA Standard) | 100 x 100 mm |
Certifications & Standards (Please contact the EIZO group company or distributor in your country for the latest information.) | CE (Medical Device Directive), EN60601-1, UL60601-1, CSA C22.2 No. 601-1, IEC60601-1, VCCI-B, FCC-B, Canadian ICES-003-B, C-tick, RoHS, China RoHS, WEEE, CCC, GOST-R |
FDA 510(k) Clearance | Yes (for General Radiography) |
Supplied Accessories | AC power cord, dual link signal cable (DVI-D – DVI-D), signal cable (DisplayPort – DisplayPort), USB cable, Utility Disk (RadiCS LE, ScreenManager Pro for Medical, user’s manual) |
Warranty | Five Years |
Dimension Drawing | GIF |
Brochures
Manuals
Please note that you must be a registered user to download RadiForce relevant files. If you have not registered, please continue on to our registration page. If you have forgotten your User ID or Password, please send us an e-mail.
Document | Language | Size | Download |
---|---|---|---|
RadiForce GX240 / GX340 (English) | English | 2.04 MB | ![]() ![]() ![]() ![]() |
ScreenSlicer Ver.1.1.2 Software manual (English) | English | 1.75 MB | ![]() ![]() ![]() ![]() |
Technical Information
November 14, 2012 | The Advantages of Medical LCD Monitors with LED Backlights [PDF] This document explains the three advantages of medical image display monitors that utilize an LED backlight |
