Optik View SC4384 43-inch 4K Surgical Display
- 43” 4K wide angle screen supports team viewing from in-field, circulating and anesthesia locations
- Ultra-high brightness and contrast improves depth percept-ion and deep cavity interrogation
- Connectivity configurable with HDMI and DP native inputenabling not only the latest technology but also providing backwards compatibility
- Conforms to ITE 60601 certifications for safety and quality assurance to ensure years of reliable operation
MASTER DISTRIBUTOR
24X7 SUPPORT
COMPETITIVE PRICING
SAME DAY SHIPPING
VALUABLE CONSULTATION

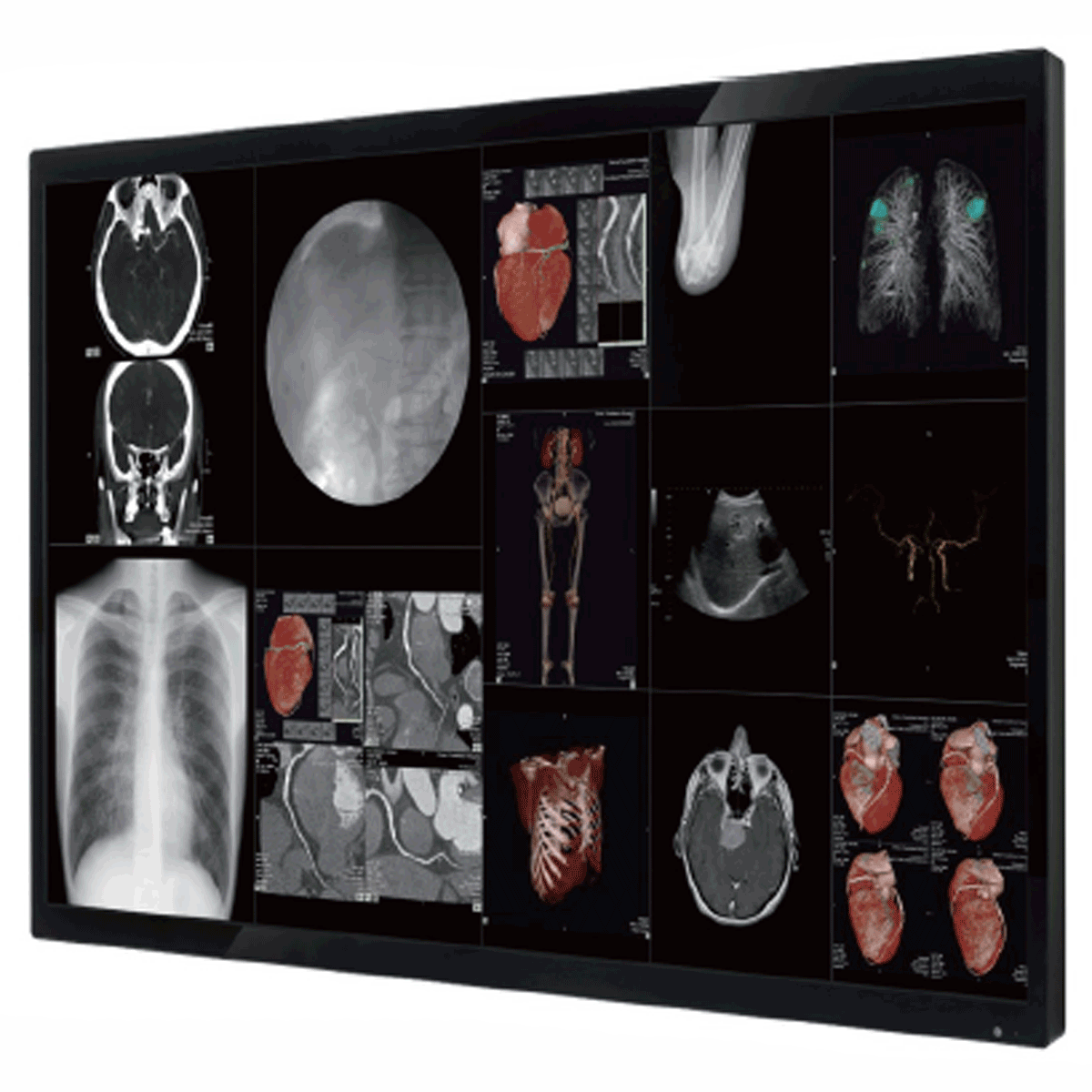

Optik View SC4384 43-inch 4K Surgical Monitor
Optik View SC4384 enhanced case support through real time team viewing of multiple sources.
Clinically Focused
Designed to enhance procedure guidance and in-room education during minimally invasive procedures, the SC4384XX 43” 4K Surgical Display supports team viewing of one or more sources to improve workflow through coordinated case support. This 43″ 4K Display delivers vivid, precise, and consistently uniform video and life-like images through:
- 3840×2160 4K resolution improves visualization of minute details.
- Ultra-high brightness and contrast improves depth percept-ion and deep cavity interrogation.
- Wide screen enhances viewing of one or more sources.
Easy to Experience
TLGC surgical displays are easy to install, operate, and maintain. Built with proven componentry and established manufacturing practices, each SC4384XX is thoroughly tested prior to Customer shipment and is backed by TLGC’s commitment to quality and satisfaction.
- 43” 4K wide angle screen supports team viewing from in-field, circulating and anesthesia locations.
- Connectivity; HDMI and Display Port inputs so the user willhave a consistent display option
- Conforms to ITE 60601 certifications for safety and quality assurance to ensure years of reliable operation.
Advanced
Configured with industry leading Surgical Ready features required by the most demanding medical environments, this 43” 4K Display is offered with and without impact shield. Sealed Design protects against ingress and simplifies disinfection.
- Connectivity configurable with HDMI and DP native inputenabling not only the latest technology but also providing backwards compatibility.
- ClearViewAR delivers clear, crisp images to reduce eye fatigue.
- Device Control Interface improves workflow.
Support
Model: SC4384
Specifications
| Panel spec | |
| Type | IPS Active Matrix |
| Resolution | 3840 × 2160 |
| Active Screen Size (inches, diagonal) | 43 |
| Display Area (mm) | 941.19 (H) × 529.42 (V) |
| Pixel Pitch (mm) | 0.2451 × 0.2451 |
| Viewing Angle (degree) | 178/178 |
| Response time (ms) | 8 |
| Brightness (cd/m²) | 500 |
| Contrast Ratio | 1200:1 |
| Color Gamut | NTSC 72% |
| Display Colors (bits) | 10 (1.07B) |
| I/O Interface | |
| DVI | DVI-D In ×1 |
| HDMI | HDMI 2.0 ×1 |
| DisplayPort | DP 1.2 In ×2, Out ×1 |
| 3G-SDI | 3G-SDI In ×1, Out ×1 |
| SDVoE or 12G-SDI | via Option Module card only |
| Audio In/Out | 3.5mm Out ×1 |
| USB Hub | No |
| Serial Remote | native RS232 DB9 ×1 (or USB-B, or RJ45) |
| Features | |
| Color Temp. Adjust | 5400K, 6500K, 7600K, 9300K, User |
| Gamma Selection | Native, 1.8, 2.0, 2.2, DICOM |
| OSD Languages | English |
| User Color Adjust | R Gain/G Gain/B Gain |
| Touch Screen | No |
| Speakers | N/A |
| DC Output | DC 12V/1A ×1, DC 5V/2A ×1, DVI 5V/1A (14pin/16pin) ×1 |
| Power Requirements | |
| Power Supply | Internal AC 100V~240V |
| Physical Characteristics | |
| Dimensions (W× H × D) (mm) | 999.1.38 (L) × 72.45 (W) × 587.5 (H) |
| Weight (Kg) | 16.4 (w/o Glass) / 20.3 (with Glass) |
| Glass (optional) | Anti-reflection, anti-smudge |
| VESA Mounting (mm) | 400 × 200 |
| Color (bezel/enclosure) | Black/Black |
| Cable Cover | No |
| Cable Cover | No |
| IP Rating (Front) | IPx2 (when optional glass is installed) |
| IP Rating (Back Cover) | No |
| Environmental | |
| Operating Temperature (°C) | 0 to 40 |
| Operating Humidity | 30% to 75% |
| Storage Temperature (°C) | -20 to 60 |
| Storage Humidity | 10% to 80% |
| Certification | |
| ANSI/AAMI ES60601-1, CAN/CSA-C22.2 No. 60601-1, IEC 60601-1,EN 60601-1-2, EN55032, EN55035, FCC Part 15-B, ICSE-003, RoHS | |
