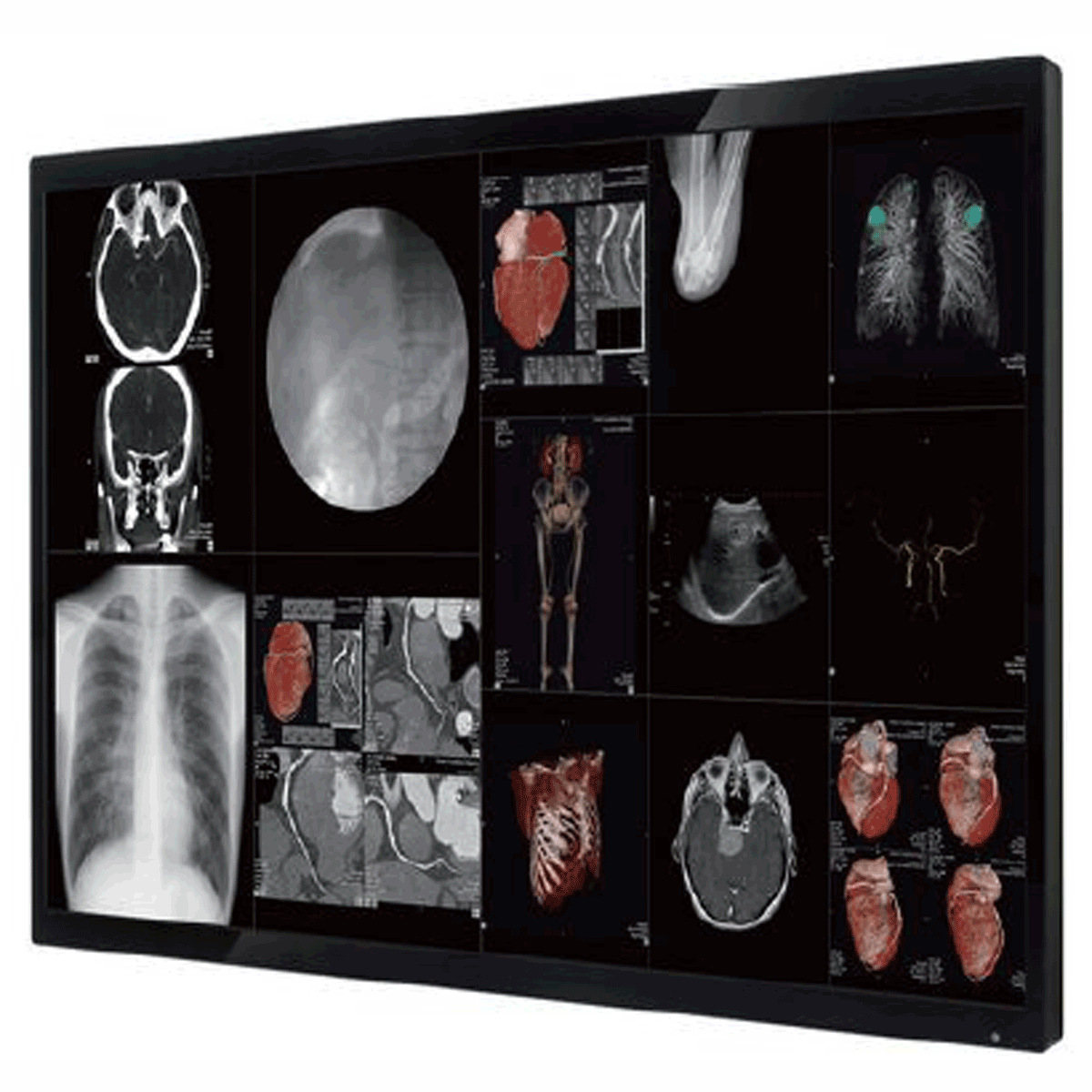

Optik View SC55844 55-inch 4K Surgical Display
- 55” 4K wide angle screen supports team viewing from in-field, circulating and anesthesia locations
- Ultra-high brightness and contrast improves depth percept-ion and deep cavity interrogation
- Universal Connectivity; HDMI, DVI, SDI, Fiber and DisplayPort inputs so the user will have a consistent display option
- Conforms to ITE 60601 certifications for safety and quality assurance to ensure years of reliable operation
MASTER DISTRIBUTOR
24X7 SUPPORT
COMPETITIVE PRICING
SAME DAY SHIPPING
VALUABLE CONSULTATION
Optik View SC55844 55-inch 4K Surgical Monitor – Sales, Repair Service & Exchange
Optik View SC55844 enhanced case support through real time team viewing of multiple sources.
Clinically Focused
Designed to enhance procedure guidance and in-room education during minimally invasive procedures, the SC55844X 55” 4K Surgical Display supports team viewing of one or more sources to improve workflow through coordinated case support. This 55″ 4K Display delivers vivid, precise, and consistently uniform video and life-like images through:
- 3840×2160 4K resolution improves visualization of minute details.
- Ultra-high brightness and contrast improves depth percept-ion and deep cavity interrogation.
- Wide screen enhances viewing of one or more sources.
Easy to Experience
TLGC surgical displays are easy to install, operate, and maintain. Built with proven componentry and established manufacturing practices, each SC55844X is thoroughly tested prior to Customer shipment and is backed by TLGC’s commitment to quality and satisfaction.
- 55” 4K wide angle screen supports team viewing from in-field, circulating and anesthesia locations.
- Universal Connectivity; HDMI, DVI, SDI, Fiber and DisplayPort inputs so the user will have a consistent display option
- Conforms to ITE 60601 certifications for safety and quality assurance to ensure years of reliable operation.
Advanced
Configured with industry leading Surgical Ready features required by the most demanding medical environments, this 55” 4K Display is offered with and without impact shield. Sealed Design protects against ingress and simplifies disinfection.
- Universal Connectivity configurable with HDMI, DVI, DP, SDI,and Fiber inputs enabling not only the latest technology but also providing backwards compatibility.
- ClearViewAR delivers clear, crisp images to reduce eye fatigue.
- Device Control Interface improves workflow.
Support
Model: SC55844
Specifications
| Panel spec | |
| Type | TFT-LCD |
| Resolution | 3840 × 2160 |
| Active Screen Size (inches, diagonal) | 55 |
| Display Area (mm) | 1209.6 (H) × 680.4 (V) |
| Pixel Pitch (mm) | 0.372 × 0.372 |
| Viewing Angle (degree) | 178/178 |
| Response time (ms) | 8 |
| Brightness (cd/m²) | 800 |
| Contrast Ratio | 1200:1 |
| Color Gamut | NTSC 72% |
| Display Colors (bits) | 8+HiFRC (1.07B) |
| I/O Interface | |
| DVI | SL-DVI In ×1 |
| HDMI | HDMI 2.0 In ×1, Out ×1 |
| DisplayPort | DP 1.2 In ×2, Out ×1 |
| 3G-SDI | 3G-SDI In ×1, Out ×1 |
| Audio In/Out | N/A |
| USB Hub | No |
| Serial Remote | native RS232 DB9 ×1 (or RJ45 for SSL) |
| Features | |
| Color Temp. Adjust | 5400K, 6500K, 7600K, 9300K, User |
| Gamma Selection | Native, 1.8, 2.0, 2.2, DICOM, BT709, BT2020, DCI-P3 |
| OSD Languages | English |
| User Color Adjust | R Gain/G Gain/B Gain |
| Touch Screen | No |
| Speakers | N/A |
| DC Output | DC 12V/1A ×1, DC 5V/2A ×1 |
| Power Requirements | |
| Power Supply | 90-264 VAC 50-60Hz |
| Power Consumption (W) | Full Brightness: 140, Power Saving: 8.4, Off: 3.7 |
| Physical Characteristics | |
| Dimensions (W× H × D) (mm) | 1269.4 (L) × 740.2 (W) × 79.5 (H) |
| Weight (Kg) | 25.3±1.3 (w/o Glass) / 31.8±1.6 (with Glass) |
| Glass (optional) | Anti-reflection, anti-smudge |
| VESA Mounting (mm) | 400 × 400, 400 × 200 |
| Color (bezel/enclosure) | Black/Black |
| Cable Cover | No |
| Cable Cover | No |
| IP Rating (Front) | IPx2 (when optional glass is installed) |
| IP Rating (Back Cover) | No |
| Environmental | |
| Operating Temperature (°C) | 0 to 40 |
| Operating Humidity | 20% to 80% |
| Storage Temperature (°C) | -20 to 60 |
| Storage Humidity | 10% to 90% |
| Certification | |
| ANSI/AAMI ES60601-1, CAN/CSA-C22.2 No. 60601-1, IEC 60601-1; EN 60601-1-2, EN55032, EN55035, FCC Part 15-B, ICSE-003 | |
