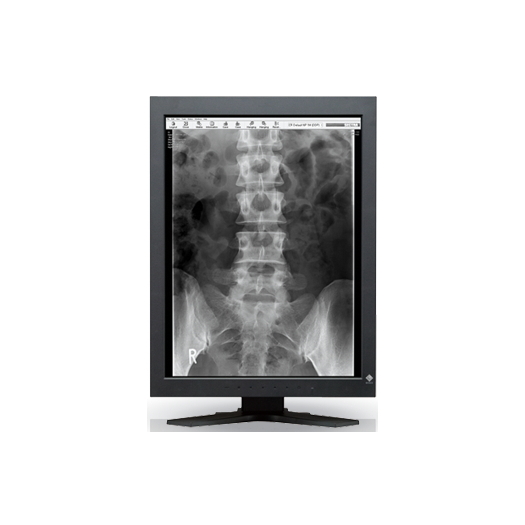

Single Head 2MP EIZO Monochrome – GS220-CL-SH-N200D5DE


To ensure the most accurate and consistent shadings possible, EIZO carefully measures and sets every grayscale tones on the production line to produce a monitor compliant with DICOM Part 14.
Brightness Uniformity for a Steadier Image Across the Screen

The Digital Uniformity Equalizer (DUE) function provides optimum brightness uniformity which is difficult to attain due to the characteristics of LCD monitors.


Replaced with New Product

Mode Selection for Optimum Viewing

Selectable with the front panel buttons, the CAL Switch function allows for various imaging modes of different modalities such as CR, CT, and endoscope images. Furthermore, auto mode settings can be made with the Auto CAL Switch function.
Wide Viewing Angles for Multiple People Use

Wide Viewing angles with minimal color shift when viewed from the side.
Versatile Positioning for Improved Operability

EIZO’s highly versatile stand offers tilt, swivel and a wide height adjustment range enabling you to use the monitor with greater comfort.
Customer Assurance with Medical Standards

Meets the strictest medical, safety, and EMC emission standards.
Warranty with Safety and Trust

EIZO and its authorized distributors offer a five-year limited warranty.
Consistency with DICOM Part 14 Calibration

With the bundled RadiCS LE quality control software, a simplified calibration compliant with the DICOM Part 14 standard can be performed to correct the brightness and grayscale tones of the monitor ensuring the most accurate and consistent shadings possible over time.
10-Bit Simultaneous Grayscale Display

10-bit (1,024 tones) from a 13-bit look-up table (8,161 tones) can be displayed simultaneously for high-definition medical imaging.

10-bit graphics board and 10-bit viewer software needed for 10-bit display.

10-Bit Simultaneous Grayscale Display
Quick Brightness Stabilization for Instant Viewing

At startup or upon wakeup, the EIZO patented drift correction function quickly stabilizes the brightness level. In addition, a sensor measures the backlight brightness and compensates for brightness fluctuations caused by the ambient temperature and the passage of time.
Brightness Stability Within Usage Time Guaranteed

EIZO’s confidence in its product quality extends to brightness stability which is also covered during the usage time specified in the warranty.


Model Variations GS220-CL: Clear Base
GS220-CL-P: Pairing
Cabinet Color Black
Type TFT Monochrome LCD Panel (IPS)
Backlight CCFL
Size 54 cm / 21.3″ (541 mm diagonal)
Native Resolution 1200 x 1600
Display Size (H x V) 324.0 x 432.0 mm
Pixel Pitch 0.270 x 0.270 mm
Grayscale Tones 1,024 from a palette of 8,161 tones
Viewing Angles (H / V, typical) 170°, 170°
Brightness (typical) 1,000 cd/m2
Recommended Brightness for Calibration 500 cd/m2
Contrast Ratio (typical) 850:1
Response Time (typical) 23 ms (On/Off)
Video Signals
Input Terminals DVI-D x 1
Digital Scanning Frequency (H / V) 31 – 100 kHz / 48 – 71.5 Hz (VGA Text: 69 – 71 Hz)
Frame synchronous mode: 59 – 61 Hz
Function 1 upstream, 2 downstream
Standard Rev. 2.0
Power Requirements AC 100 – 120 V, 200 – 240 V: 50 / 60 Hz
Maximum Power Consumption 100 W
Power Save Mode Less than 3 W
Power Management DVI DMPM
Sensor Backlight Sensor
Features & Functions
Brightness Stabilization Yes
Preset Modes CAL-Switch
Digital Uniformity Equalizer Yes
OSD Languages English, German, French, Italian, Japanese, Simplified
Chinese, Spanish, Swedish, Traditional Chinese
Physical Specifications
Net Weight 9.9 kg
Net Weight (Without Stand) 6.9 kg
Hole Spacing (VESA Standard) 100 x 100 mm
Certifications & Standards (Please contact the EIZO group company or distributor in your country for the latest information.) CE (Medical Device Directive), EN60601-1, UL60601-1, CSA C22.2 No. 601-1, IEC60601-1, VCCI-B, FCC-B, Canadian ICES-003-B, C-tick, RoHS, CCC, GOST-R
FDA 510(k) Clearance Yes
(for General Radiography)
Supplied Accessories AC power cord, signal cable (DVI-D – DVI-D), USB cable, Utility Disk (RadiCS LE, ScreenManager Pro for Medical), user’s manual, warranty card
Warranty Five Years



RadiForce GS220
431 KBDownload



Please note that you must be a registered user to download RadiForce relevant files. If you have not registered, please continue on to our registration page. If you have forgotten your User ID or Password, please send us an e-mail.

Document Language Size Download
RadiForce GX220 / GS220 (English) English 2.75 MB Download
ScreenSlicer Ver.1.1.2 Software manual (English) English 1.75 MB Download

RadiForce 2MP mono Single Head LCD Display bundle with 1x GS220 display and 1x NVIDIA Quadro Q2000D PCIe x16 video card

SKU: GS220-CL-SH-N200D5DE Categories: ,
