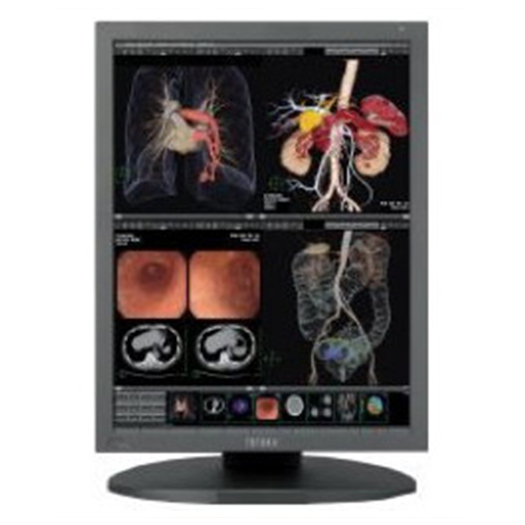

Single Head 3MP Totoku 21.3” Color

With high luminance and high contrast, and an integrated color calibration function, our CCL356i2 delivers highly accurate color reproduction faithful to the DICOM GSDF. The CCL356i2 includes a luminance compensation feature for edge to edge consistency, is fully configurable for multi-display applications, and comes standard with hardware-based pivot functionality for fast image drawing in portrait orientation.

Discontinued Product

With high luminance and high contrast, and an integrated color calibration function, our CCL356i2 delivers highly accurate color reproduction faithful to the DICOM GSDF. The CCL356i2 includes a luminance compensation feature for edge to edge consistency, is fully configurable for multi-display applications, and comes standard with hardware-based pivot functionality for fast image drawing in portrait orientation.

 Luminance stabilizing system λ-Sentinel II

λ-Sentinel II consists of a luminance sensor and luminance control circuit. The luminance sensor, integrated into the front bezel, consistently monitors and accurately stabilizes luminance on the screen by rapidly communicating with the backlight sensor.
In addition, a build-in luminance sensor provided with i2 models enables even simpler calibration without attaching the calibration sensor.



Specification

Model Name CCL356i2 /AR (Special AR Coating), CCL356i2 /F (Protective Filter)
LCD Technology 21.3-inch, Color, TFT active matrix IPS Technology
Display Area 433.152mm x 324.864mm
Pixel Pitch 0.2115mm x 0.2115mm
Contrast Ratio 750:1 (typ)
Maximum Luminance 800cd/m² (typ), (factory-set to 410cd/m² and 300cd/m²)
Viewing Angle 170° horizontal and vertical (typ)
Visual Performance Recommended Resolution 1536 x 2048, 2048 x 1536 (QXGA)
Color Display 16.77million colors out of 68 billion color
1073.74 million colors (DisplayPort 10bit input)
Input Signal Input Sync Signal DVI-D (DVI 1.0 compliant), DisplayPort (DisplayPort 1.1a compliant)
Plug and Play DDC2B compliant
Input Power Supply Input Built-in AC power supply, 100V-240V (±10%) 50/60Hz
Maximum Power Consumption 120W (typ), (with power management feature)
Features Calibration Control Luminance, Gamma, Color temp., Capability to save 3 sets of LUT settings (A n optional calibration kit is required.)
OSD Information Display Model name, Serial No., Total operating time, Calibration settings (Operating
time from Last Calibration, Luminance, Gamma, etc.), Current luminance, Ambient brightness, etc.
USB Hub USB Rev. 2.0 compliant, Self-powered
USB upstream connector (x1), USB downstream connector (x2)
Other Features Luminance and Uniformity Correction, Hardware Pivot, LED indicator, Advanced power saving, Configuration switching function
Standards UL60601-1, CSA C22.2 No. 601.1, MDD/CE, FCC-B, VCCI-B, RoHS,CCC, FDA510(k)
Physical Characteristics Dimensions (WxHxD) Landscape: 474mm x 471.4/532.9mm x 220mm
Portrait: 367mm x 524.9/586.4mm x 220mm
Weight Net: approx. 12kg
Tilt Stand Tilt, swivel, landscape/portrait rotation
Mount 100mm VESA compliant
Security Slot On the back of the panel and the tilt stand
Accessories Power cord (3P), DVI cable, USB cable, Operation manual
*Cleaning kit (Special AR coating model only)


The Single Head CCL356i2 is a 3MP 21.3″ color radiology display high-­‐luminance and high-­‐
contrast display for diagnostic with advanced grayscale display with the
matching Quadro 2000D video card. The CCL356i2 includes a luminance compensation feature for edge to edge consistency, is fully configurable for Quadro multi-­‐display applications, and comes standard with hardware-­‐based pivot functionality for fast image drawing in portrait orientation. 5 year warranty.

List Price: $6,026.00

SKU: CCL356i2-SH-Quadro 2000DT Category:
