2MP Medical Clinical Eonis 24.1'' - MDRC-2224 / K9301808A
Barco 24” Touch Screen Clinical Review Display MDRC-2324 HTEW - K9350071
Barco Coronis Fusion MDCC-4430 30" 4MP Color Diagnostic Display without Video Card - MDCC-4430 / K9602933
Eizo Radiforce RX360 (RX360-BK) 21.3" 3MP Color Diagnostic Display
Calibration Kit for All EIZO Monitors -RadiCS-UX2
Single Head 5MP JVC/Totoku 21.3” Color – CCL550i2-SH-M2000
The first FDA cleared 5M color display for digital mammography.
All in one solution for multi modality visualization.
Totoku CCL550i2 Features
The First FDA Cleared 5M Mammography Color Display
CCL550i2 ensures confidence in reading digital mammography without compromising brightness and contrast. Ultrasound, CT, MRI images can also be displayed on single screen for an effective diagnostic practice.
Call for Replacement Option
The First FDA Cleared Single Head 5MP Mammography Color Display, the CCL550i2 ensures confidence in reading digital mammography without compromising brightness and contrast. Ultrasound, CT, MRI images can also be displayed on single screen. Single head with one (1) 5MP LCD display with matching M2000 video card. Specs: LED backlight system,21.3″ color, Contrast Ratio: 1300:1 (typ), Maximum Luminance: 1000 cd/m² (typ) / 410 cd/m² (calibrated). 5 year manufacturer’s warranty.
|Model Name||CCL550i2 /AR (AR coating)
CCL550i2 /F (Protective filter)
CCL550i2 /N (No protective)
|LCD Panel||Technology||21.3-inch color TFT IPS technology|
|Display Area||338 mm x 422 mm|
|Pixel Pitch||0.165 mm x 0.165 mm|
|Contrast Ratio||1300:1 (typ)|
|Maximum Luminance||1000 cd/m² (typ)
500 cd/m² / 410 cd/m² (calibrated)
|Viewing Angle||176° horizontal and vertical (typ)|
|Visual Performance||Native Resolution||2048×2560|
|Display Colors||16.77 million colors from a palette of 280 trillion colors
1.06 billion colors with DisplayPort and 10-bit viewer
|Interface||Input Signal||DVI-D (DVI 1.0 compliant)
DisplayPort (DisplayPort 1.1a compliant)
|Plug and Play||DDC2B compliant|
|Input Power Supply||Input Power Supply||100V – 240V 50/60Hz|
|Maximum Power Consumption||95W (typ)
Power management feature
|Features||Calibration Control||Luminance, Gamma, Color temperature
Storing 3 sets of LUT
|OSD Information Display||Model name, Serial No., Total operating time, Calibration settings (Operating time since last calibration, Luminance, Gamma), Current luminance|
|USB Hub||USB Rev.2.0 compliant, Self-powered, USB upstream connector (x1), USB downstream connector (x2)|
|Other Features||Luminance / color uniformity correction, Hardware pivot, LED indicator, Configuration selection|
|Approvals||ANSI/AAMI ES60601-1(2005), CAN/CSA-C22.2 No. 60601-1(2008), FDA 510(k), FCC-B, ICES-003-B,CE, VCCI-B|

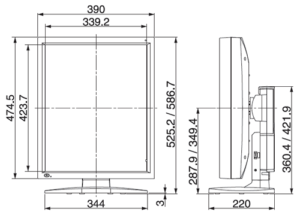

|Physical Characteristics||Dimensions (WxHxD)||Landscape : 475 mm x 483 / 544 mm x 220 mm
Portrait : 390 mm x 525 / 587 mm x 220 mm
|Tilt Stand||Tilt, Swivel, Portrait / Landscape|
|Mount||VESA standard (100 mm x 100 mm)|
|Security Slot||Anti-theft security slots (display and tilt stand)|
|Accessories||Power cord, DVI cable, DisplayPort cable, USB cable, User manual, Cleaning kit*
*AR coating model only
5MP JVC/Totoku 21.3 High Bright Mammo Display – MS55i2 PlusRead more
The MS55i2 Plus comes with 1,000 cd/m2 calibration to make it the best solution for breast tomosynthesis imaging. The brighter screen dramatically increases the number of perceptual grayscale steps to improve visibility of microcalcifications, tumors and structures. Mamography diagnostic reading will be much more efficient.
Thanks to the new energy saving LED backlight LCD, MS55i2 Plus provides more stability in image quality for a long period of time. Also the new function of DICOM conformance self-test function comes with this newly upgraded digital mammography display. In addition to the advanced features of the current TOTOKU’s products, MS55i2 Plus is equipped with some new technologies to deliver higher performance in diagnostic reading. By adopting new generation IPS LCD with LED backlight, MS55i2 Plus has achieved high contrast ratio of 1400:1, providing brighter and crisper images ever.
2MP Totoku 21.3” Color Display – CCL210Read more
With high luminance, high contrast, wide viewing angle and full calibration capability, CCL210 is a cost effective solution for clinical applications.
Totoku CCL210 Features
Color calibration function to reproduce colors faithful to the original and grayscale compliant with DICOM Part 14
By calibrating color temperature, luminance, and gamma characteristics, reproduction of colors faithful to the original and smooth display of grayscale are possible.
Call for Replacement Option
Calibration Kit for All EIZO MonitorsRead more
RadiCS-UX1 provides total support for the quality maintenance and control of client monitors, covering everything from calibration to acceptance and constancy tests, calibration history and asset management. Complying with AAPM, DIN, JESRA, IEC and other standards, RadiCS-UX1 enables precise QC with easy-to- follow procedures.
Eizo calibration kit for RadiFoce color and mono displays, includes UX1 sensor and RadiCS software
NEW! Single Head 3MP EIZO 21.3” Radiforce MonochromeRead more
3 megapixel high-resolution diagnostic monochrome radiology monitor ideal for displaying an entire chest CR image. High-definition and multifunctional model featuring precise calibration compliant with the DICOM Part 14 standard.
Environmentally-Friendly LED Backlight
Call for Best Price!
