2MP Barco Eonis Color LCD Clinical Review Display
New! Barco 4MP Coronis Fusion Color Diagnostic Display - MDCC-4430 / K9602975
NEW! 5MP Dual Head Barco Coronis Grayscale without Video Card - MDCG-5221 / K9602712
NEW! JVC 2MP 21.3 Clinical Review Display - CL-R211
Eizo RadiForce MX315W (MX315W-BK) 8MP Clinical Review Display

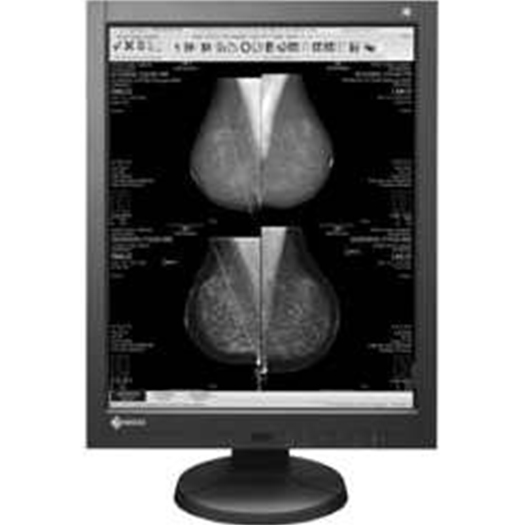

Single Head EIZO 5MP MONOCHROME LCD – GX530
RadiForce GX530 5MP 54cm (21.3″) MONOCHROME LCD MONITOR with a high brightness of 1,200 cd/m2 enables this 5 megapixel radiology monitor to offer a long usage time guarantee of 40,000 hours. With high-end features like the Integrated Front Sensor for self-calibration and the integrated presence sensor for energy savings, the GX530 offers you tomorrow’s technology today.
High Contrast Ratio of 1200:1
The high contrast ratio brings out the subtle differences in similar shades of gray and sharper rendering of details when displaying monochrome images such as the digital mammography, MRI, and ultrasound images.
“Information volume” of a digital mammography image should exceed 5 million pixels. When a lower resolution monitor displays this “Information volume”, the monitor stretches the information forcing the mosaic to appear as shadings. With a 2048 x 2560 resolution or 5.24 million pixels, the stretching effect is minimized and the mosaic becomes suitable for rendering subtle masses and calcifications, within the mammography image.
10-Bit Simultaneous Grayscale Display
10-bit (1,024 tones) simultaneous grayscale display extends grayscale fidelity to the boundaries of human visual perception abilities and helps radiologists discern the finest nuances within an image.
- 10-bit graphics board and 10-bit viewer software needed for 10-bit display.
Wide Viewing Angles for Multiple People Use
Wide Viewing angles with minimal color shift when viewed from the side.
Smooth Response with Dual Link
With dual link input support, monitors achieve a clock frequency of 50 Hz even when displaying in high resolution. This enables smooth response when adjusting window level or width through the DICOM viewer application compared to single link connection.
- Graphics board with dual link compatibility required.
Long Service Life with the High Brightness
When used at the recommended brightness for calibration of 500 cd/m2, the monitor offers a long usage time guarantee of 40,000 hours. This contributes to a reduction in long-term asset management and maintenance costs.
With ScreenManager Pro for Medical utility software installed, the Backlight Saver function turns off/on the monitor’s backlight in conjunction with the screen saver or the viewer application. This function helps to reduce power consumption when the monitor is used for a prolonged period of time.
Next Generation Connectivity
Next-generation DisplayPort connectivity allows a large volume of information transmitted at once, which means the monitor can more easily adapt to high resolution or multi-grayscale display.
High-Definition and High-Density
Pixel size of 0.165 mm provides high-definition and high-density display without shadings appearing granular.
Easy Calibration with Integrated Front Sensor
An Integrated Front Sensor housed within the front bezel performs calibration compliant to DICOM Part 14. The sensor does not interfere with the viewing area and is protected from inadvertent damage or removal.
DICOM Part 14 Factory Adjustment
To ensure the most accurate and consistent shadings possible, EIZO carefully measures and sets every grayscale tones on the production line to produce a monitor compliant with DICOM Part 14.
Quick Brightness Stabilization for Instant Viewing
At startup or upon wakeup, the EIZO patented drift correction function quickly stabilizes the brightness level. In addition, a sensor measures the backlight brightness and compensates for brightness fluctuations caused by the ambient temperature and the passage of time.
Mode Selection for Optimum Viewing
Selectable with the front panel buttons, the CAL Switch function allows for various imaging modes of different modalities such as digital mammography, ultrasound, and MRI images. Furthermore, with ScreenManager Pro for Medical installed, auto mode settings can be made with the Auto CAL Switch function.
Brightness Stability Within Usage Time Guaranteed
EIZO’s confidence in its product quality extends to brightness stability which is also covered during the usage time specified in the warranty.
Presence Sensor for Power Savings
The presence sensor feature unites convenience with savings by ensuring that the monitor conserves power when it is not in use. The presence sensor prompts the monitor to switch to power save mode when it detects the user is away from the monitor, and then resume normal operation when the user returns.
EIZO offers the same color and grayscale for two monitors bundled as a pair in one box.
Customer Assurance with Medical Standards
Meets the strictest medical, safety, and EMC emission standards.
Digital Mammography Monitor Quality Control Standards Compliance
EIZO’s easy-to-use RadiCS UX1 quality control tool (sold separately) performs precise calibration conforming to DICOM Part 14 and enables quality control complying with ACR Practice Guideline and other QC standard for digital mammography monitors.
5 Year Warranty
EIZO and its authorized distributors offer a five-year limited warranty.
EIZO Quality Control supports Macintosh Computers!
NEW! Single Head 3MP EIZO 21.3” Radiforce MonochromeRead more
3 megapixel high-resolution diagnostic monochrome radiology monitor ideal for displaying an entire chest CR image. High-definition and multifunctional model featuring precise calibration compliant with the DICOM Part 14 standard.
Environmentally-Friendly LED Backlight
Call for Best Price!
Single Head 3MP Totoku Color Medical Monitor with Advanced Grayscale DisplayRead more
Single Head 21.3 inch 3MP Color Hi-Brite LCD w/ Front Sensor and matching PCIe Quadro 2000D video card. High-Luminance 3MP color display for diagnostic imaging realizes advanced grayscale LCD monitor. With high luminance and high contrast, and an integrated color calibration function, the CCL354i2 delivers highly accurate color reproduction faithful to the DICOM GSDF. The CCL354i2 includes a luminance compensation feature for edge to edge consistency, is fully configurable for multi-display applications, and comes standard with hardware-based pivot functionality for fast image drawing in portrait orientation.
1.3MP Totoku Medical Color Monitor 19” – CCL192 plusRead more
Totoku CCL192 plus Medical Color Monitor 19″ 1.3MP Color LCD w/picture-in-picture and S-VIDEO feature
1.3 megapixel 19″ color LCD CCL192 plus
Built-in overdrive circuit for smooth display of moving images and support of multiple interfaces
Multifunctional model equipped with an overdrive circuit to reduce afterimage effects, supports multiple input signals and has a built-in power supply unit.
2MP EIZO 21.3” Monochrome LCD with LED BlacklightRead more
EIZO RadiForce GX2402MP 54cm (21.3″) MONOCHROME LCD Radiology Monitor. 2 megapixel high-resolution diagnostic monochrome monitor ideal for a wide variety of tasks from viewing CR, DR, MRI and CT images to use as a PACS/HIS/RIS terminal. High-definition and multifunctional model featuring precise calibration compliant with the DICOM Part 14 standard.
Longer Service Life with LED Backlight
Unlike conventional CCFL backlights, LED backlights deteriorate more slowly and thus the monitor offers a longer service life. This ensures stable and reliable performance that is needed for diagnostic monitors. Since the LED backlight is mercury free, it will reduce any potential impact on the environment when it is disposed of.
