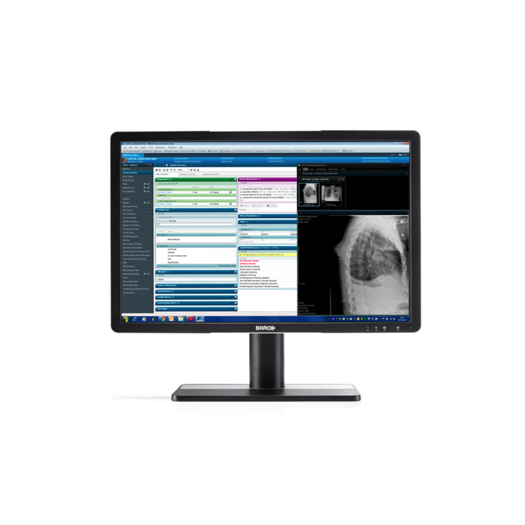

2MP Medical Clinical Eonis 24.1” – MDRC-2224 / K9301808A
This 24″ Eonis® display has been built with healthcare specialists in mind. It combines consistent, high image quality and an attractive, versatile design with networked quality assurance.
High image quality
The high-quality Eonis display presents sharp, bright images with high contrast. The display’s unique front consistency sensor automatically aligns the image quality every time the display is switched on. The image consistency makes collaboration between specialists easier. They can discuss images with colleagues at multiple locations, knowing that everyone is seeing identical images.
Centralized quality assurance
MASTER DISTRIBUTOR
24X7 SUPPORT
COMPETITIVE PRICING
SAME DAY SHIPPING
VALUABLE CONSULTATION
The display comes complete with Barco’s cloud-based MediCal QAWeb software, an online service for automated calibration, Quality Assurance and asset management. Praised in hospitals around the world, MediCal QAWeb allows healthcare IT and PACS administrators to centrally and remotely manage image quality across the healthcare organization, at the click of a button.
Smart design, fit for purpose
Barco’s Eonis display features an integrated cable management system, making it safe to use in a clinical environment. The multiple mounting options and connections further add to the smart design.
Cleared for medical use Color display Compliant with DICOM specifications ultra-wide viewing angle: clearly visible image from nearly all angles Long lifetime LED technology Usable in portrait and landscape mode MediCal QA software included Front-of-screen consistency sensor to automatically align image quality WUXGA resolution
Features
- Front consistency sensor automatically aligns image quality
- IPS panel ensures wide viewing angle
- MediCal QAWeb suite for networked quality assurance, calibration and asset management all add to the exceptional, consistent image quality
- Covered cables
- Medical-grade certifications
- Socket for Kensington lock makes it safe for use in clinical environments
- Flexible VESA mount for easy arm, wall or cart mounting
- Screen positioning in both landscape and portrait mode
- Top connections for easy and secure connections
- Multiple inputs (HDMI, USB, etc.) ensure the display’s flexible deployment
Specification
| Screen technology | TFT Color LCD IPS |
|---|---|
| Active screen size (diagonal) | 611.3 mm (24.1”) 518.4 mm x 324.0 mm (20.41” x 12.76”) (HxV) |
| Backlight | LED |
| Aspect ratio | 16:10 |
| Resolution | 2MP (1920 x 1200) |
| Pixel pitch | 0.270 mm x 0.270 mm |
| Color imaging | Yes |
| Gray imaging | Yes |
| Color support | 10 bit; 16.7 million colors |
| Viewing angle | 178° (IPS) |
| Ambient Light Compensation (ALC) | Yes, preset values in OSD |
| Front sensor | Yes |
| Maximum luminance | 300 cd/m² typical |
| DICOM calibrated luminance | 180 cd/m² (default out-of-the-box setting) |
| Contrast ratio | 1000:1 typical |
| Response time (Tr + Tf) | 14 ms typical |
| Housing color | Black + Silver |
| Video input signals | VGA, DisplayPort, HDMI |
| USB ports | 1 upstream, 2 downstream |
| USB standard | 2.0 |
| Power requirements (nominal) | 100-240 V |
| Power consumption (nominal) | 40 W (less than 1.0 W in stand-by) |
| Power save mode | Yes |
| Power management | DPMS |
| Dot clock | 165 MHz |
| OSD languages | English, French, German, Spanish, Italian, Dutch, Japanese, Traditional Chinese, Simplified Chinese, Korean |
| Dimensions with stand (W x H x D) | 560.4 x 533 x 164.45 mm |
| Dimensions w/o stand (W x H x D) | 560.4 x 366 x 59.82 mm |
| Dimensions packaged (W x H x D) | 481 x 273 x 761 mm |
| Net weight with stand | 8.58 kg |
| Net weight w/o stand | 5.2 kg |
| Net weight packaged with stand | 12.58 kg |
| Height adjustment range | 100 mm +/- 5.0 mm |
| Tilt | -5° / +20° |
| Swivel | -45° / +45° |
| Pivot | 90° |
| Mounting standard | VESA (100 mm) |
| Screen protection | N/A |
| Certifications | CE (MDD 93/42/EEC class I product), CE-2014/30/EU, IEC 60601-1 (ED.3), IEC 60601-1 (ED.3);am1, ANSI/AAMI ES60601-1 (2005 + C1:09 + A2:10 + A1:12), CAN/CSA-C22.2 No. 60601-1 (2014), EN 60601-1-2:2007, EN 60601-1:2006/A11:2011/A1:2013/A12:2014, KC, VCCI, FCC class B, ICES-001 Level B, FDA Class I device, RoHS, BSMI |
| Supplied accessories | User Guide Cable routing strap Video cables (1 x DP, 1 x HDMI) Main cables (depending on the region of operation) USB 2.0 cable This adapter(s) is a forming part of the medical device.(Manufacturer: BridgePower Corp.; model:BPM060S12F03; Input:100-240 V AC, 50-60 Hz, 1.5 A; Output: +12V DC ( ), 5.0 A) |
| QA software | QAWeb & QAWeb Private Practice |
| Warranty | 3 years |
MDRC-2224 BK MKII. BARCO MDRC-2224 Eonis 24.1″ 2MP Medical Clinical Review Color LED Display – Black bezel.
