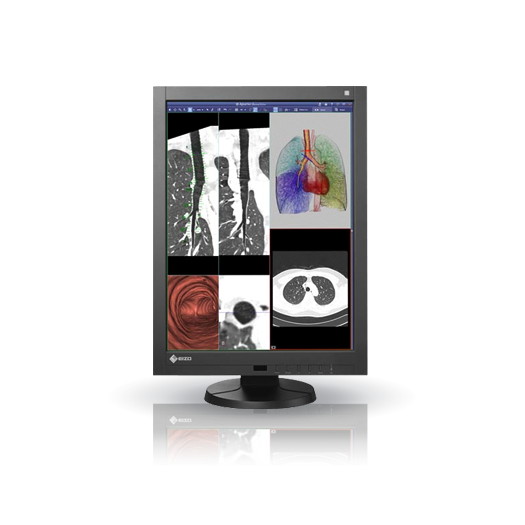

NEW! Single Head 2MP EIZO RadiForce Color – RX240-SH-N200D5DE
2 megapixel high-brightness color monitor ideal for accurate display of CR and DR grayscale images and color images such as 3D color rendering and endoscopic images. High-definition and multifunctional model featuring precise calibration compliant with the DICOM Part 14 standard.
Call for Replacement Option
Environmentally-Friendly LED Backlight
Longer Service Life with LED BacklightBy utilizing an energy-efficient LED as a backlight, the monitor achieves a high-brightness and low power consumption at the same time. Unlike conventional CCFL backlights, LED backlights deteriorate more slowly and thus the monitor offers a longer service life. Since the LED backlight is mercury free, it will reduce any potential impact on the environment when it is disposed of.
Diagnostic Precision with DICOM Part 14 Factory Adjustment
To ensure the most accurate and consistent shadings possible, EIZO carefully measures and sets every grayscale tones on the production line to produce a monitor compliant with DICOM Part 14.
Consistency with DICOM Part 14 Calibration
With the bundled RadiCS LE quality control software, a simplified calibration compliant with the DICOM Part 14 standard can be performed to correct the brightness and grayscale tones of the monitor ensuring the most accurate and consistent shadings possible over time.
Presence Sensor for Power Savings
The presence sensor feature unites convenience with savings by ensuring that the monitor conserves power when it is not in use. The presence sensor prompts the monitor to switch to power save mode when it detects the user is away from the monitor, and then resume normal operation when the user returns.
Monochrome and Color Images on One Monitor
A high-quality IPS panel with a high contrast ratio and high brightness makes this model ideal for displaying 3D rendering and fusion color images as well as CT and MRI monochrome images compliant with the DICOM Part 14 standard.
Brightness Uniformity for a Steadier Image Across the Screen
The Digital Uniformity Equalizer (DUE) function provides optimum brightness uniformity which is difficult to attain due to the characteristics of LCD monitors.
Quick Brightness Stabilization for Instant Viewing
At startup or upon wakeup, the EIZO patented drift correction function quickly stabilizes the brightness level. In addition, a sensor measures the backlight brightness and compensates for brightness fluctuations caused by the ambient temperature and the passage of time.
Brightness Stability Within Usage Time Guaranteed
EIZO’s confidence in its product quality extends to brightness stability which is also covered during the usage time specified in the warranty.
Customer Assurance with Medical Standards
Meets the strictest medical, safety, and EMC emission standards.
Color and Monochrome Images with Separate Gamma Curves
EIZO’s unique Hybrid Gamma function distinguishes whether the images being displayed are monochrome or color and displays each image in optimum brightness and grayscale tones. This expands the usability of PACS applications constantly attaining sufficiency with mix of color and monochrome medical images.
Accuracy in distinguishing between grayscale and color images may depend on how they are aligned. Viewer software compatibility verification is required.
Color and Monochrome Images with Separate Gamma Curves
Easy Calibration with Integrated Front Sensor
An Integrated Front Sensor (IFS) housed within the front bezel measures brightness and grayscale tones and calibrates to the DICOM Part 14 standard. Without having to connect and disconnect, an IFS performs QC tasks and does not interfere with the viewing area. This dramatically cuts monitor quality control workload and maintenance costs.
The monitor can support 10-bit input for each RGB color, displaying more than one billion colors simultaneously. This ensures accurate reproduction of color tones for 3D color rendering and image fusion.
10-bit color graphics board and 10-bit color viewer software needed for 10-bit color display.
Mode Selection for Optimum Viewing
Selectable with the front panel buttons, the CAL Switch function allows for various imaging modes of different modalities such as CR, CT, and endoscope images. Furthermore, auto mode settings can be made with the Auto CAL Switch function.
Wide Viewing Angles for Multiple People Use
Wide Viewing angles with minimal color shift when viewed from the side.
Versatile Positioning for Improved Operability
EIZO’s highly versatile stand offers tilt, swivel and a wide height adjustment range enabling you to use the monitor with greater comfort.
Warranty with Safety and Trust
EIZO and its authorized distributors offer a five-year full warranty.
|Type||TFT Color LCD Panel (IPS)|
|Size||54 cm / 21.3″ (540 mm diagonal)|
|Native Resolution||1200 x 1600|
|Display Size (H x V)||324.0 x 432.0 mm|
|Pixel Pitch||0.270 x 0.270 mm|
|Display Colors|| 10-bit colors (DisplayPort) : 1.07 billion (maximum) colors
8-bit colors: 16.77 million from a palette of 68 billion colors
|Viewing Angles (H / V, typical)||176°, 176°|
|Brightness (typical)||760 cd/m2|
|Recommended Brightness for Calibration||400 cd/m2|
|Contrast Ratio (typical)||1200:1|
|Response Time (typical)||40 ms (On/Off)|
|Input Terminals||DVI-D x 1, DisplayPort x 1|
|Digital Scanning Frequency (H / V)|| 31 – 100 kHz / 59 – 61 Hz (VGA Text: 69 – 71 Hz)
Frame synchronous mode: 59 – 61 Hz
|Function||1 upstream, 2 downstream|
|Power Requirements||AC 100 – 120 V, 200 – 240 V: 50 / 60 Hz|
|Maximum Power Consumption||105 W|
|Typical Power Consumption||52 W|
|Power Save Mode||Less than 1.6 W|
|Power Management||DVI DMPM, DisplayPort 1.1a|
|Sensor||Backlight Sensor, Integrated Front Sensor, Presence Sensor, Ambient Light Sensor|
|Features & Functions|
|Digital Uniformity Equalizer||Yes|
|OSD Languages|| English, German, French, Italian, Japanese, Simplified
Chinese, Spanish, Swedish, Traditional Chinese
|Net Weight||10.2 kg|
|Net Weight (Without Stand)||7.5 kg|
|Hole Spacing (VESA Standard)||100 x 100 mm|
|Certifications & Standards (Please contact the EIZO group company or distributor in your country for the latest information.)||CE (Medical Device Directive), EN60601-1, UL60601-1, CSA C22.2 No. 601-1, IEC60601-1, VCCI-B, FCC-B, Canadian ICES-003-B, C-tick, RoHS, China RoHS, WEEE, CCC, GOST-R|
|FDA 510(k) Clearance|| Yes
(for General Radiography)
|Supplied Accessories||AC power cord, signal cable (DVI-D – DVI-D, DisplayPort – DisplayPort), USB cable, Utility Disk (RadiCS LE, ScreenManager Pro for Medical, user’s manual)|
Please note that you must be a registered user to download RadiForce relevant files. If you have not registered, please continue on to our registration page. If you have forgotten your User ID or Password, please send us an e-mail.
|RadiForce RX240 / RX340 (English)||English||2.75 MB|
|ScreenSlicer Ver.1.1.2 Software manual (English)||English||1.75 MB|
|November 14, 2012||The Advantages of Medical LCD Monitors with LED Backlights [PDF]
This document explains the three advantages of medical image display monitors that utilize an LED backlight.
EIZO Quality Control supports Macintosh Computers!
EIZO is the only company with built-in QC support for Macintosh computers and workstations. In addition to supporting MS Windows OS, EIZO QC software supports OS X Mountain Lion (10.8), OS X Mavericks (10.9) and OS X Yosemite (10.10) will continue to support the Macintosh platform in the future. See the calibration kit information below.
EIZO offers the largest selection of manufacturer support video cards. Nvidia, AMD/ATI or Matrox video cards can be ordered with any EIZO diagnostic monitor. Please ask us if you do not see them listed of a particular display.
Calibration Kit – Model RadiCS UX1 . American College of Radiology guidelines still recommends the periodic use of a calibration kit to insure that diagnostic integrity is maintained over the life of the monitor. Some states now require the use and documentation of a calibration kit. Do not confuse this device with the front sensors on most diagnostic medical displays. They are not the same.
What You Get
What You Get:
RadiForce 2MP High Brightness Color Single Head LCD Display bundle with 1x RX240 display and 1x Nvidia Q2000D PCIe x16 video card
