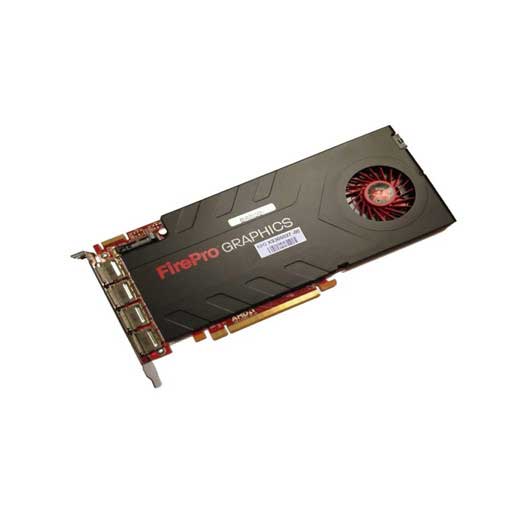

Barco MXRT-7600 3D PCIe 4-head Display Controller – MXRT-7600 / K9306037
The MXRT-7600 is a high-end 3D PCIe display controller featuring the latest AMD FireProTM 3D technology for leading-edge performance, flexibility and reliability. Fitted with 4GB of memory and an ultra-fast GPU, the top-of-the-line MXRT-7500 presents you with unmatched processing power for large medical datasets.The MXRT-7600 supports DirectX, OpenGL, and OpenCL and is compatible with Microsoft Windows® 7.
- Four display outputs
- 4 GB GDDR5 display memory
- Single-wide form factor
- Powered by AMD’s scalable FireProTM workstation GPU
- Display Port (DP) 1.2 video outputs
- Windows® 7 compatible
Call For Price
MASTER DISTRIBUTOR
24X7 SUPPORT
COMPETITIVE PRICING
SAME DAY SHIPPING
VALUABLE CONSULTATION
With the high-performance MXRT-7600, you can drive up to four full resolution displays attached via DisplayPort. As such, the board is perfect for use in 4-head configurations. This ‘all-in-one’ approach saves space on the PC; it simplifies the installation; and it significantly reduces the total cost of ownership.
Ultra-fast data transfers
The MXRT-7600 utilizes PCIe Gen3 technology and is compatible with the DisplayPort 1.2 interface standard, assuring ultra-fast loading of medical images and large datasets.
Flexible projection configurations
The MXRT-7600 display controller is available with Barco’s Conference CloneViewTM software, which enables accurate projection of medical images onto a large-screen display.
The software tool ensures effortless cloning, scaling, zooming and panning of medical images on the large screen, making Barco displays and controllers perfectly suited for use in teaching hospitals, auditoriums and (tele)conference rooms.
Specification
| Bus compatibility | PCIe Gen3 x16 |
|---|---|
| Power consumption | 140 W |
| Form factor | 242mm (L) x 98.53mm (H) single PCIe slot wide |
| Operating system | Windows 7 – 32/64-bit |
| Platforms | Intel® and AMD architectures |
| Power Connector | One 2×3 power connector |
| Graphics accelerator | ATI FirePro TM |
| Display memory | 4 GB GDDR5 |
| Memory interface | 256-bit |
| Memory bandwidth | 154 GB/s |
| Pixel depth | 32-bit pixels (supports 8-bit and 10-bit per color channel) |
| Electrical standard | DisplayPort (DP) complying to v1.2 |
| Direct3D hardware support | Microsoft® DirectX v11.1, Vertex Shader 5.0, Pixel Shader 5.0 |
| OpenGL hardware support | OpenGL 4.2 |
| OpenCL hardware support | OpenCL 1.2 |
| Connectors | 4-DisplayPort (DP) |
| Supported resolutions | Up to 5.8MP grayscale at full refresh rate (VGA at boot-up) |
| Approvals and compliance | FCC Part 15 Class B, EN 55022 Limit B, EN 55024, UL-60950-1, BMSI CNS, CISPR- 22/24, IEC60950-1, VCCI, CSA C22.2, EU RoHS directive (2002/95/EC), Certificate of Information & Communication Equipment (Republic of Korea) |
| Operating temperature | 0° to 60°C (32° to 140° F) |
| Connectivity | Single-link Display Port (DP) to DVI-I adaptor cable (2 adaptors are included) Dual-Link DisplayPort (DP) to DVI-I adaptor available from Barco; Part Number K9305104 |
